31
VLT
®
Series 3500
Terminal Parameter Function
16 400 Reset Stop Freeze Setup Thermistor External
Reference Select HAND
17 401 Reset Stop Freeze Pulse Pulse Pulse External
Reference 100Hz 1 kHz 10 kHz AUTO
18 402 Start Latched No External
Start Operation AUTO
19 403 Reverse Start No External Latched
Reverse Operation HAND Start Hand
27 404 Coast to Quick DC Reset and Stop
Stop Stop Braking Coast
29 405 Jog Jog Freeze Digital Ref. Ramp Latched
Freeze Reference Select Select Start Hand
32 406 Preset Increase Setup Ext. Setup
Speed Sel Speed Select Select
33 Decrease
Speed

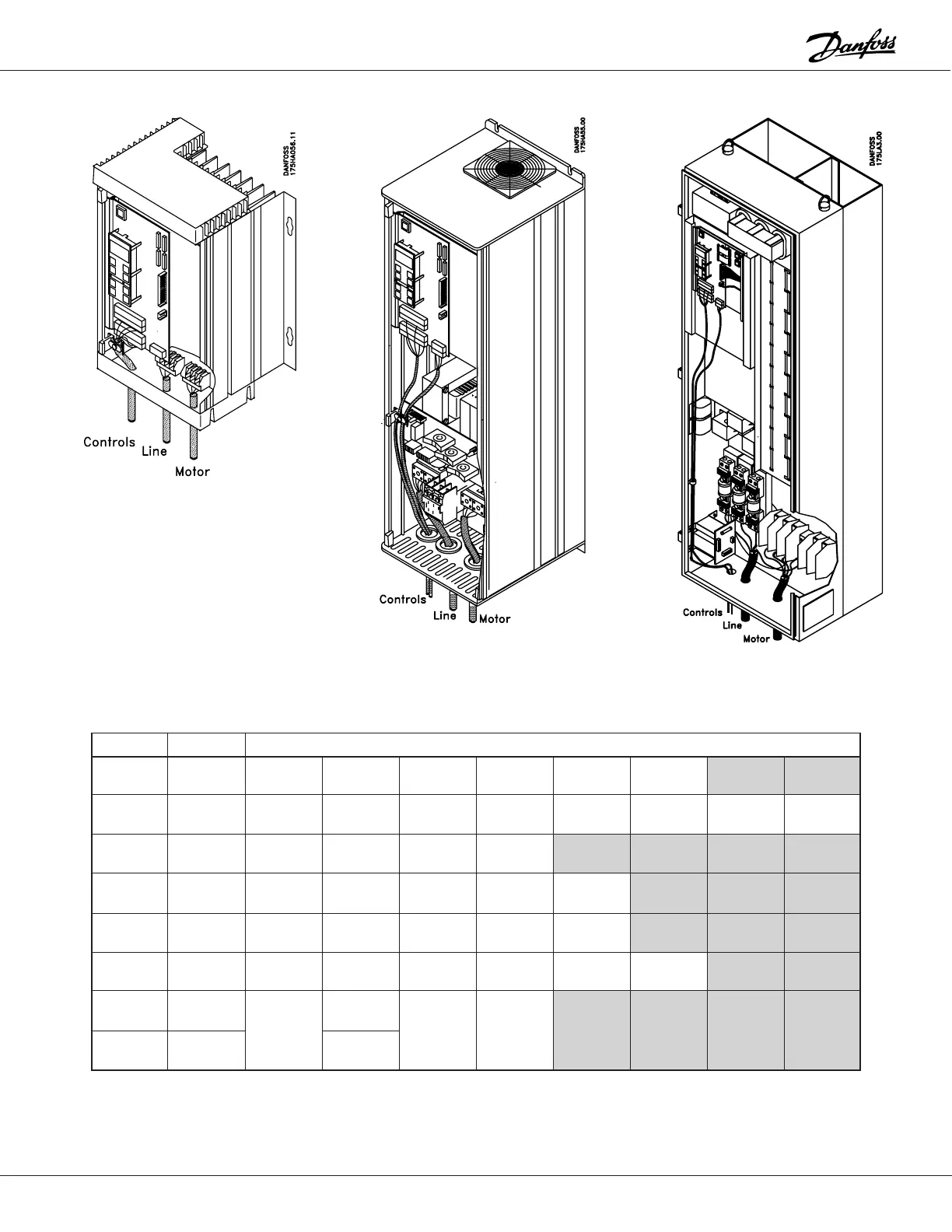

Terminal Block Locations
VLT Type
3502 - 3511 Series, 380 V
3502 - 3504 Series, 208/230 V
3502 - 3508 Series, 460 V
VLT Type
3511 - 3562 Series, 380 - 460 V
3508 - 3532 Series, 208/230 V
VLT Type
3575 - 3800 Series, 380 - 460 V
3542 - 3562 Series, 208/230 V
Programmable Terminal Functions
➔
➔
➔
➔
➔
Bold Type indicates default settings stored in the drive’s read-only factory setup. Because of special application
requirements, these may not have been used in the active set up that was shipped with the drive.
