Danfoss VLT Active Front End AFE 302 - Electrical Installation, Control Terminals

4.4.4 Electrical Installation, Control
Terminals
To connect the cable to the terminal:
1. Strip insulation of 9-10 mm
2.
Insert a screwdriver
1)
in the square hole.
3. Insert the cable in the adjacent circular hole.
4. Remove the screwdriver. The cable is now
mounted to the terminal.
To remove the cable from the terminal:
1.
Insert a screw driver
1)
in the square hole.
2. Pull out the cable.
1)
Max. 0.4 x 2.5 mm

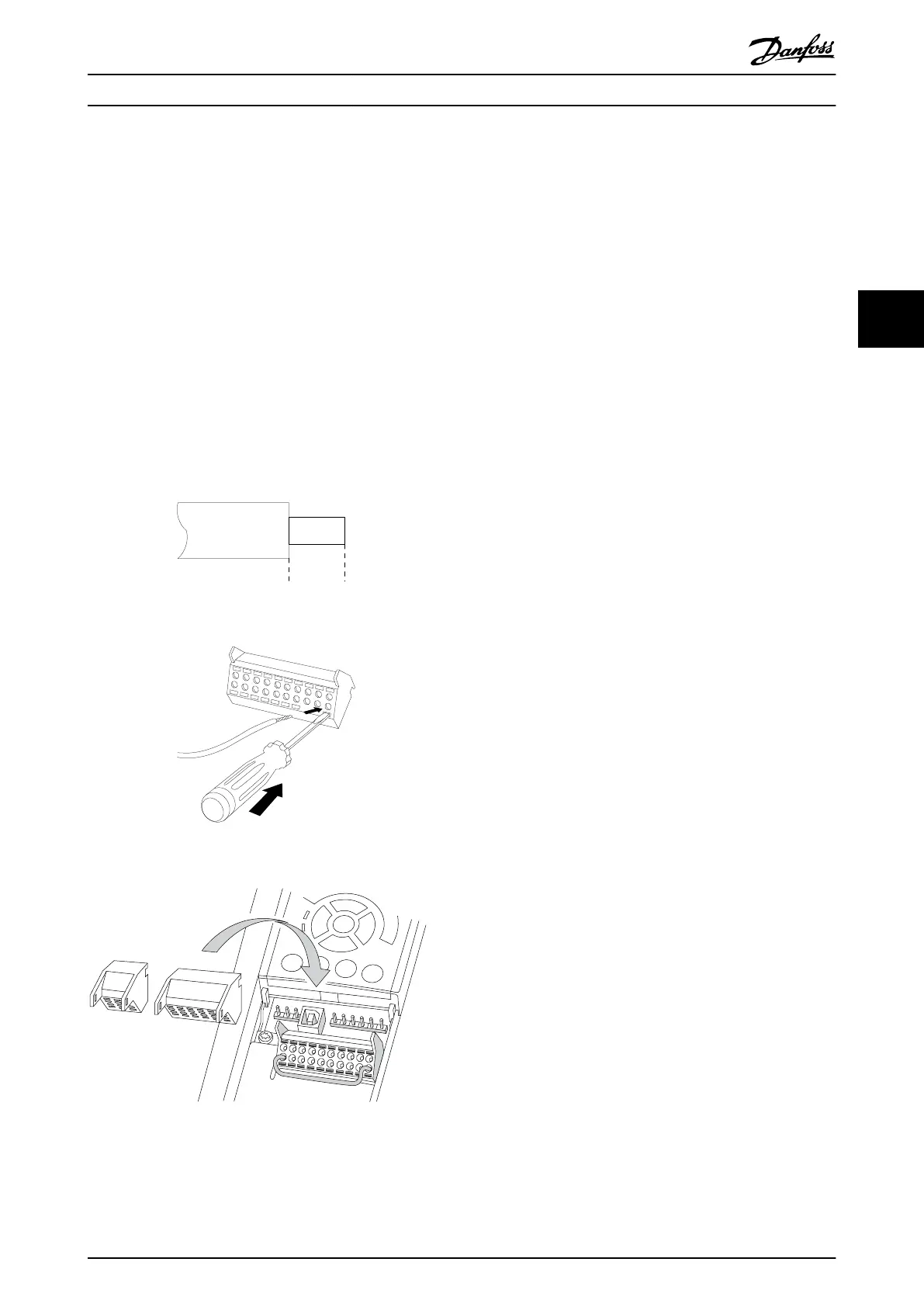

Wiring to Control Terminals
130BA150.10
9 - 10 mm
(0.37 in)
Illustration 4.14 Strip Isolation
130BT312.10
Illustration 4.15 Insert Screwdriver and Cable
130BT306.10
Illustration 4.16 Control Cable Terminals
