1 Serial communication terminals
2 Digital input/output terminals
3 Analog input/output terminals

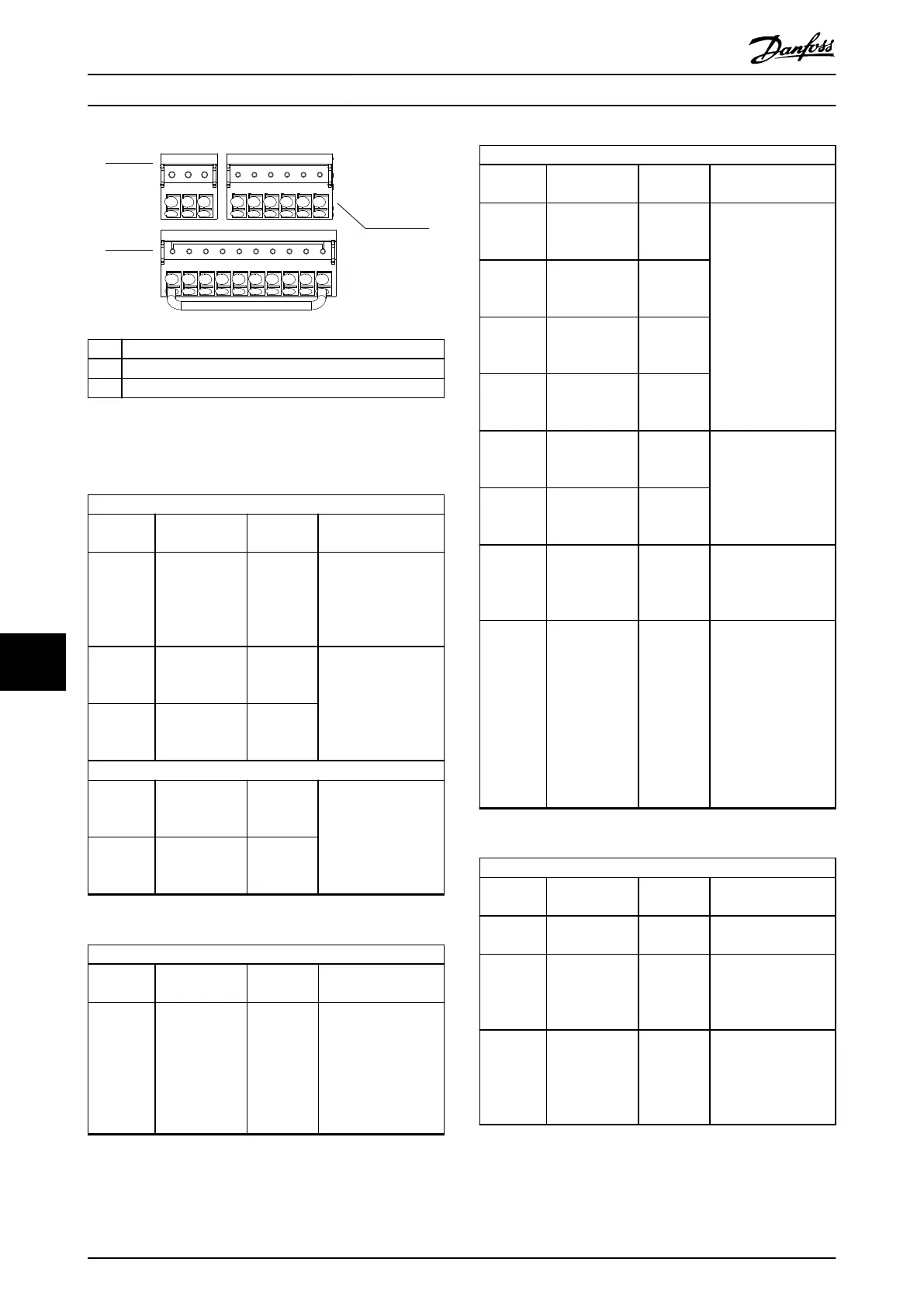

Illustration 10.12 Terminal Numbers Located on the
Connectors
Serial communication terminals
Terminal Parameter Default
setting
Description
61 – – Integrated RC-lter for
cable shield. ONLY for
connecting the shield
if there are EMC
problems.
68 (+) Parameter
group 8-3* FC
Port Settings
– RS485 interface. A
switch (BUS TER.) is
provided on the
control card for bus
termination
resistance.
69 (-) Parameter
group 8-3* FC
Port Settings
–
Relays
01, 02, 03 Parameter 5-40
Function Relay
[0]
[0] No
operation
Form C relay output.
For AC or DC voltage
and resistive or
inductive loads.
04, 05, 06 Parameter 5-40
Function Relay
[1]
[0] No
operation
Table 10.7 Serial Communication Terminal Descriptions
Digital input/output terminals
Terminal Parameter Default
setting
Description
12, 13 – +24 V DC 24 V DC supply
voltage for digital
inputs and external
transducers.
Maximum output
current 200 mA for all
24 V loads.
Digital input/output terminals
Terminal Parameter Default
setting
Description
18 Parameter 5-10
Terminal 18
Digital Input
[8] Start Digital inputs.
19 Parameter 5-11
Terminal 19
Digital Input
[10]
Reversing
32 Parameter 5-14
Terminal 32
Digital Input
[0] No
operation
33 Parameter 5-15
Terminal 33
Digital Input
[0] No
operation
27 Parameter 5-12
Terminal 27
Digital Input
[2] Coast
inverse
For digital input or
output. Default
setting is input.
29 Parameter 5-13
Terminal 29
Digital Input
[14] JOG
20 – – Common for digital
inputs and 0 V
potential for 24 V
supply.
37 – STO When not using the
optional STO feature,
a jumper wire is
required between
terminal 12 (or 13)
and terminal 37. This
set-up allows the
drive to operate with
factory default
programming values.
Table 10.8 Digital Input/Output Terminal Descriptions
Analog input/output terminals
Terminal Parameter Default
setting
Description
39 – – Common for analog
output.
42 Parameter 6-50
Terminal 42
Output
[0] No
operation
Programmable analog
output. 0–20 mA or
4–20 mA at a
maximum of 500 Ω.
50 – +10 V DC 10 V DC analog
supply voltage for
potentiometer or
thermistor. 15 mA
maximum.
Electrical Installation Con...
VLT
®
HVAC Drive FC 102
174 Danfoss A/S © 11/2017 All rights reserved. MG16C302
1010
