Danfoss vlt aqua Instruction

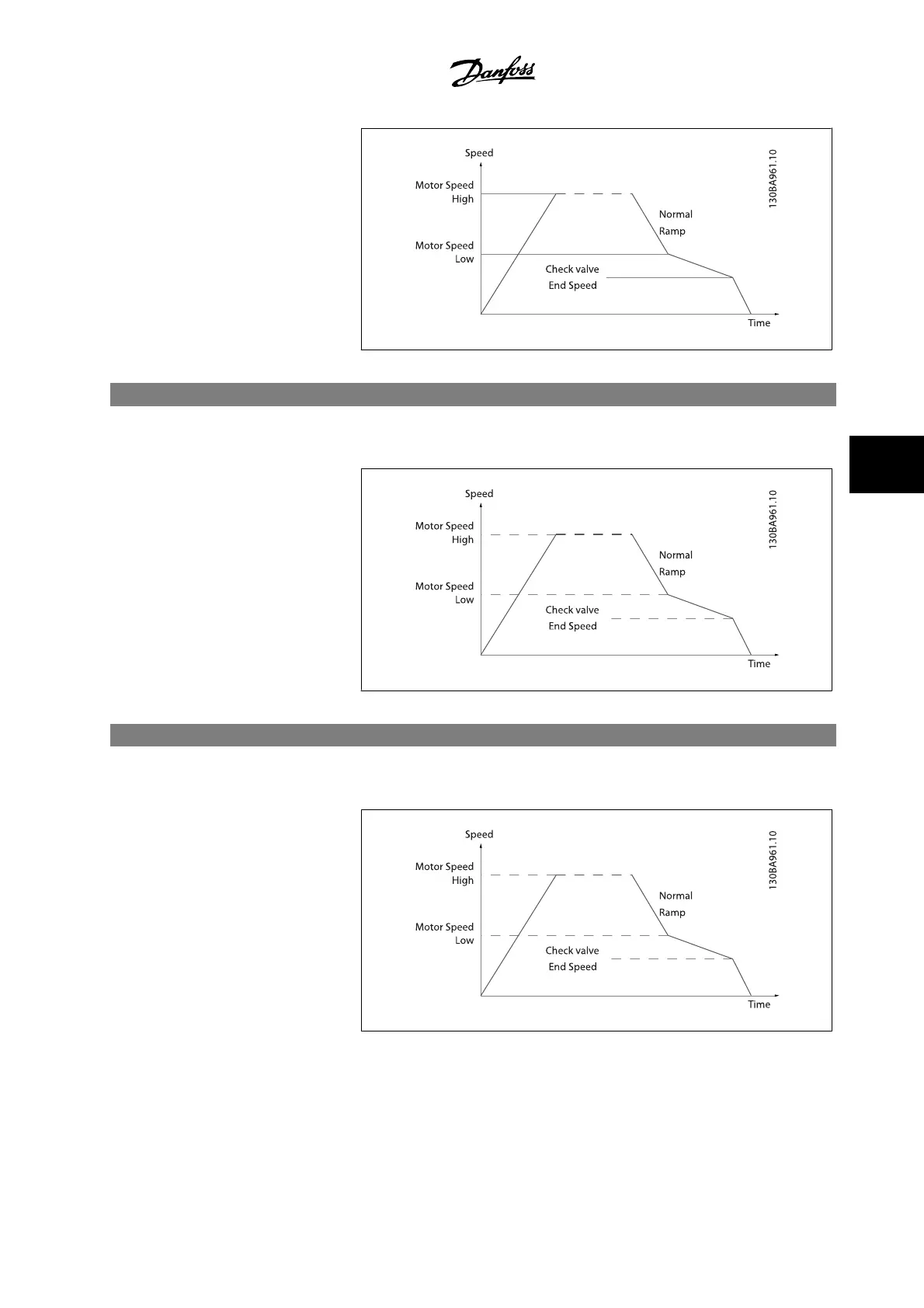

3-86 Check Valve Ramp End Speed [RPM]
Range: Function:
0 [RPM]* [0 – Motor Speed Low Limit [RPM]] Set the speed in [RPM] below Motor Speed Low Limit where the Check Valve is expected to be closed
and the Check Valve no longer shall be active.
3-87 Check Valve Ramp End Speed [Hz]
Range: Function:
0 [Hz]* [0 – Motor Speed Low Limit [Hz]] Set the speed in [Hz] below Motor Speed Low Limit where the Check Valve Ramp will no longer be
active.
VLT AQUA Low Harmonic Drive Instruction
Manual
6 How to Program the Low Harmonic Drive
MG.20.T1.22 - VLT
®
is a registered Danfoss trademark 6-19
6

Danfoss vlt aqua Specifications

General

Supply Voltage	200-240V, 380-500V, 525-600V
Enclosure	IP20
Features	Energy optimization
Approvals	CE, UL, cUL
Input Voltage Range	200-240V, 380-500V, 525-600V
Output Voltage Range	0 to supply voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Ground fault
Communication Interfaces	PROFIBUS
Cooling Method	Air-cooled
