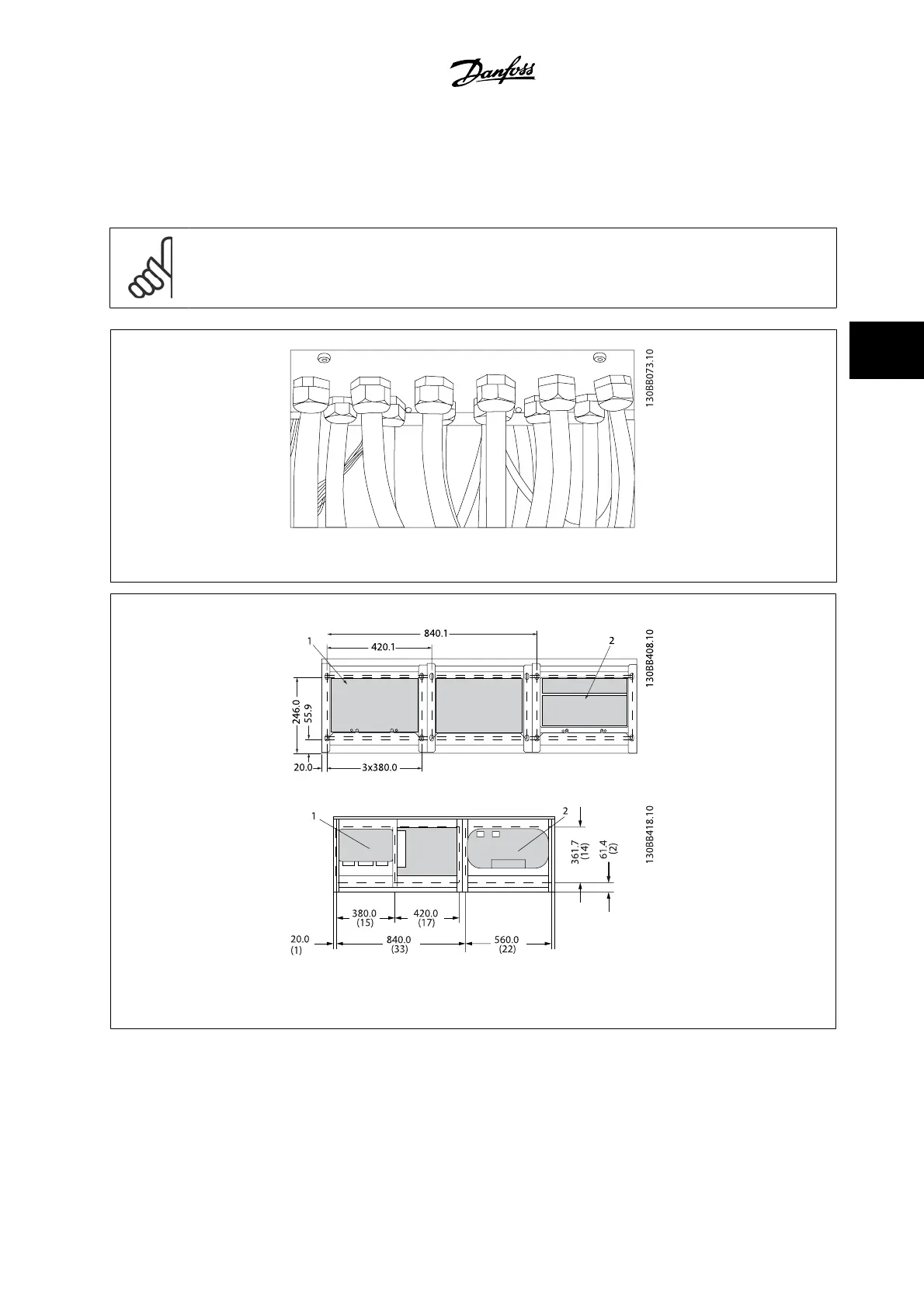

4.3.9 Connector/Conduit Entry - IP21 (NEMA 1) and IP54 (NEMA12)
Cables are connected through the gland plate from the bottom. Remove the plate and plan where to place the entry for the connectors or conduits.
Prepare holes in the marked area on the drawing.
NOTE!
The connector plate must be fitted to the adjustable frequency drive to ensure the specified protection degree, as well as ensuring
proper cooling of the unit. If the connector plate is not mounted, the adjustable frequency drive may trip on Alarm 69, Pwr. Card Temp
Figure 4.24: Example of proper installation of the gland plate.
Frame size D11
Frame size E7
Cable entries viewed from the bottom of the adjustable frequency drive
1) Line cable connection
2) Motor cable connection
VLT AQUA Low Harmonic Drive Instruction
Manual
4 How to Install
MG.20.T1.22 - VLT
®
is a registered Danfoss trademark 4-27
