Danfoss vlt aqua Instruction

Frame size F17

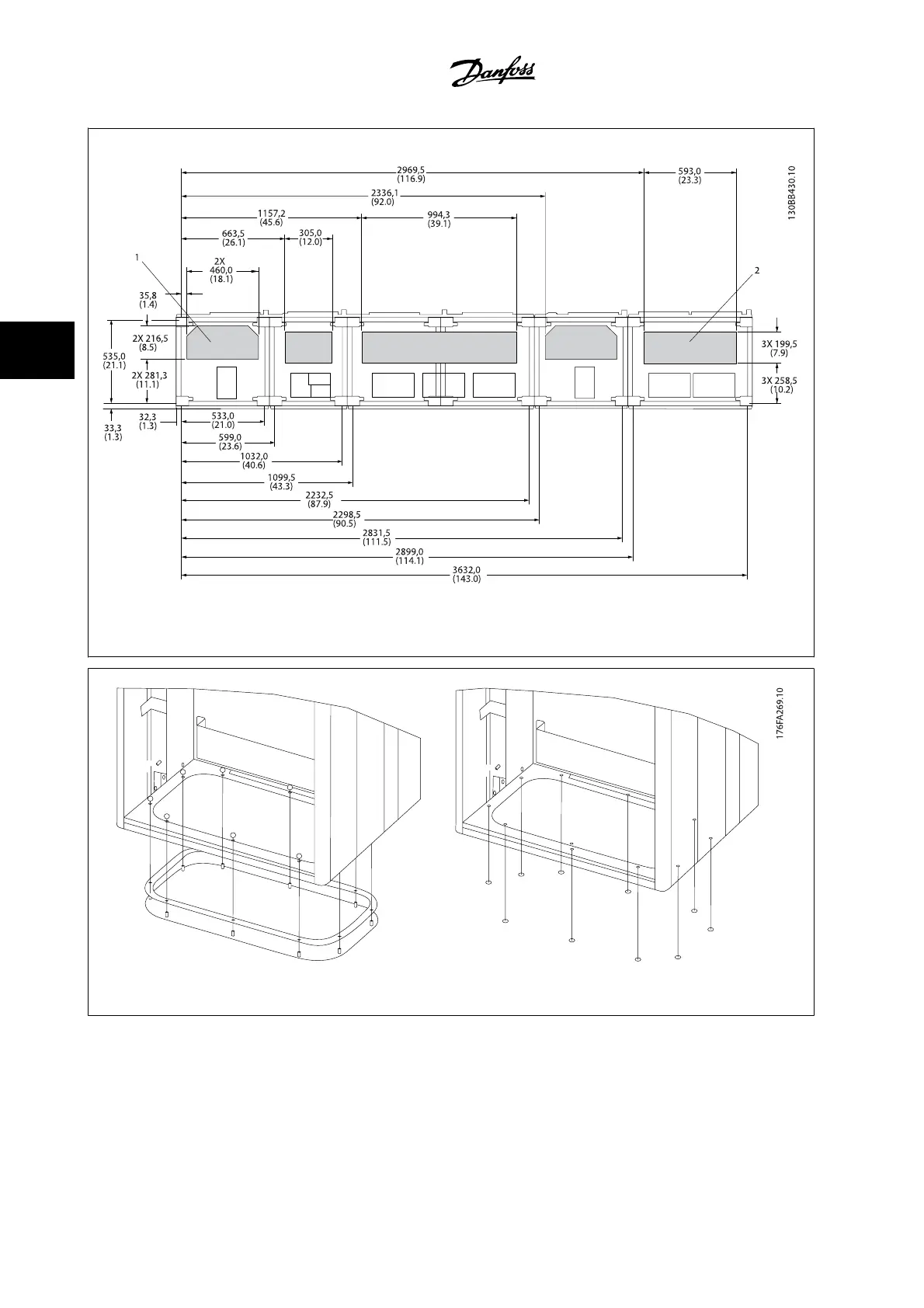

F17: Cable entries viewed from the bottom of the adjustable frequency drive
1) Line cable connection
2) Motor cable connection
Figure 4.25: Mounting of bottom plate, E7
The bottom plate of the E frame can be mounted from either inside or outside of the enclosure, allowing flexibility in the installation process, i.e., if
mounted from the bottom the connectors and cables can be mounted before the adjustable frequency drive is placed on the pedestal.
4 How to Install
VLT AQUA Low Harmonic Drive Instruction
Manual
4-28 MG.20.T1.22 - VLT
®
is a registered Danfoss trademark
4
