4.3.10 IP21 Drip Shield Installation (Frame size D)
To comply with the IP21 rating, a separate drip shield is to be
installed as explained below:
Remove the two front screws.
Insert the drip shield and replace the screws.
Torque the screws to 5.6 Nm (50 in-lbs).
NOTE!
Drip shield is necessary on both filter and drive section.

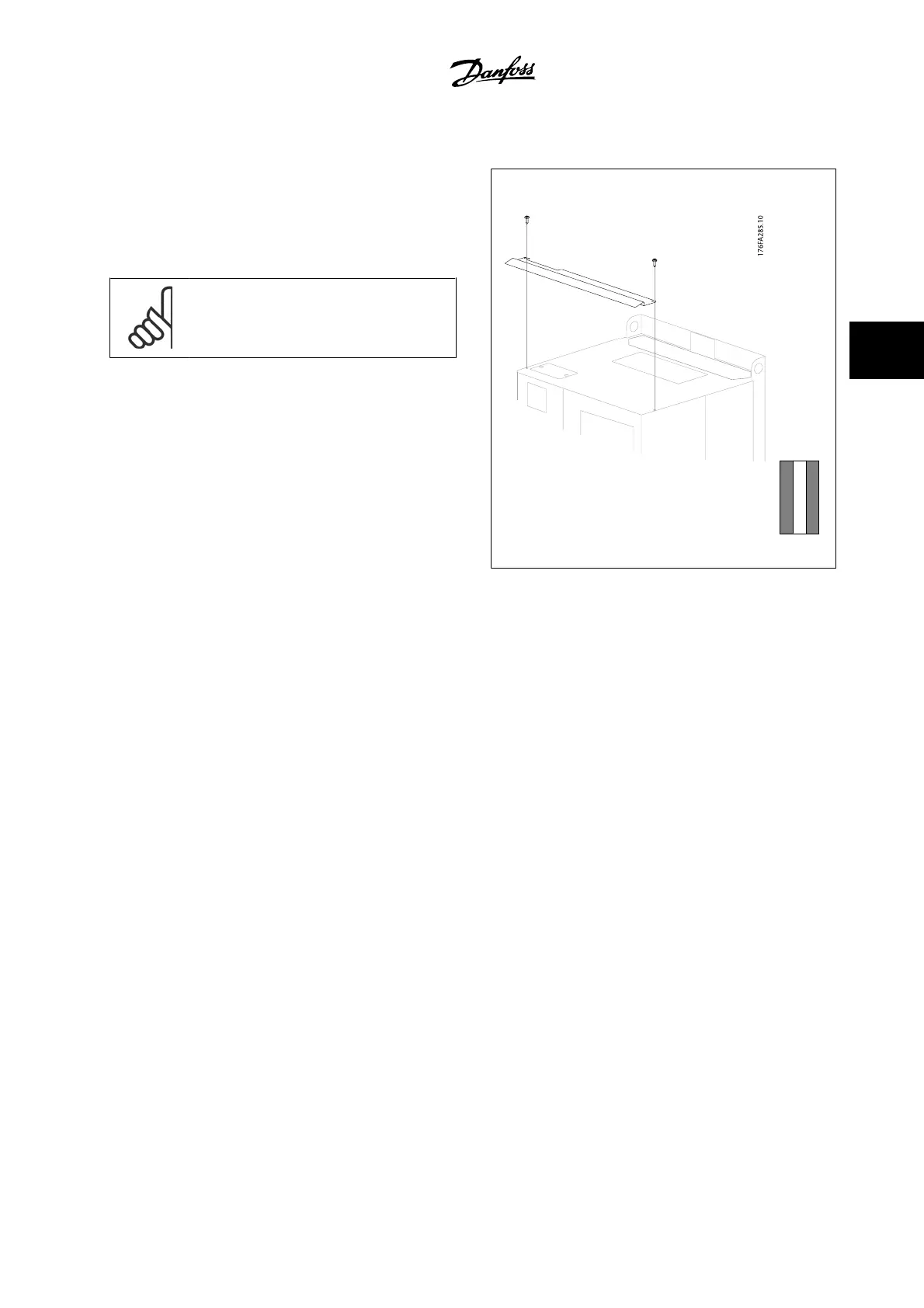

Figure 4.26: Install the drip shield.
VLT AQUA Low Harmonic Drive Instruction
Manual
4 How to Install
MG.20.T1.22 - VLT
®
is a registered Danfoss trademark
4-29
