Danfoss vlt aqua Instruction

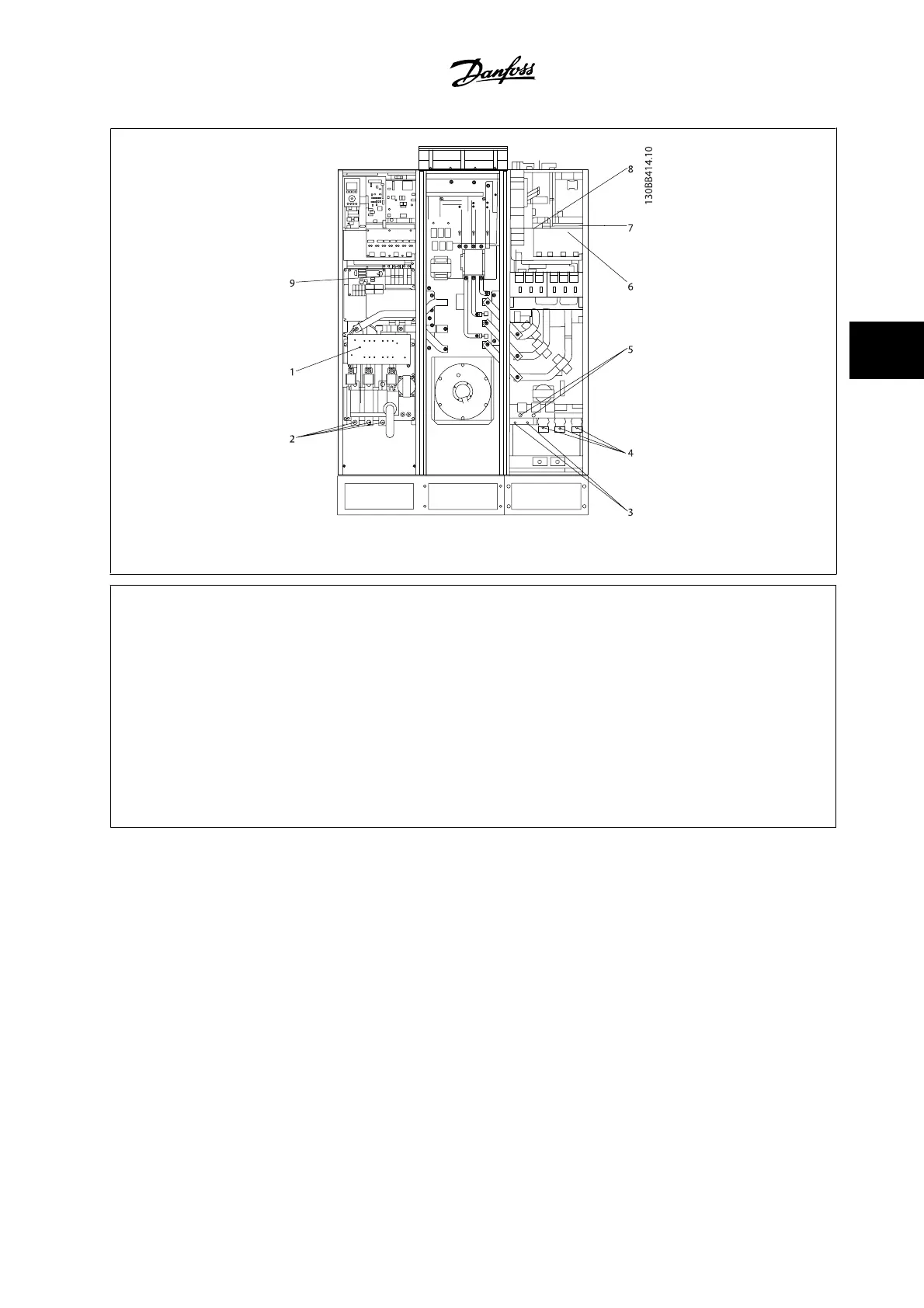

Figure 4.27: Frame size D11
1) RFI 5) Load sharing option
2) Line -DC +DC
RS T 8889
L1 L2 L3 6) AUX Fan
3) Brake option 100 101 102 103
-R +R L1 L2 L1 L2
81 82 7) Temp Switch
4) Motor 106 104 105
U V W 8) AUX Relay
96 97 98 01 02 03
T1 T2 T3 04 05 06
9) Fan/SMPS fuse
VLT AQUA Low Harmonic Drive Instruction
Manual
4 How to Install
MG.20.T1.22 - VLT
®
is a registered Danfoss trademark 4-35
4

Danfoss vlt aqua Specifications

General

Supply Voltage	200-240V, 380-500V, 525-600V
Enclosure	IP20
Features	Energy optimization
Approvals	CE, UL, cUL
Input Voltage Range	200-240V, 380-500V, 525-600V
Output Voltage Range	0 to supply voltage
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short circuit, Ground fault
Communication Interfaces	PROFIBUS
Cooling Method	Air-cooled
