6.1.2 Quick Menu Mode
The GLCP provides access to all parameters listed under the Quick Menus. To set parameters using the [Quick Menu] button:
Pressing [Quick Menu] the list indicates the different areas contained in the quick menu.
Efficient parameter set-up for water applications
The parameters can easily be set up for the vast majority of the water and wastewater applications only by using the [Quick Menu].
The best way to set parameters using the [Quick Menu] is by following the steps below:
1. Press [Quick Set-up] for selecting basic motor settings, ramp times, etc.
2. Press [Function Set-ups] for setting up the required functionality of the adjustable frequency drive - if not already covered by the settings in
[Quick Set-up].
3. Choose between
General Settings, Open-loop Settings
and
Closed-loop Settings
.
It is recommended to do the set-up in the order listed.

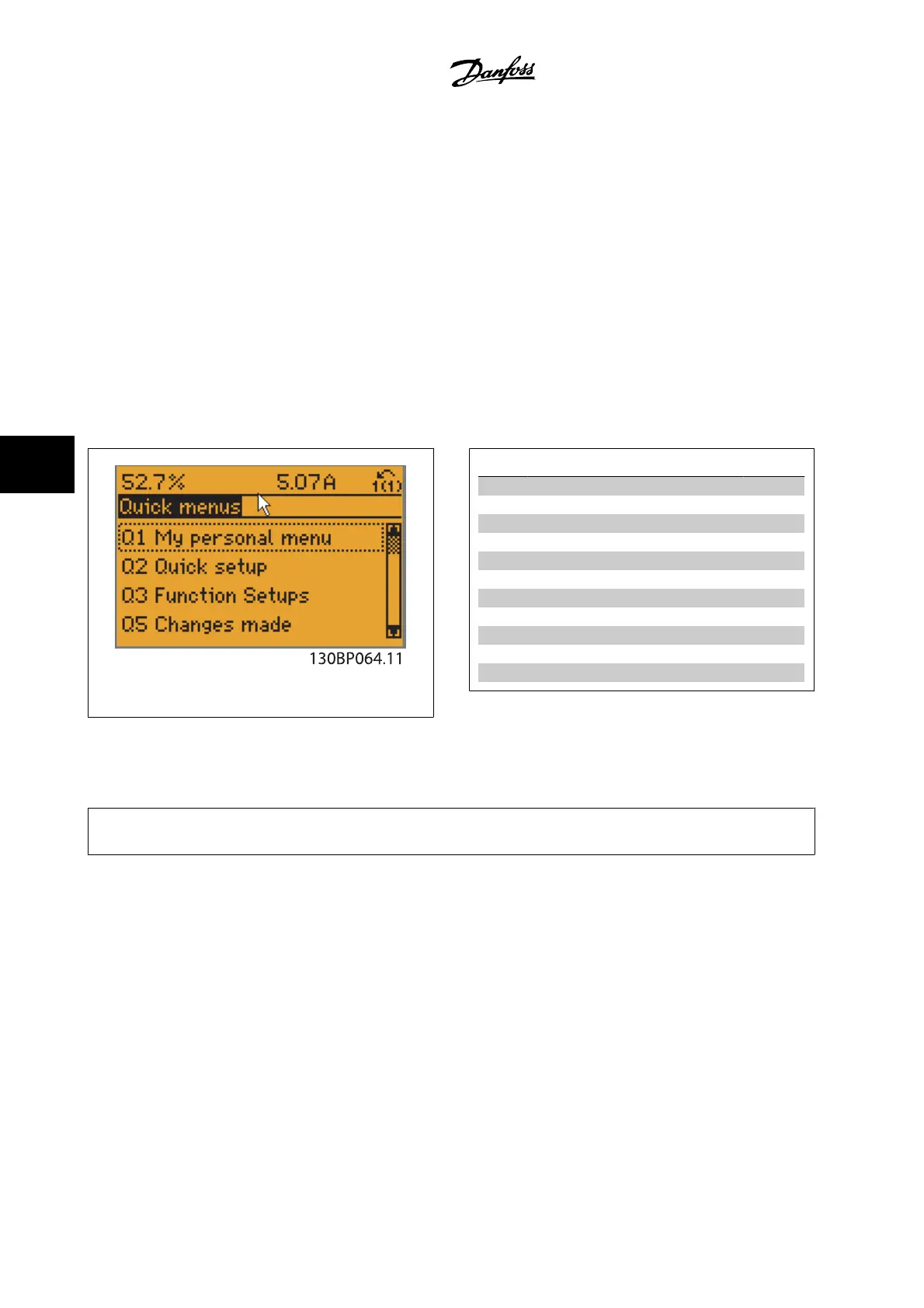

Figure 6.1: Quick Menu view.
Par. Designation [Units]
0-01 Language
1-20 Motor Power [kW]
1-22 Motor Voltage [V]
1-23 Motor Frequency [Hz]
1-24 Motor Current [A]
1-25 Motor Nominal Speed [RPM]
3-41 Ramp 1 Ramp-up Time [s]
3-42 Ramp 1 Ramp-down Time [s]
4-11 Motor Speed Low Limit [RPM]
4-13 Motor Speed High Limit [RPM]
1-29 Automatic Motor Adaptation (AMA)
Table 6.2: Quick Set-up parameters. Please see section
Commonly Used
Parameters - Explanations
If
No Operation
is selected in terminal 27, no connection to +24 V on terminal 27 is necessary to enable start.
If
Coast Inverse
(factory default value) is selected in Terminal 27, a connection to +24V is necessary to enable start.
NOTE!
For detailed parameter descriptions, please see the following section on
Commonly Used Parameters - Explanations
.
6 How to Program the Low Harmonic Drive
VLT AQUA Low Harmonic Drive Instruction
Manual
6-2
MG.20.T1.22 - VLT
®
is a registered Danfoss trademark
6
