[85] SL digital output F See par. 13-52 ‘Smart Logic Control Action’. Output F is low on Smart Logic Action [37]. Output F
is high on Smart Logic Action [43].
[120] Local ref active Output is high when par. 3-13 Reference Site = [2] Local or when par. 3-13 Reference Site = [0]
Linked to hand auto at the same time as the LCP is in Hand on mode.
Reference site set in par. 3-13 Local reference
active [120]
Remote reference
active [121]
Reference site: Local par. 3-13 [2] 1 0
Reference site: Remote par. 3-13 [1] 0 1
Reference site: Linked to Hand/ Auto
Hand 1 0
Hand -> off 1 0
Auto -> off 0 0
Auto 0 1
[121] Remote ref active Output is high when par. 3-13
Reference Site
= Remote [1] or Linked to hand/auto [0] while the
LCP is in [Auto on] mode. See above.
[122] No alarm Output is high when no alarm is present.
[123] Start command activ Output is high when the Start command high (i.e. via digital input, bus connection or [Hand on] or
[Auto on]), and a Stop has been last command.
[124] Running reverse Output is high when the frequency converter is running counter clockwise (the logical product of
the status bits ‘running’ AND ‘reverse’).
[125] Drive in hand mode Output is high when the frequency converter is in Hand on mode (as indicated by the LED light
above [Hand on]).
[126] Drive in auto mode Output is high when the frequency converter is in ‘Auto’ mode (as indicated by LED on above [Auto
On]).

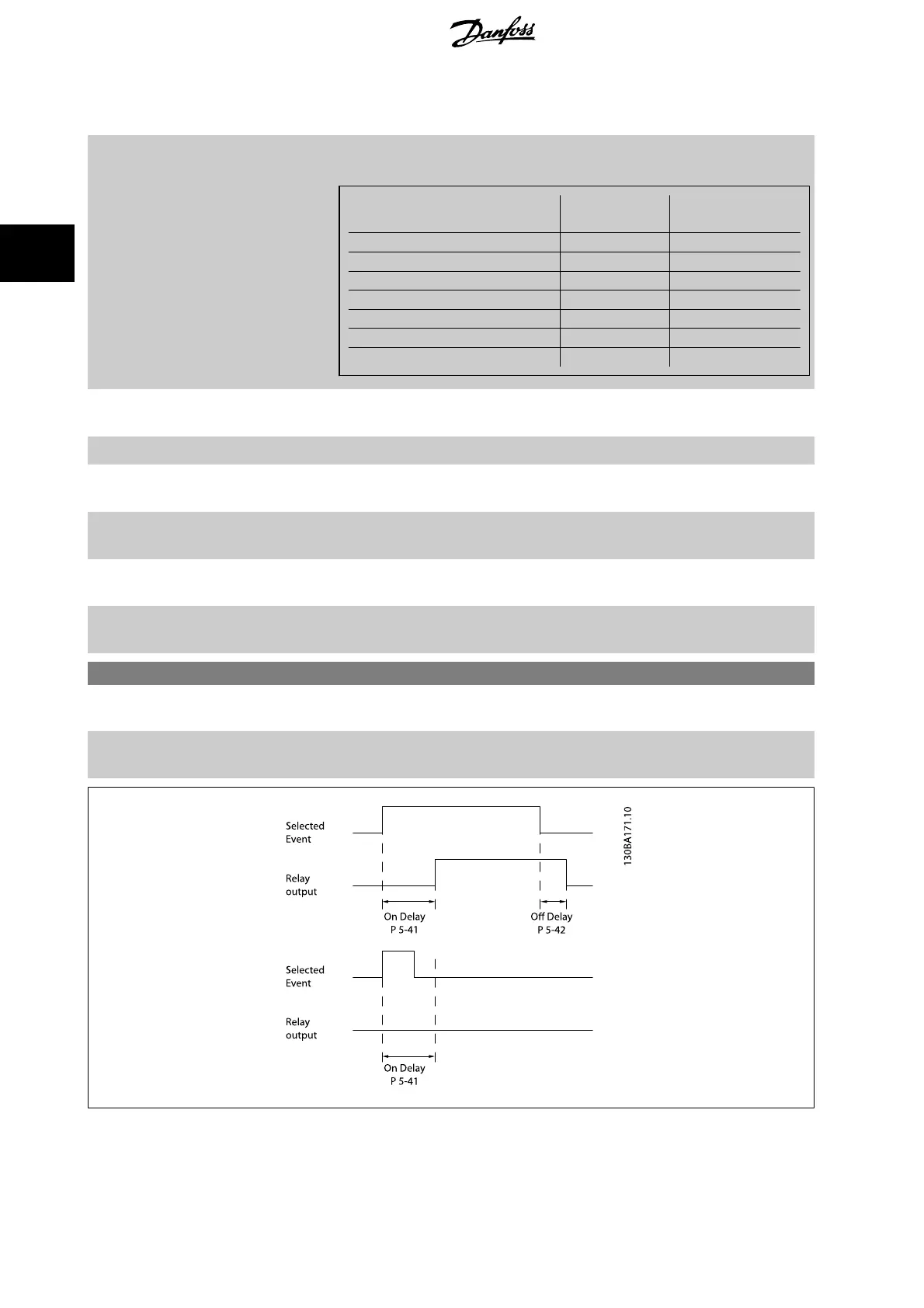

5-41 On Delay, Relay
Array [9], (Relay 1 [0], Relay 2 [1], Relay 3 [2], Relay 4 [3], Relay 5 [4], Relay 6 [5], Relay 7 [6], Relay 8 [7], Relay 9 [8])
Range: Function:
0.01 s* [0.01 - 600.00 s] Enter the delay of the relay cut-in time. Select one of available mechanical relays and MCB 105 in
an array function. See par. 5-40
Function Relay
. Relay 3-6 are included in MCB 113.
3 Parameter descriptions FC 300 Programming Guide
108
MG.33.M8.02 - VLT
®
is a registered Danfoss trademark
3
