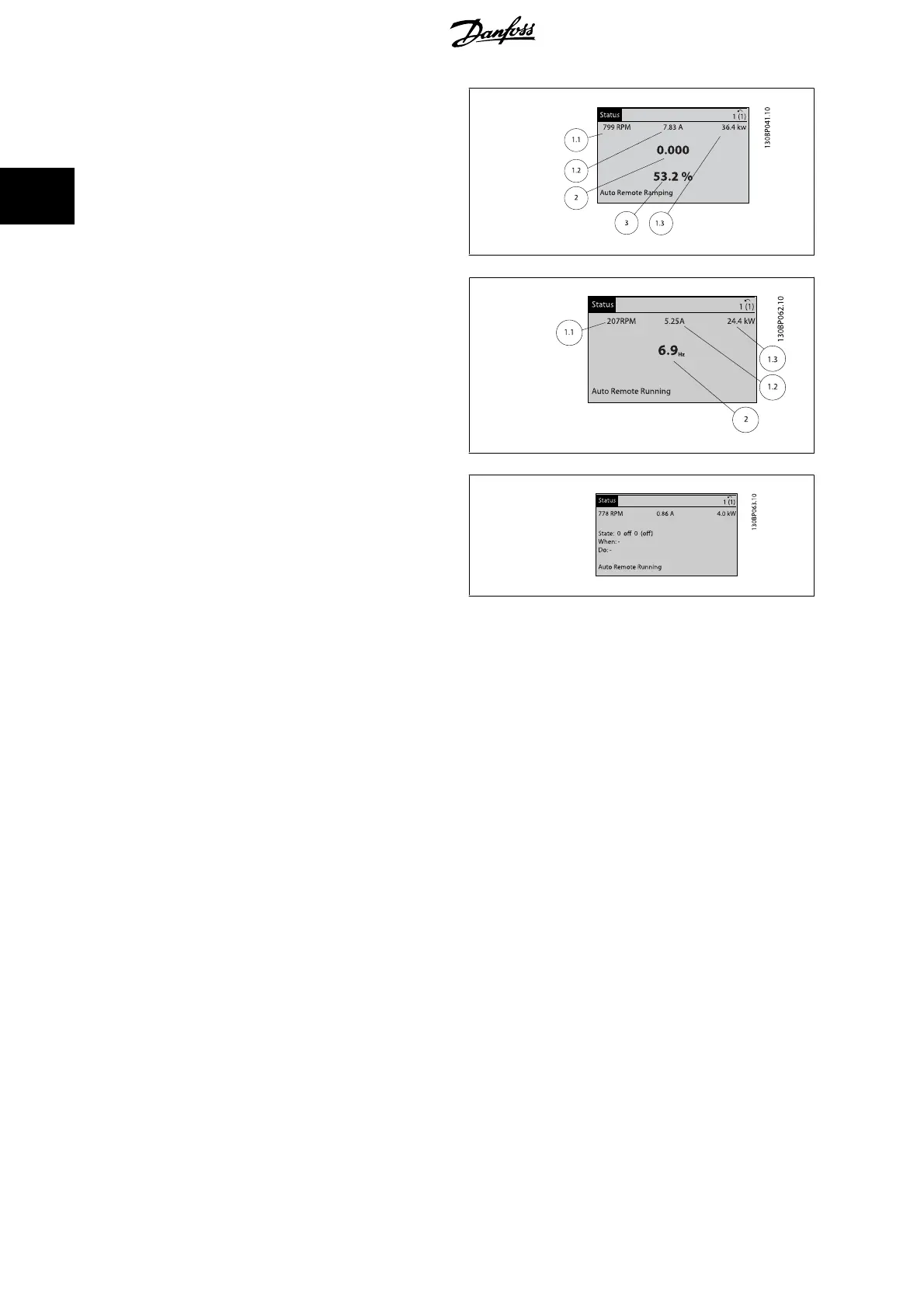

Status screen I:
This read-out state is standard after start-up or initialization.
Use [INFO] to obtain information about the measurement links to the
displayed operating variables (1.1, 1.2, 1.3, 2 and 3).
See the operating variables shown in the screen in this illustration.
Status screen II:
See the operating variables (1.1, 1.2, 1.3 and 2) shown in the screen in
this illustration.
In the example, Speed, Motor current, Motor power and Frequency are
selected as variables in the first and second.
Status screen III:
This state displays the event and action of the Smart Logic Control. For
further information, see section
Smart Logic Control .
2.1.6 Parameter Set-Up
The frequency converter can be used for practically all assignments, which is why the number of parameters is quite large. The frequency converter offers
a choice between two programming modes - a Main Menu and a Quick Menu mode.
The former provides access to all parameters. The latter takes the user through a few parameters making it possible to start operating the frequency
converter.
Regardless of the mode of programming, you can change a parameter both in the Main Menu mode and in the Quick Menu mode.
2 How to Programme FC 300 Programming Guide
20 MG.33.M8.02 - VLT
®
is a registered Danfoss trademark
