2.1.17 How to Programme on the Numerical Local Control Panel
The following instructions are valid for the Numerical LCP (LCP 101).

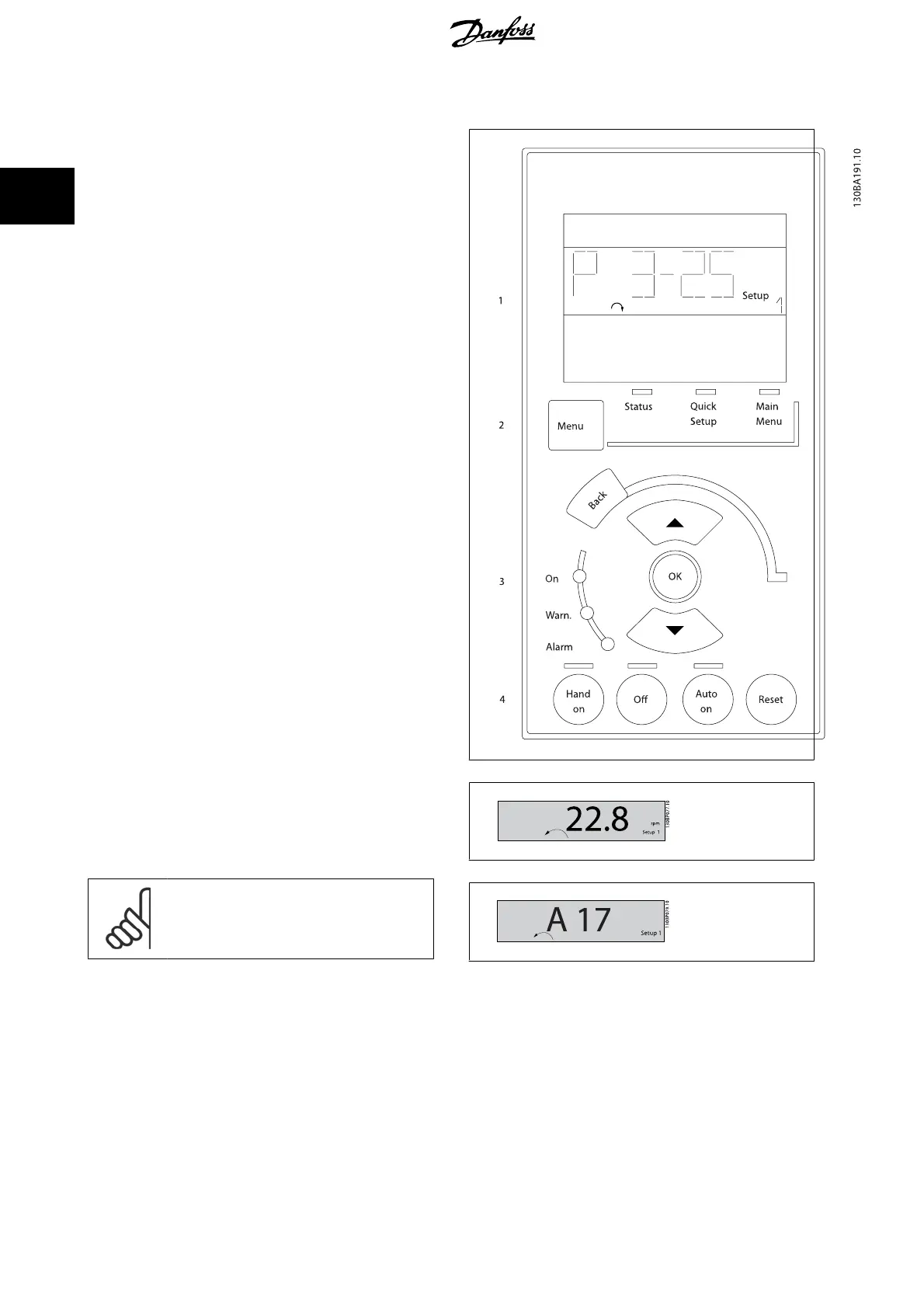

The control panel is divided into four functional groups:
1. Numerical display.
2. Menu keys and indicator lights - changing parameters and
switching between display functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Display line: Status messages displaying icons and numeric val-
ue.
Indicator lights (LEDs):
• Green LED/On: Indicates if control section is on.
• Yellow LED/Wrn.: Indicates a warning.
• Flashing red LED/Alarm: Indicates an alarm.
LCP keys
[Menu] Select one of the following modes:
•Status
•Quick Setup
• Main Menu
Status Mode: Displays the status of the frequency converter or the mo-
tor.
If an alarm occurs the NLCP automatically switches to status mode.
A number of alarms can be displayed.
NB!
Parameter copy is not possible with LCP 101 Numerical
Local Control Panel.
2 How to Programme FC 300 Programming Guide
26 MG.33.M8.02 - VLT
®
is a registered Danfoss trademark
2
