Parameter 3-09 On Target Time
Table 192: Parameter 3-09 On Target Time
3-09 On Target Time
Default value: 1 ms
Parameter type: Range, 0 - 60000 ms
Setup: All setups
Conversion index: -3
Data type: Uint16
Change during operation: True
N O T I C E
This parameter is only available with software version 48.XX
Enter the time for evaluating the on-target window, see also parameter 3-08 On Target Window.
5.4.2 3-1* References
Select the preset reference(s). Select Preset ref. bit 0/1/2 [16], [17], or [18] for the corresponding digital inputs in parameter group
5-1* Digital Inputs.
Parameter 3-10 Preset Reference
Table 193: Parameter 3-10 Preset Reference
3-10 Preset Reference
Default value: 0%
Parameter type: Range, -100 - 100%, Array [8]
Setup: All setups
Conversion index: -2
Data type: Int16
Change during operation: True
Enter up to 8 different preset references (0–7) in this parameter, using array programming. The preset reference is stated as a per-
centage of the value Ref
MAX
(parameter 3-03 Maximum Reference). If a Ref
MIN
different from 0 (parameter 3-02 Minimum Reference) is
programmed, the preset reference is calculated as a percentage of the full reference range, that is on the basis of the difference
between Ref
MAX
and Ref
MIN
. Afterwards, the value is added to Ref
MIN
. When using preset references, select preset reference bit 0/1/2
[16], [17] or [18] for the corresponding digital inputs in parameter group 5-1* Digital Inputs.
[P 5-13=Preset ref. bit 0]
Preset
[P 5-14=Preset ref. bit 1]
[P 5-15=Preset ref. bit 2]
10101010
76543210
29
12
(+24V)
11001100
32
11110000
33
e30ba149.11

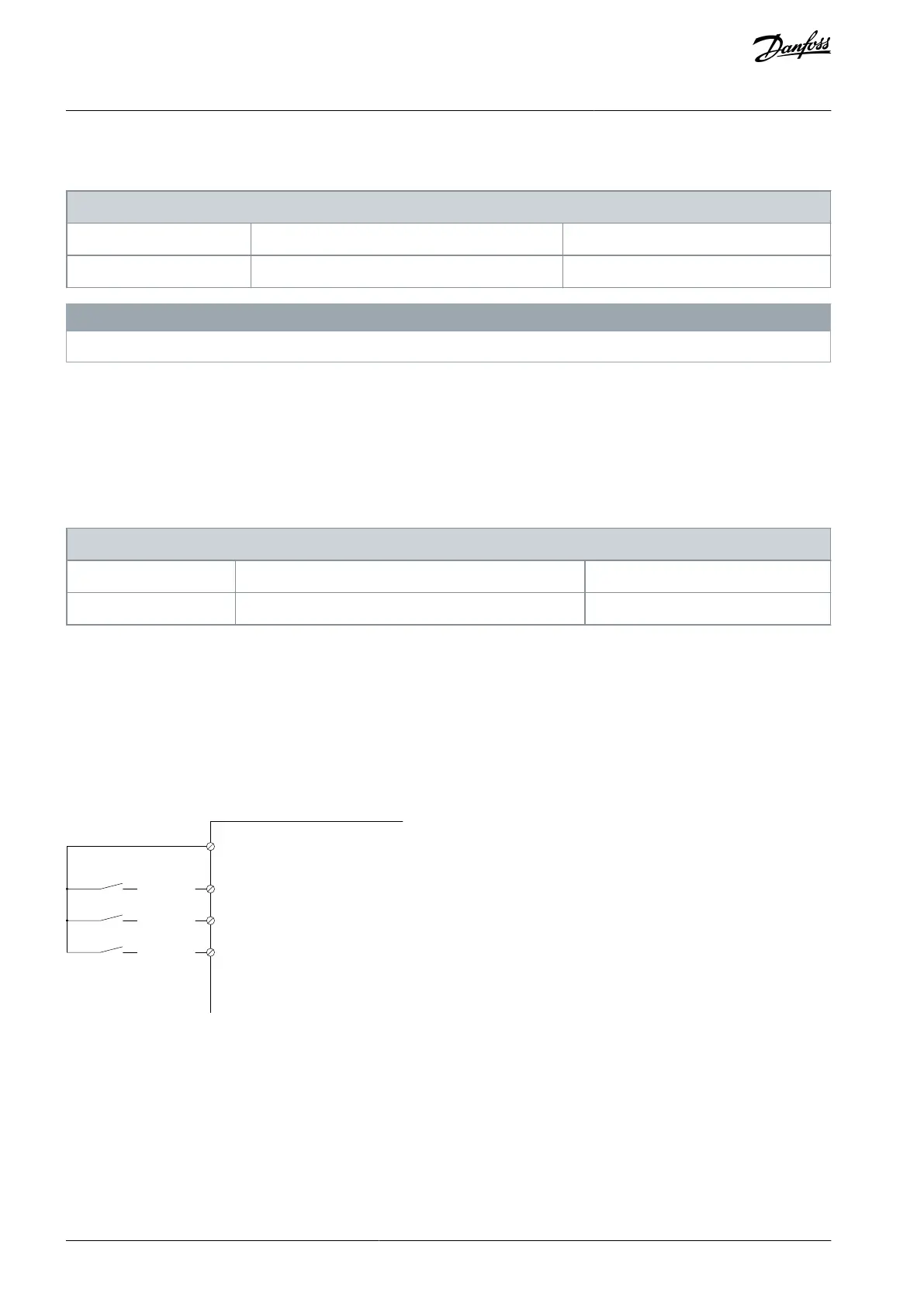

Illustration 47: Preset Reference
AU275636650261en-000101 / 130R0334128 | Danfoss A/S © 2022.12
Parameter Descriptions
VLT AutomationDrive FC 301/302
Programming Guide
