Danfoss VLT AutomationDrive FC 301 Programming Guide

. . .
. . .
. . .
. . .
Par. 13-43
Logic Rule Operator 2
Par. 13-41
Logic Rule Operator 1
Par. 13-40
Logic Rule Boolean 1
Par. 13-42
Logic Rule Boolean 2
Par. 13-44
Logic Rule Boolean 3
e30bb673.10

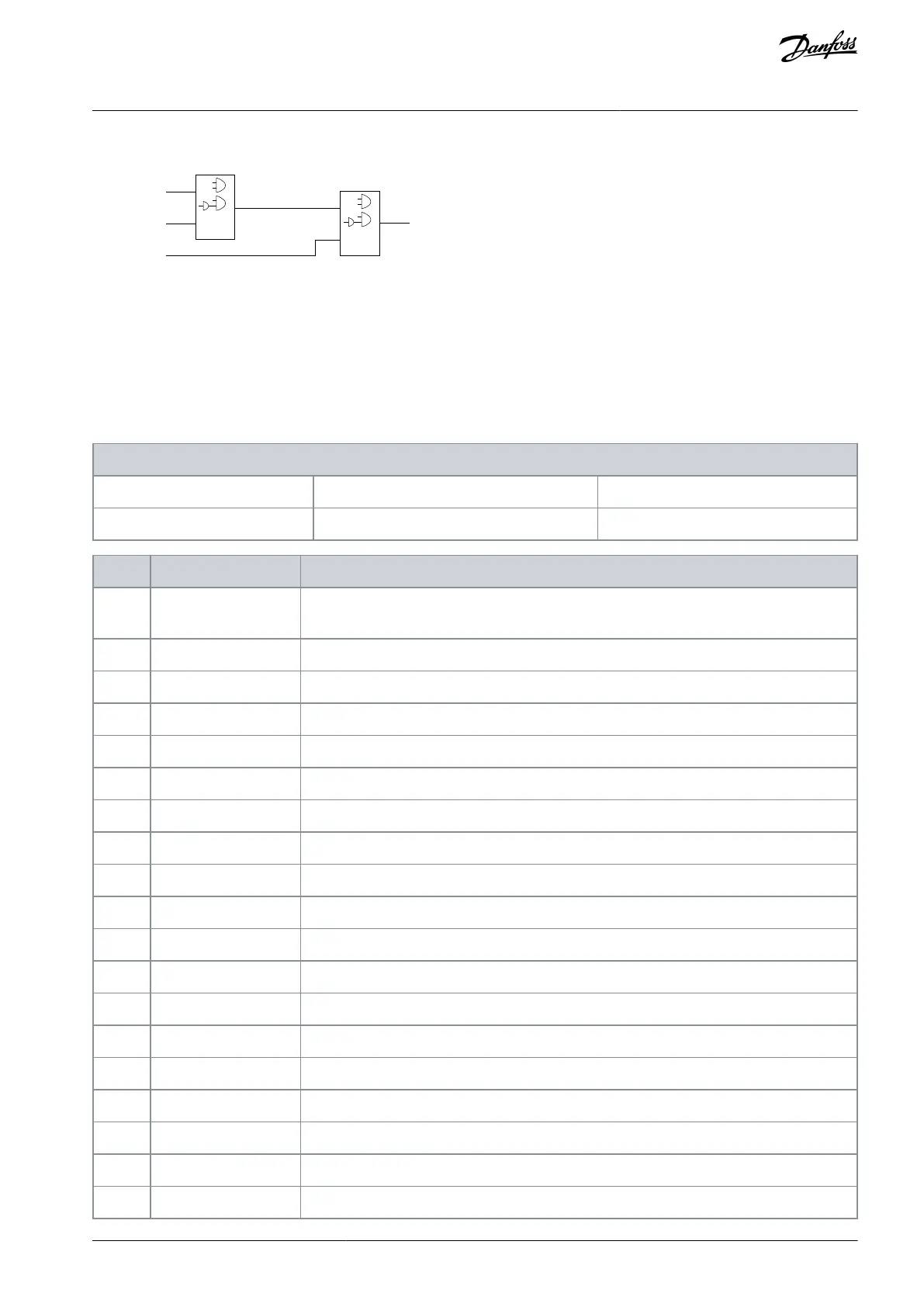

Illustration 82: Logic Rules
Priority of calculation
The results of parameter 13-40 Logic Rule Boolean 1, parameter 13-41 Logic Rule Operator 1, and parameter 13-42 Logic Rule Boolean 2
are calculated first. The outcome (true/false) of this calculation is combined with the settings of parameter 13-43 Logic Rule Operator
2 and parameter 13-44 Logic Rule Boolean 3, yielding the final result (true/false) of the logic rule.
Parameter 13-40 Logic Rule Boolean 1
Table 681: Parameter 13-40 Logic Rule Boolean 1
13-40 Logic Rule Boolean 1
Default value: Size related
Parameter type: Option, Array [10]
Setup: 2 setups
Conversion index: -
Data Type: Uint8
Change during operation: True
Option
Name
Description
[0]
False
Select the 1
st
boolean (true or false) input for the selected logic rule. See parameter 13-01
Start Event and parameter 13-02 Stop Event for more information.
[1]
True
[2]
Running
[3]
In range
[4]
On reference
[5]
Torque limit
[6]
Current limit
[7]
Out of current range
[8]
Below I low
[9]
Above I high
[10]
Out of speed range
[11]
Below speed low
[12]
Above speed high
[13]
Out of feedb. range
[14]
Below feedb. low
[15]
Above feedb. high
[16]
Thermal warning
[17]
Mains out of range
[18]
Reversing
AU275636650261en-000101 / 130R0334 | 399Danfoss A/S © 2022.12
Parameter Descriptions
VLT AutomationDrive FC 301/302
Programming Guide
