13 12 18 37 32 27 19 29 33 20
e30ba072.13
FC 301
19 18 12 13 20 33 27 32
FC 301 &
FC 302
50 39 42 54 53 55

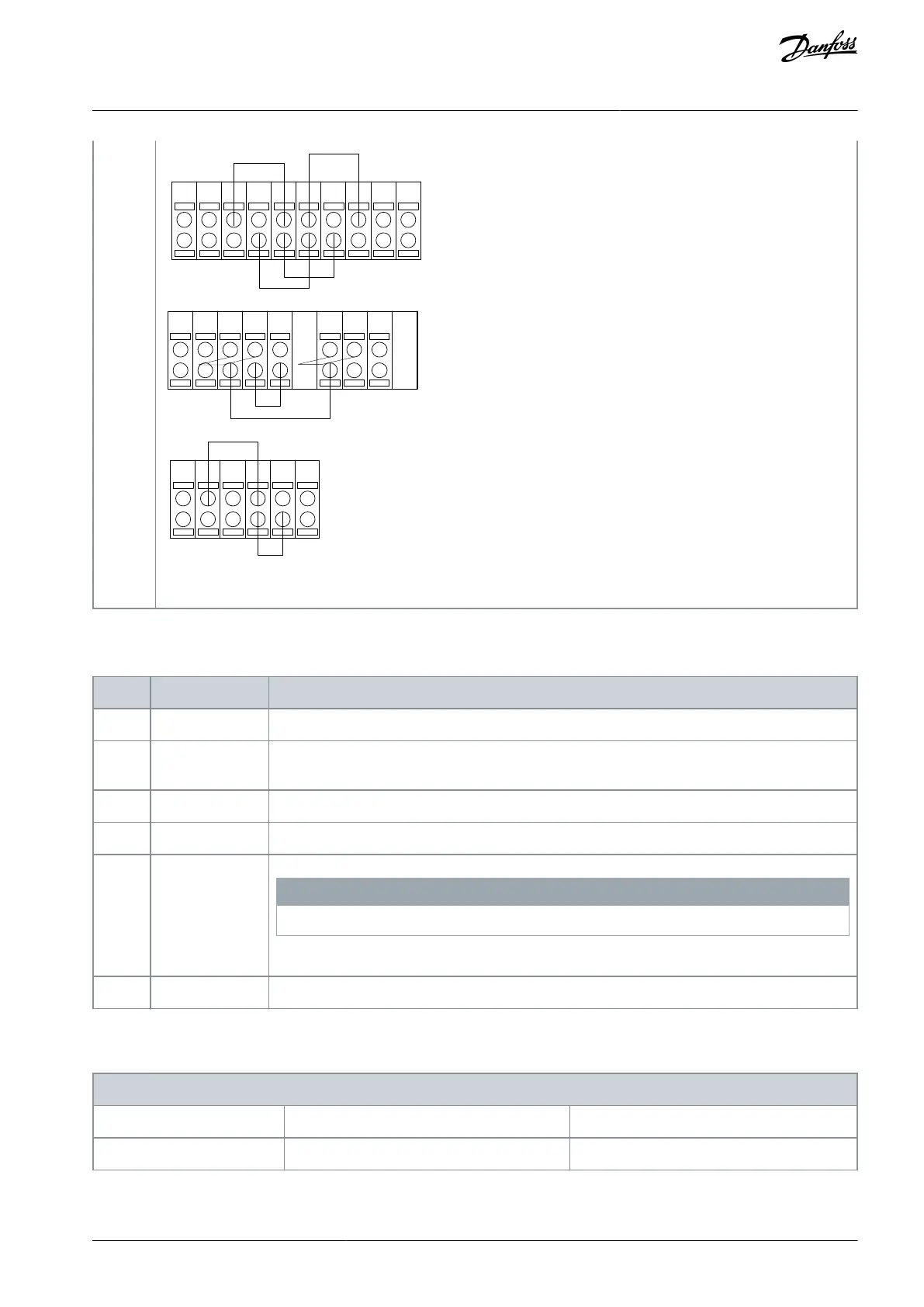

Illustration 88: Test Plugs
Select [2] Initialisation to reset all parameter values to default settings, except for: Parameter 15-03 Power Up's, parameter 15-04 Over
Temp's, and parameter 15-05 Over Volt's. The drive resets during the next power-up. Parameter 14-22 Operation Mode also returns to
the default setting [0] Normal operation.
Option
Name
Description
[0]*
Normal operation
[1]
Control card test
Remember to set switches S201 (A53) and S202 (A54) as specified in the parameter description
when performing a control card test. Otherwise, the test fails.
[2]
Initialisation
Select this option to perform initialization. This option does not clear the service logs.
[3]
Boot mode
[5]
Clear service logs
N O T I C E
Save the log information using MCT 10 Set-up Software before clearing the service logs.
Select this option and perform a power cycle to clear the log.
[6]
Clear param. log
Parameter 14-24 Trip Delay at Current Limit
Table 719: Parameter 14-24 Trip Delay at Current Limit
14-24 Trip Delay at Current Limit
Default value: 60 s
Parameter type: Range, 0 - 60 s
Setup: All setups
Conversion index: 0
Data type: Uint8
Change during operation: True
AU275636650261en-000101 / 130R0334 | 461Danfoss A/S © 2022.12
Parameter Descriptions
VLT AutomationDrive FC 301/302
Programming Guide
