Danfoss VLT AutomationDrive FC 301 Programming Guide

T
DOWN
T
UP
e75zb001.11
Frequency
[Hz]
Par. 30-01 [Hz] Delta Freq.
Par. 30-02 [%]: Delta Freq.
(par. 30-03)
Center freq.
Par. 30-01 [Hz]
Par. 30-02 [%]
(par. 30-03)
Par. 30-*1 Ramp Up
Par. 30-07: Wobb Time
Par. 30-06: Jump Time
Par. 30-04 [Hz]: Jump Freq
Par. 30-09 [%]: Jump Freq
Par. 30-09: Random Func
Par. 30-11: Random Max
Par. 30-12: Random Min
Par. 30-10: [Ratio T
up
/T
down
]
Par. .30-08: [Independent up and down]
Time [s]

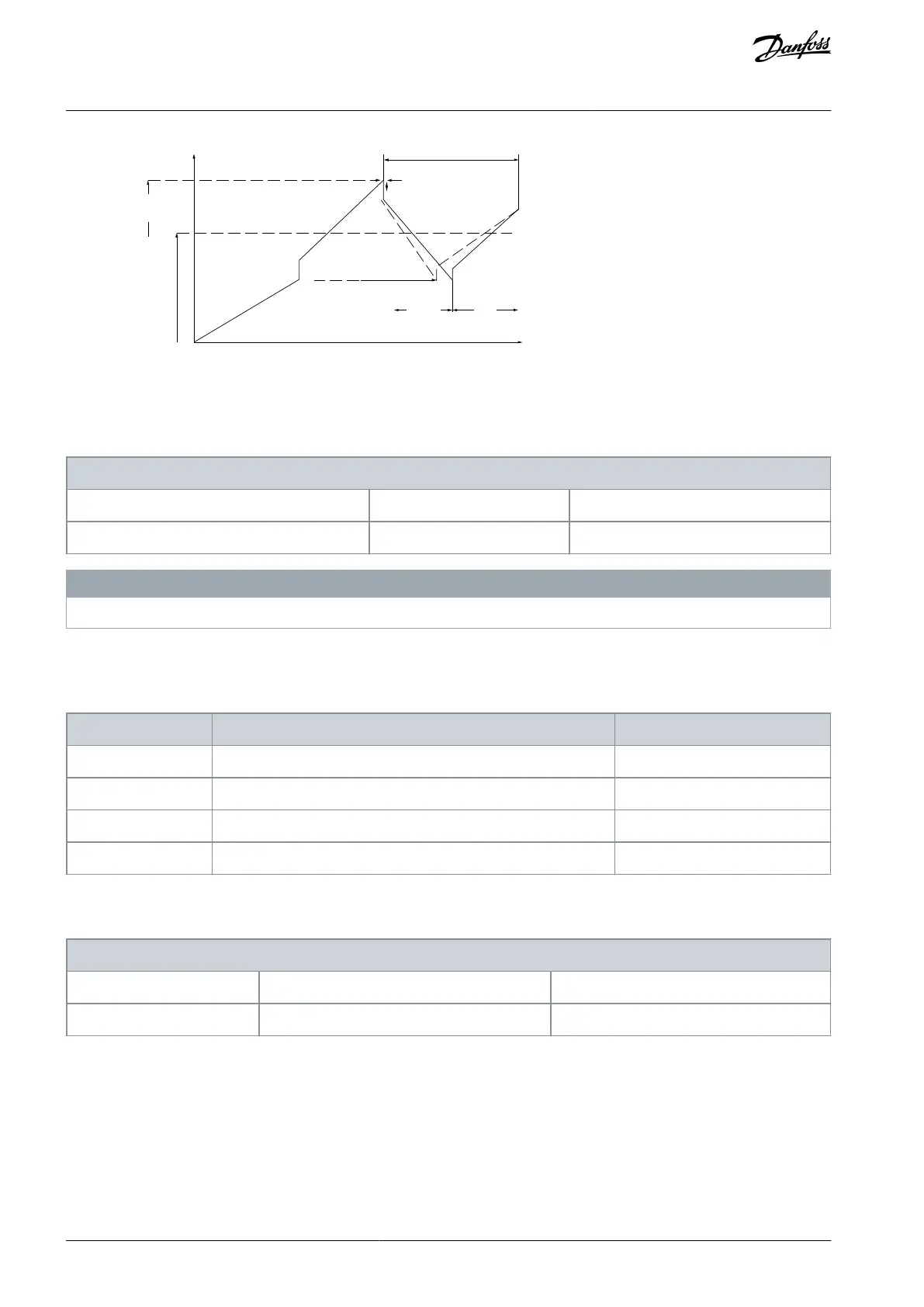

Illustration 99: Wobble Function
Parameter 30-00 Wobble Mode
Table 1063: Parameter 30-00 Wobble Mode
30-00 Wobble Mode
Default value: [0] Abs. freq., abs. time
Parameter type: Option
Setup: All setups
Conversion index: -
Data type: Uint8
Change during operation: False
N O T I C E
This parameter cannot be changed while the motor is running.
The standard speed open-loop mode in parameter 1-00 Configuration Mode is extended with a wobble function. In this parameter, it
is possible to select which method to be used for the wobbler. Set the parameters as absolute values (direct frequencies) or as rela-
tive values (percentage of other parameter). Set the wobble cycle time as an absolute value or as independent up and down times.
When using an absolute cycle time, the up and down times are configured through the wobble ratio.
Option
Name
Description
[0]*
Abs. freq., abs. time
[1]
Abs. freq., up/down time
[2]
Rel. freq., abs. time
[3]
Rel. freq., up/down time
Parameter 30-01 Wobble Delta Frequency [Hz]
Table 1064: Parameter 30-01 Wobble Delta Frequency [Hz]
30-01 Wobble Delta Frequency [Hz]
Default value: 5 Hz
Parameter type: Range, 0 - 25 Hz
Setup: All setups
Conversion index: -1
Data type: Uint8
Change during operation: True
The delta frequency determines the magnitude of the wobble frequency. The delta frequency is superimposed on the center fre-
quency. Parameter 30-01 Wobble Delta Frequency [Hz] contains both the positive and negative delta frequency. The setting of param-
eter 30-01 Wobble Delta Frequency [Hz] must thus not exceed the setting of the center frequency. The initial ramp-up time from
standstill until the wobble sequence runs is determined in parameter group 3-1* References.
AU275636650261en-000101 / 130R0334576 | Danfoss A/S © 2022.12
Parameter Descriptions
VLT AutomationDrive FC 301/302
Programming Guide
