Danfoss VLT AutomationDrive FC 360 User Manual

3 Mechanical Installation
3.1 Identication and Variants
Conrm that the equipment matches the requirements and
ordering information by checking power size, voltage data,
and overload data on the nameplate of the frequency
converter.
130BC435.12
CHASSIS/IP20 MADE BY DANFOSS IN CHINA
Danfoss A/S
6430 Nordborg
Denmark
T/C: FC-360HK37T4E20H2BXCDXXSXXXXAXBX
P/N: 134F2970 S/N: 691950A240
0.37 kW 0.5HP High Overload
IN: 3x380-480V 50/60Hz 1.24/0.99A
OUT: 3x0-Vin 0-500Hz 1.2/1.1A(Tamb. 45 C)
o
1
2
3
CAUTION:
SEE MANUAL
WARNING:
AND LAODSHARING BEFORE SERVICE
STORED CHARGE DO NOT TOUCH UNTIL 4 MIN. AFTER
DISCONNECTION
RISK OF ELECTRIC SHOCK-DUAL SUPPLY DISCONNECT MAINS
V LT
Automation Drive
www.danfoss.com
1 Type code
2 Ordering number
3 Specications

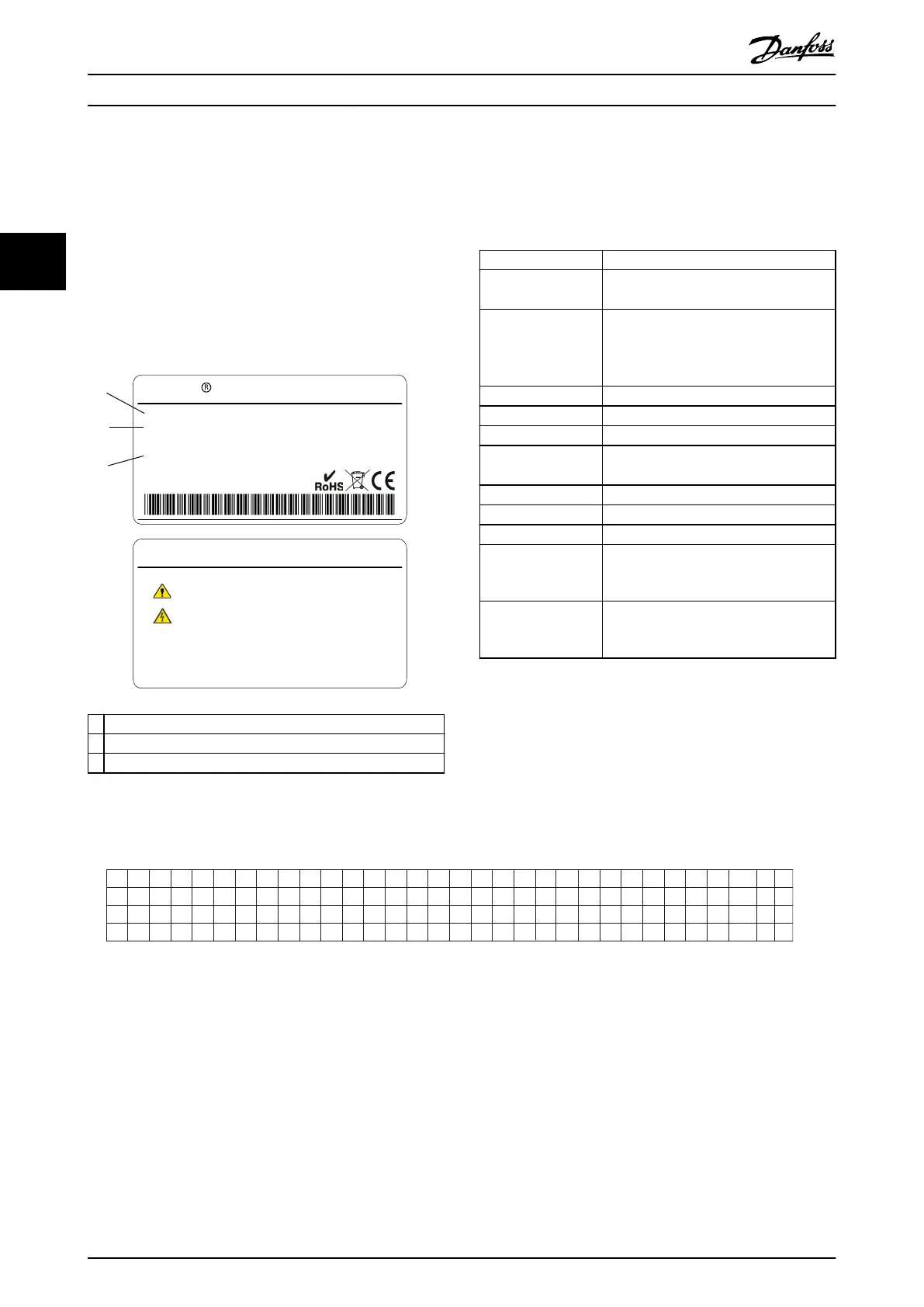

Illustration 3.1 Nameplates 1 and 2
1–6: Product Name
7: Overload
H: Heavy duty
Q: Normal duty
1)
8–10: Power size
0.37–75 kW (0.5–100 hp). For example:
K37: 0.37 kW
2)
(0.5 hp)
1K1: 1.1 kW (1.5 hp)
11 K: 11 kW (15 hp)
11–12: Voltage class T4: 380–480 V 3-phases
13–15: IP class E20: IP20
16–17: RFI H2: C3 Class
18: Brake chopper
X: No
B: Built-in
3)
19: LCP X: No
20: PCB coating C: 3C3
21: Mains terminals D: Load sharing
29–30: Embedded
eldbus
AX: No
A0: PROFIBUS
AL: PROFINET
31–32: Option B
BX: No option
BR: MCB-102 Encoder
BU: MCB-103 Resolver
Table 3.1 Type Code: Selection of Dierent Features and Options
For options and accessories, refer to the section Options and
Accessories in the VLT
®
AutomationDrive FC 360 Design Guide.
1) Only 11–75 kW (15–100 hp) for normal duty variants. PROFIBUS
and PROFINET are unavailable for normal duty.
2) For all power sizes, see chapter 8.1.1 Mains Supply 3x380–480 V
AC.
3) 0.37–22 kW (0.5–30 hp) with built-in brake chopper. 30–75 kW
(40–100 hp) with external brake chopper only.
130BC437.10
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
F C - 3 6 0 H T 4 E 2 0 H 2 X X C D X X S X X X X A X B X
Q B 0
L
A
A
Illustration 3.2 Type Code String
Mechanical Installation
VLT
®
AutomationDrive FC 360
10 Danfoss A/S © 03/2017 All rights reserved. MG06A702
33
