3.3.2 Horizontal Mounting
Enclosure size J1–J5 of VLT
®
AutomationDrive FC 360 units
can be installed in horizontal position.
130BF793.10
G

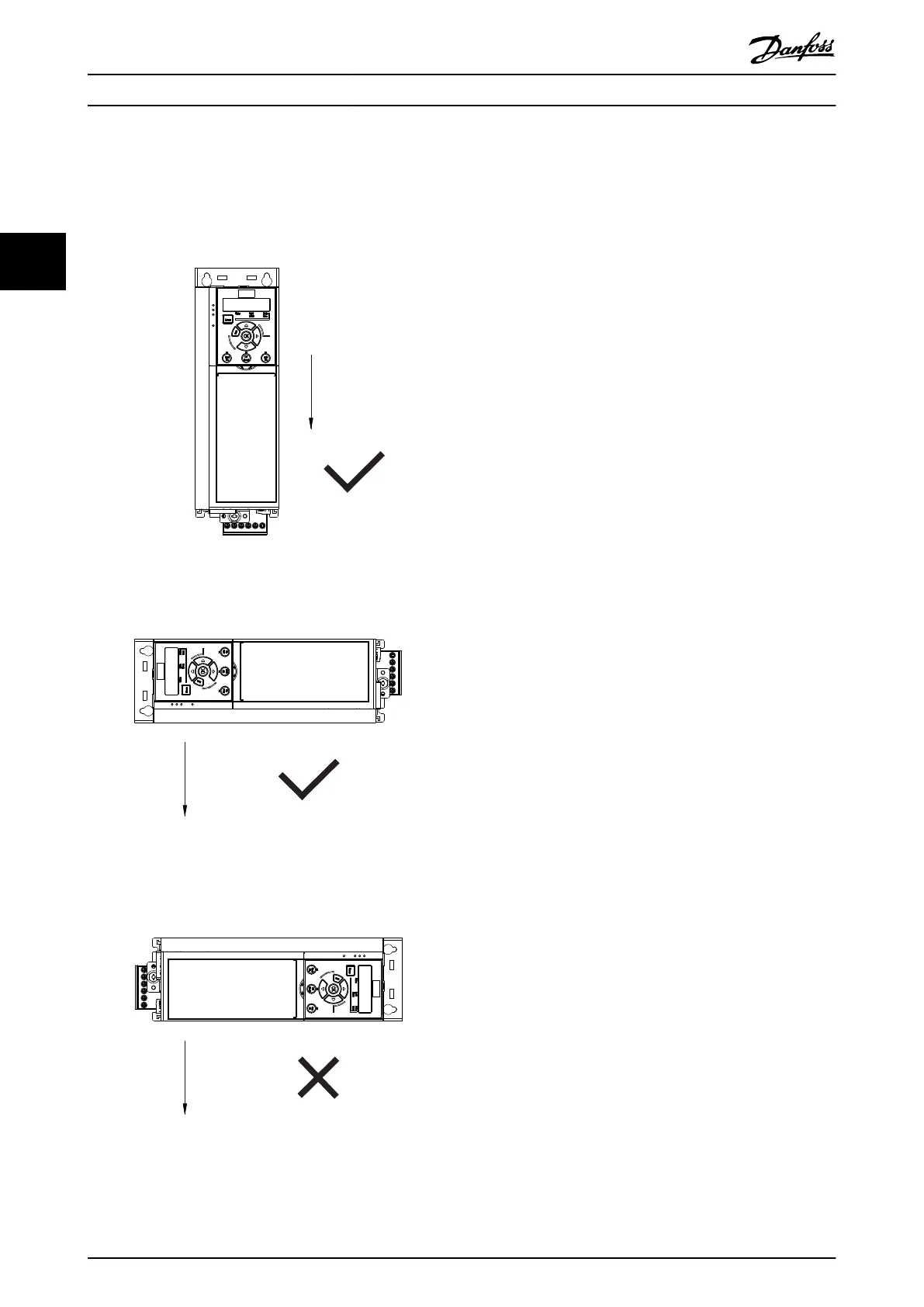

Illustration 3.4 Normal Mounting
130BF794.10
G
Illustration 3.5 Correct Horizontal Mounting (Left Side
Downwards)
130BF795.10
G
Illustration 3.6 Incorrect Horizontal Mounting (Right Side
Downwards)
Mechanical Installation
VLT
®
AutomationDrive FC 360
12 Danfoss A/S © 03/2017 All rights reserved. MG06A702
