Danfoss VLT AutomationDrive FC 360 User Manual

130BF228.10
L1
L2
L3
PE
PE
u
v
w
2
1
3
5
16
17
18
14
12
8
7
10
9
4
11
13
4
4
6
15
90
1 PLC 10 Mains cable (unshielded)
2
Minimum 16 mm
2
(6 AWG) equalizing cable
11 Output contactor, and more.
3 Control cables 12 Cable insulation stripped
4 Minimum 200 mm (7.87 in) between control cables, motor
cables, and mains cables.
13 Common ground busbar. Follow local and national
requirements for cabinet grounding.
5 Mains supply 14 Brake resistor
6 Bare (unpainted) surface 15 Metal box
7 Star washers 16 Connection to motor
8 Brake cable (shielded) 17 Motor
9 Motor cable (shielded) 18 EMC cable gland

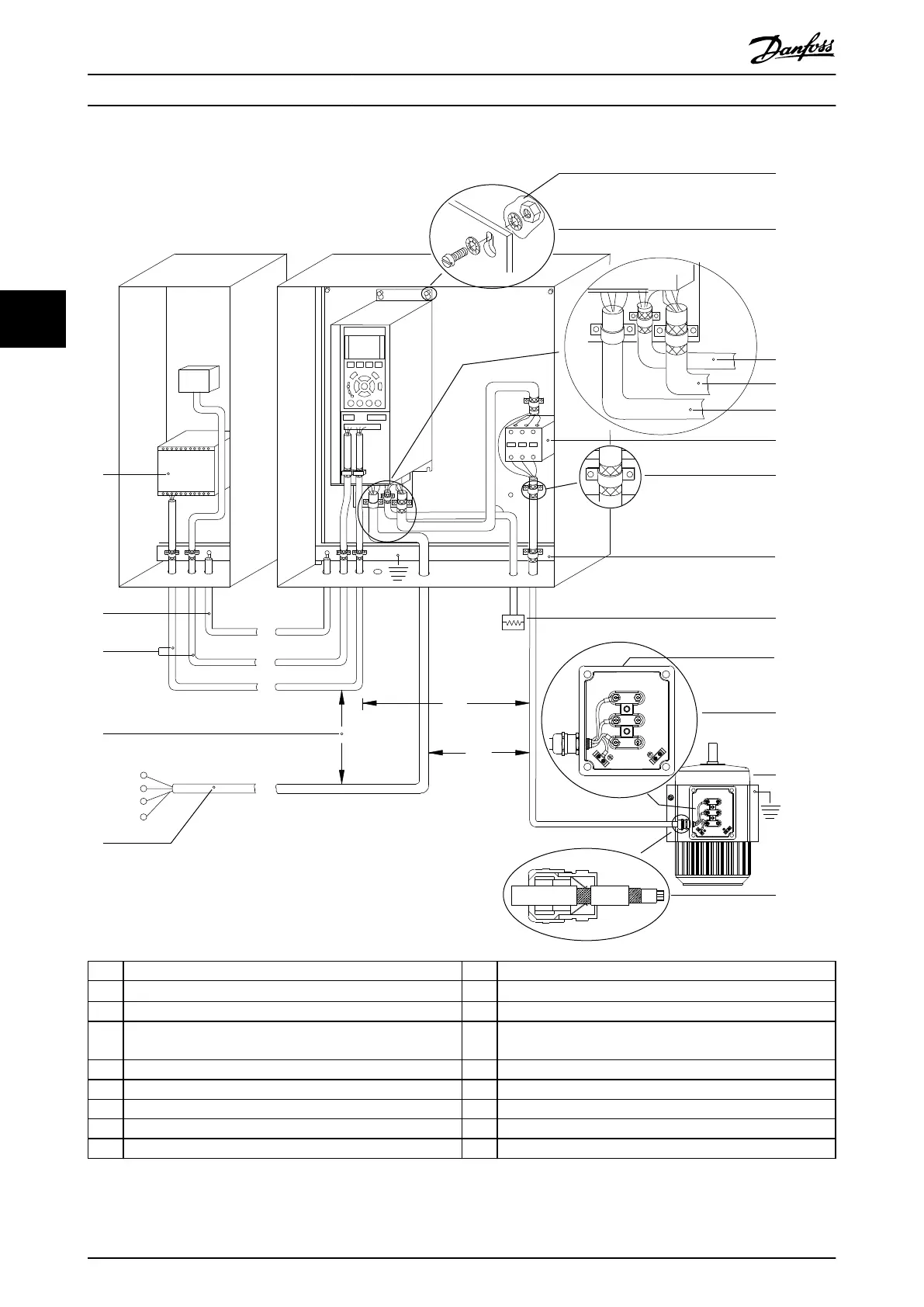

Illustration 4.3 Typical Electrical Connection
