Danfoss VLT AutomationDrive FC 361 - Page 30

M10
13 (0.5)
32 (1.3)
59 (2.3)
10 (0.4)
244 (9.6)
272 (10.7)
0.0
0.0
1
2
4
3
5
M10
13 (0.5)
32 (1.3)
145 (5.7) 182 (7.2)
3X M8x18
0
0
e30bg573.10
1 and 4 Mains terminals 2 and 5 Motor terminals
3 Ground terminals

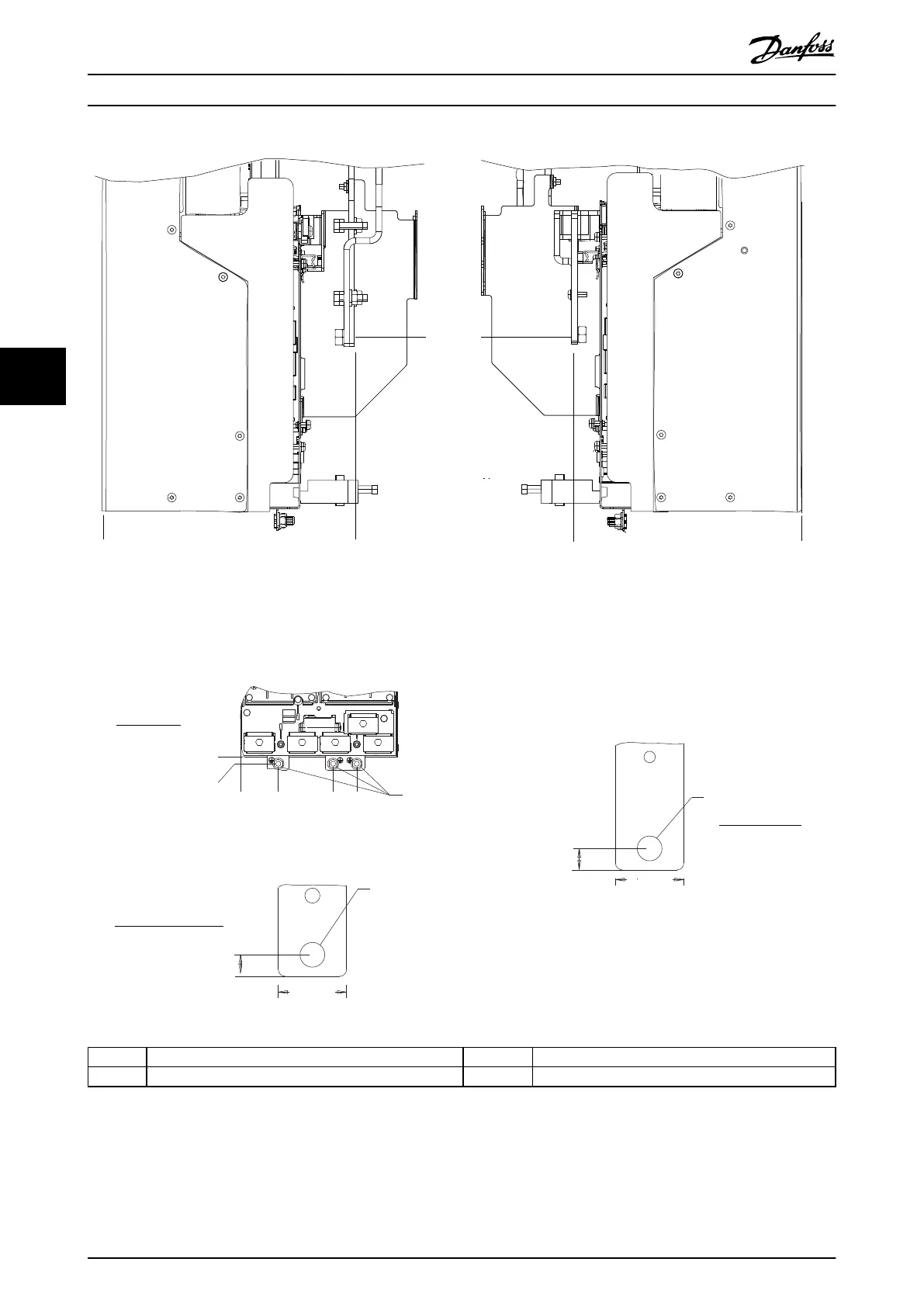

Illustration 5.7 J8 Terminal Dimensions (Side Views)
