Danfoss VLT FC 100 Series Programming Guide

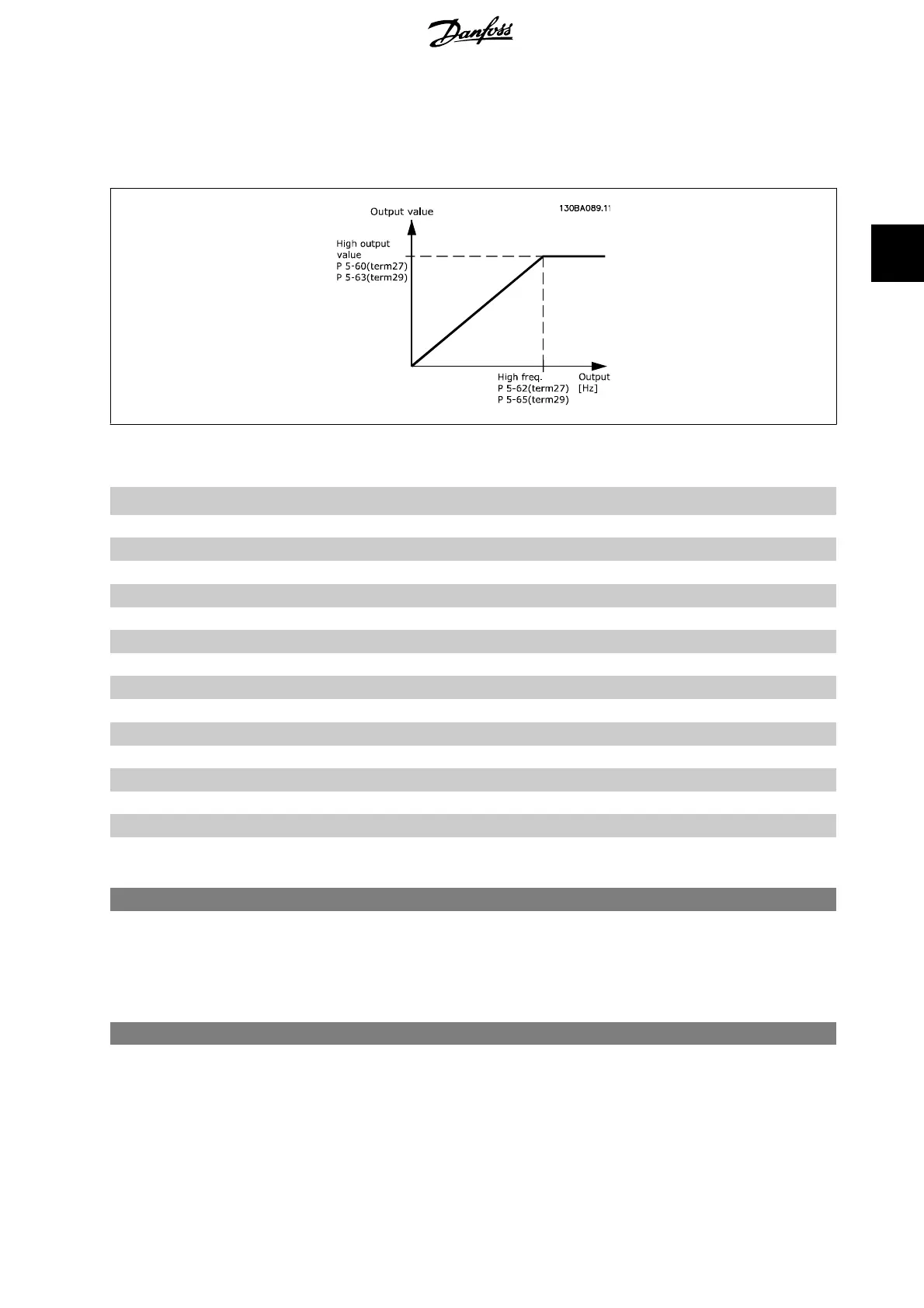

3.7.8. 5-6* Pulse Outputs
Parameters for configuring the scaling and output functions of pulse outputs. The pulse outputs are designated to terminals 27 or 29. Select terminal 27
output in par. 5-01 and terminal 29 output in par. 5-02.
Options for readout output variables:
[0] *
No operation
[45] Bus ctrl.
[48] Bus ctrl., timeout
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque relative to limit
[105] Torque relative to rated
[106] Power
[107] Speed
[108] Torque
[109] Max Out Freq
[113] Ext. Closed Loop
[114] Ext. Closed Loop
[115] Ext. Closed Loop
5-60 Terminal 27 Pulse Output Variable
Option: Function:
[0] *
No operation Same options and functions as par. 5-6* Pulse Outputs .
Select the operation variable assigned for terminal 27 readouts.
This parameter cannot be adjusted while the motor is running.
5-62 Pulse Output Maximum Frequency #27
Range: Function:
5000Hz * [0 - 32000 Hz]
Set the maximum frequency for terminal 27, corresponding to the output variable selected in par. 5-60.
This parameter cannot be adjusted while the motor is running.
VLT
®
HVAC Drive Programming Guide 3. Parameter Description
MG.11.C5.02 - VLT
®
is a registered Danfoss trademark 77
