Danfoss vlt FC 102 Installation Guide

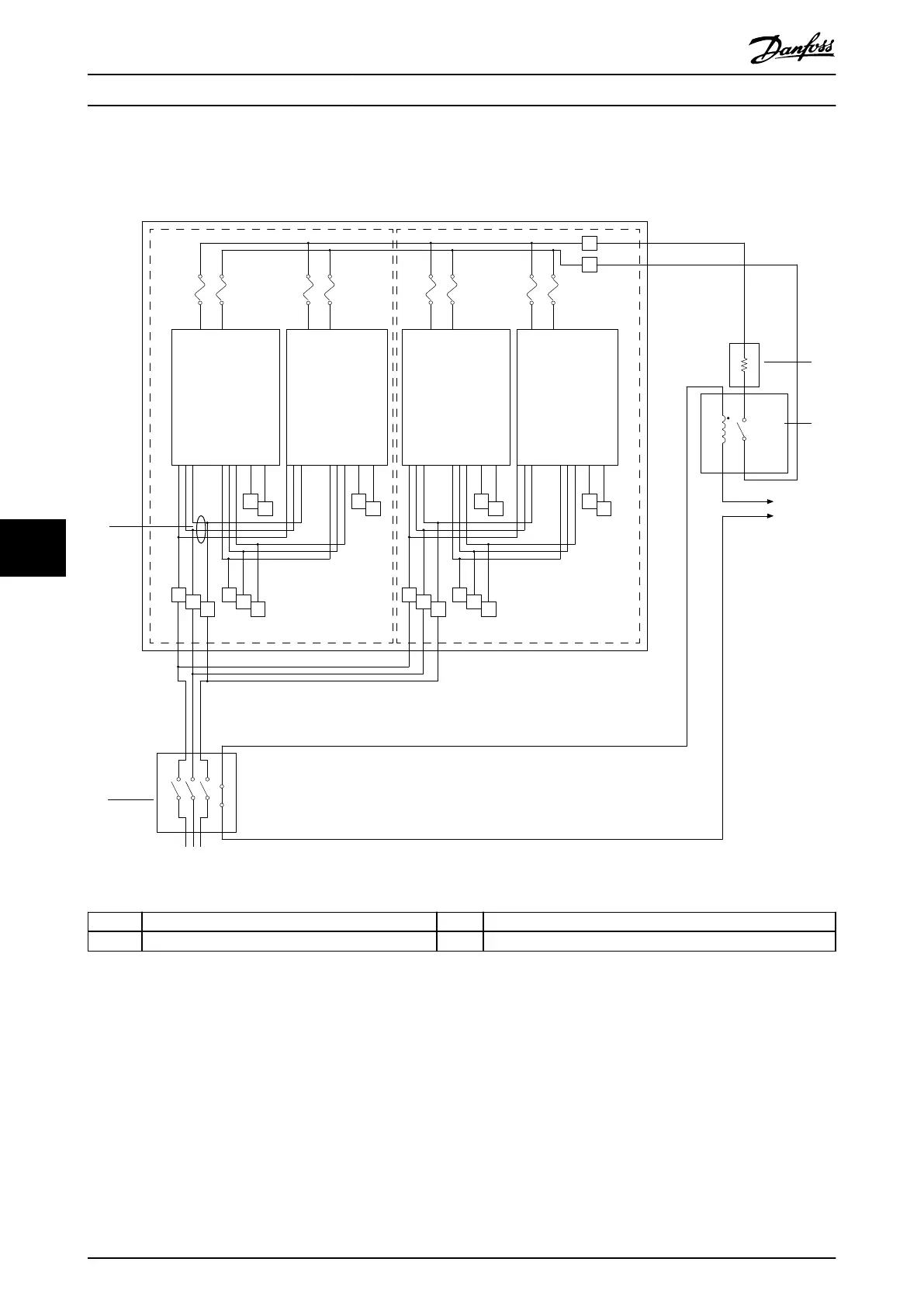

8.3.7 Discharge Resistor Connections
130BE740.10
R S T U V W R+ R- R S T U V W R+ R- R S T U V W R+ R- R S T U V W R+ R-
BASE
DRIVE
BASE
DRIVE
BASE
DRIVE
BASE
DRIVE
3
4
1
2
1 Mains input bus bars 3 Discharge resistor
2 Mains contactor/disconnector auxiliary contacts 4 Discharge contactor
Illustration 8.7 Discharge Resistor Connections
Appendix
VLT
®
Parallel Drive Modules
74 Danfoss A/S © 08/2017 All rights reserved. MG37K302
