Danfoss VLT Micro Drive FC 51 User Manual

-
4 Programming
4.1 Local Control Panel (LCP)
For detailed information on programming, see VLT® Micro DriveFC 51 Programming Guide.
N O T I C E
The drive can also be programmed from a PC via RS485 com-port by installing the MCT 10 Set-up Software.
This software can either be ordered using code number 130B1000 or downloaded from the Danfoss web site: www.dan-
foss.com.
e30ba605.13
1
2
3
4
5
6
7
8
9
10
11
12
Status
Quick
Menu
Main
Menu
Menu
On
Warn
Alarm
Hand
On
Off
Reset
Auto
On
Back
OK
Setup 1

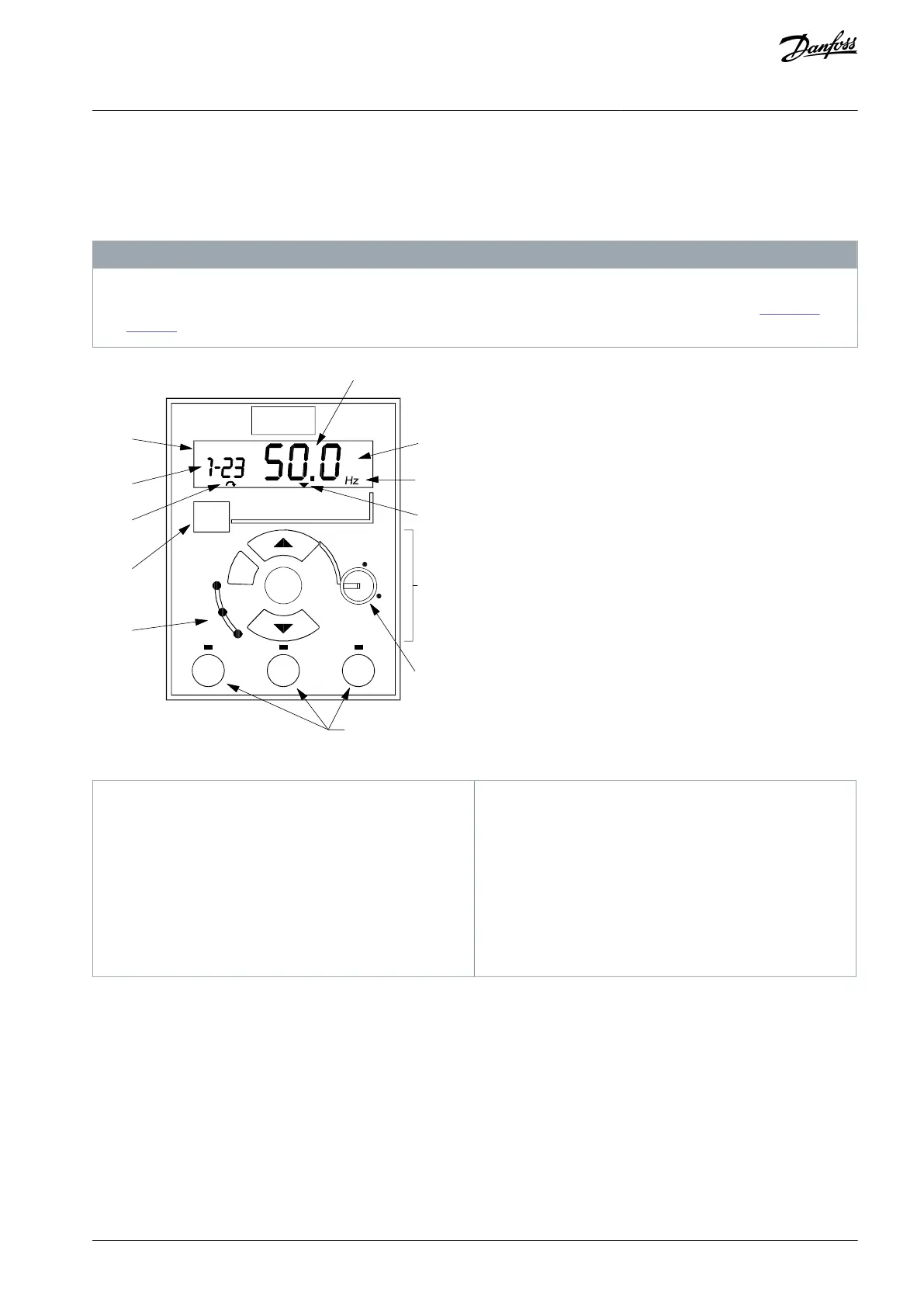

Illustration 7: Description of LCP Keys and Display
1
Set-up number
2
Parameter number
3
Motor direction
4
Menu key
5
Indicator lights
6
Operation keys and LED
7
Potentiometer (LCP 12)
8
Navigation keys
9
Selected menu
10
Unit
11
Numeric display
12
Value
Press [Menu] to select 1 of the following menus:
Status
For readouts only.
Quick Menu
For access to Quick Menus 1 and 2.
Main Menu
For access to all parameters.
Navigation keys
[Back]: For moving to the previous step or layer in the navigation structure.
[▵] [▿]: For manoeuvring between parameter groups, parameters, and within parameters.
[OK]: For selecting a parameter and for accepting changes to parameter settings.
AQ348848915086en-000101 / 130R0943 | 17Danfoss A/S © 2020.09
Programming
VLT® Micro Drive FC 51
Operating Guide
