Danfoss VLT Design Guide

4 How to Order
4.1 Ordering Form
4.1.1 Drive Configurator
It is possible to design a frequency converter according to
the application requirements by using the ordering
number system.
Order the frequency converter as either standard or with
integral options by sending a type code string describing
the product a to the local Danfoss sales office, i.e.:
FC-103-102P18KT4E21H1XGCXXXSXXXXAGBKCXXXXDX
The meaning of the characters in the string can be located
in the pages containing the ordering numbers in 3 Drive
Selection. In the example above, a AKD LONworks option
and a General purpose I/O option is included in the
frequency converter.
Ordering numbers for frequency converter standard
variants can also be located in 4 How to Order.
From the Internet based Drive Configurator, you can
configure the right frequency converter for the right
application and generate the type code string. The Drive
Configurator will automatically generate an eight-digit
sales number to be delivered to your local sales office.
Furthermore, you can establish a project list with several
products and send it to a Danfoss sales representative.
The Drive Configurator can be found on the global
Internet site: www.danfoss.com/drives.
Example of Drive Configurator interface set-up:
The numbers shown in the boxes refer to the letter/figure
number of the Type Code String - read from left to right.
Product groups 1-3
Frequency converter series 4-6
Power rating 8-10
Phases 11
Mains Voltage 12
Enclosure 13-15
Enclosure type
Enclosure class
Control supply voltage
Hardware configuration
RFI filter 16-17
Brake 18
Display (LCP) 19
Coating PCB 20
Mains option 21
Adaptation A 22
Adaptation B 23
Software release 24-27
Software language 28
A options 29-30
B options 31-32
D options 38-39
Table 4.1

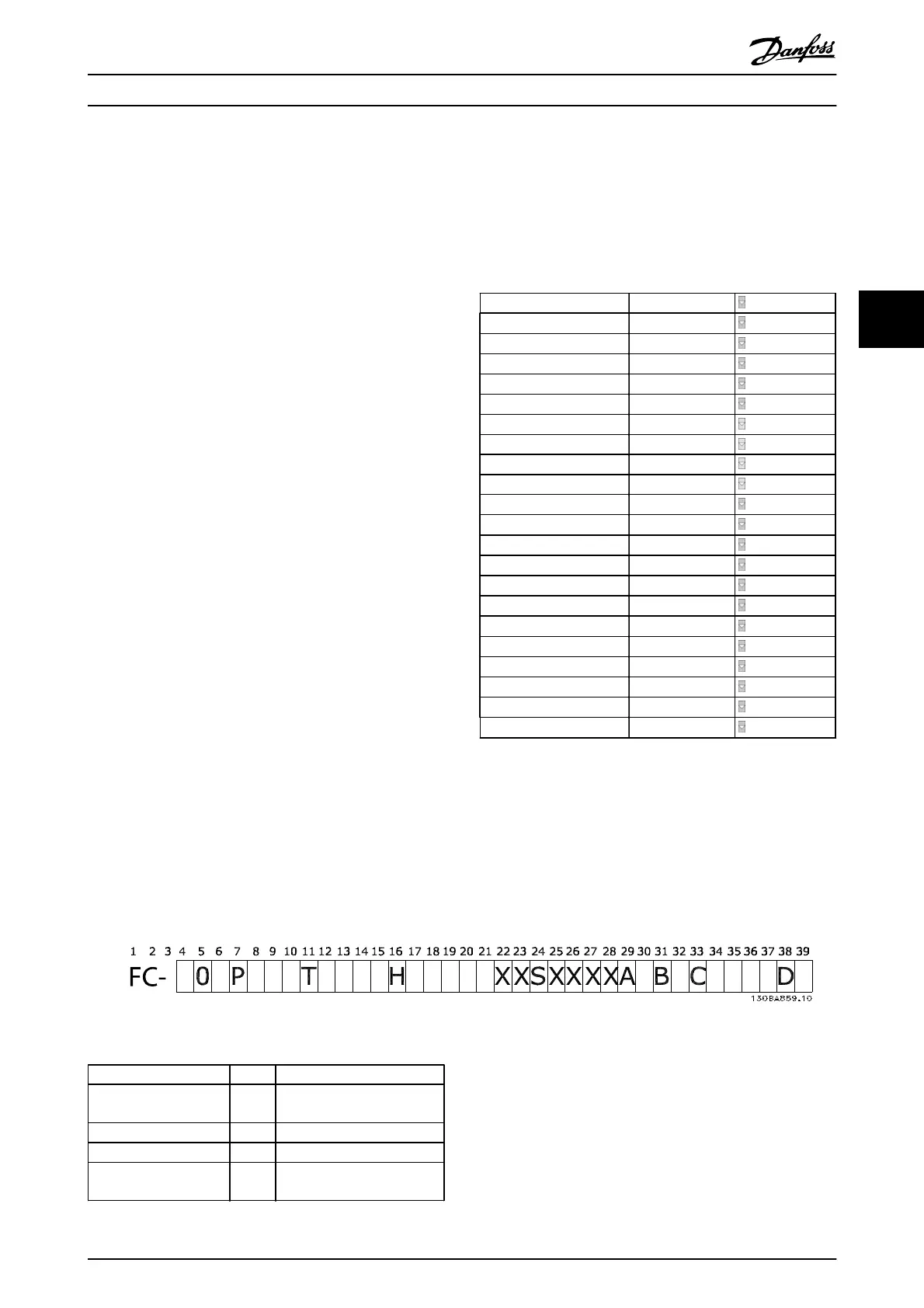

4.1.2 Type Code String
Illustration 4.1
Description Pos Possible choice
Product group & VLT
Series
1-6 FC 103
Power rating 8-10 1.1-250 kW (P1K1-P250)
Number of phases 11 Three phases (T)
Mains voltage 11-12
T 2: 200-240 V AC
T 4: 380-480 V AC
How to Order
VLT
®
Refrigeration Drive Design Guide
MG16G102 - VLT
®
is a registered Danfoss trademark 51
4
4

Danfoss VLT Specifications

General

Frequency	50/60 Hz
Enclosure	IP20, IP21, IP55, IP66
Series	VLT
Control Technique	Flux Vector Control
Output Voltage	0-Vinput
Control Method	Fieldbus
Communication Interface	PROFIBUS, CANopen
Protection Features	Overload, Overvoltage, Undervoltage, Short Circuit, Ground Fault
Cooling Method	Liquid Cooled
Storage Temperature	-25°C to +70°C
Relative Humidity	5-95% non-condensing
Altitude	Up to 1000m (3280ft) without derating, up to 4000m (13120ft) with derating
Operating Temperature	-10°C to +50°C (14°F to 122°F)
