Danfoss VT2800 Series - Page 15

VLT
®
2800 Series
Introduction to VLT
2800

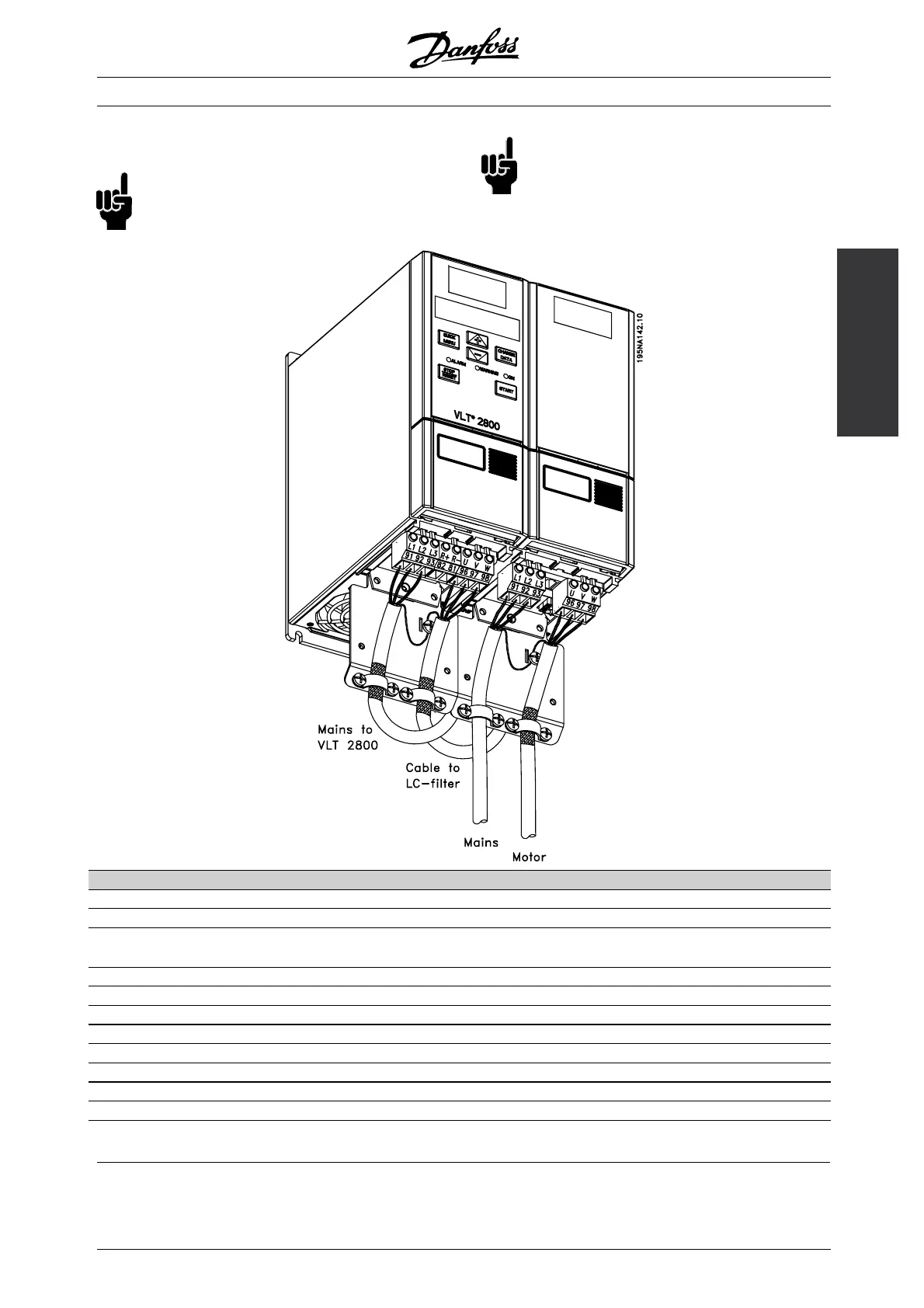

■ RFI 1B/LC filter
NB!:
To comply with EN 55011-1B the RFI 1B
filter module must be fitted to a VLT 2800
with integral 1A RFI filter.
NB!:
The 1B/LC filter is not suitable for 200 V devices
due to the high 1Ø input current.
Technical data for VLT 2803-2840 RFI 1B/LC filter
Max. cable length (screened/armoured) 380-480 V 25 m ( At 1A: 50 m)
Enclosure IP 20
Max. rated current 4.0 (Order no.: 195N3100); 9.1 (Order no.:
195N3101)
Max. voltage 480 V AC
Max. voltage to earth 300 V AC
Min. distance between VLT and RFI 1B/LC filter Side-by-Side
Mi n. distance above and below RFI 1B/LC filter 100 mm
Dimensions 195N3100 4.0 A H x W x D ( mm) 200 x 75 x 168
Dimensions 195N3101 9.1 A H x W x D ( mm) 267.5 x 90 x 168
Weight 195N3100 4.0 A 2.4 kg
Weight 195N3101 9.1 A 4.0 kg
MG.28.E9.02 - VLT is a registered Danfoss trademark
15
