VLT
®
2800 Series
Programming

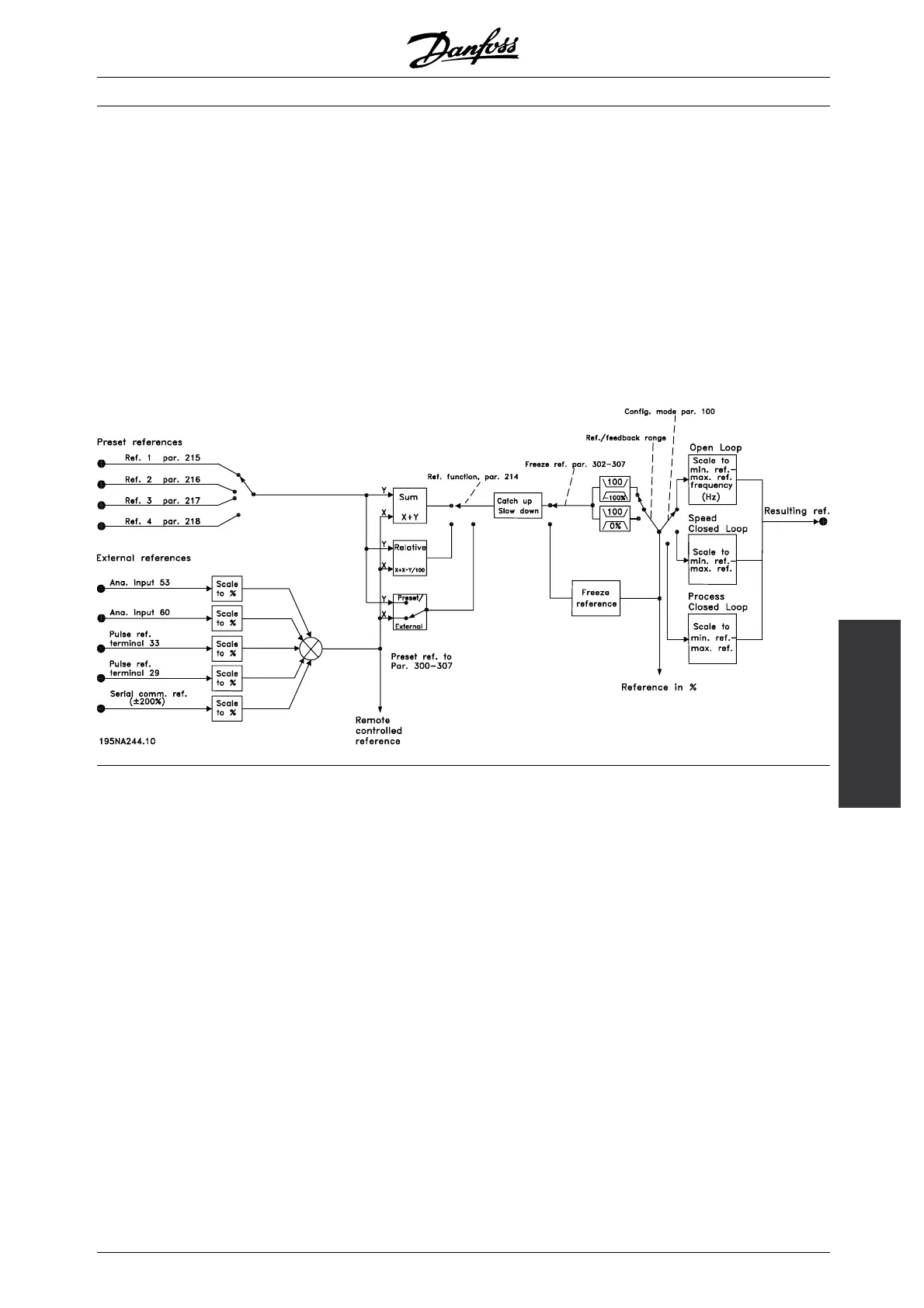

- Preset references.
The resulting reference can be shown on the LCP
control unit’s display by selecting Reference [%] in
parameters 0 09-012 Display readout and can be
shown as one unit by selecting Refere nce [unit].
The sum of the external references can be show n on
the LCP control unit’sdisplayasa%oftheareafrom
Minimum referenc e, Ref
MIN
to Maximum reference, Ref
MAX
. Select External reference, % [25] in parameters
009-012 Display readout if a readout is d esired.
It is possible to have both references and external
references simultaneously. In parameter 214
Reference function a selection can be made
to determine how preset references should be
added to the external refe rences.
There is also an independent local reference in
parameter 003 Local reference,inwhichthe
resulting reference is set using the [+/-] keys.
When the local reference has been selected, the
output frequency range is limited by parameter
201 Output frequency low limit, f
MIN
and parameter
202 Output frequency high limit, f
MAX
.
The local reference unit depends on the selection
in parameter 100 Configuration.
✭ = factory setting. () = di splay text [] = value for use in communication via serial communicat ion port
MG.28.E9.02 - VLT is a registered Danfoss trademark
79
