DataCard SD260L Installation And Administrator's Guide

40 Printer Manager

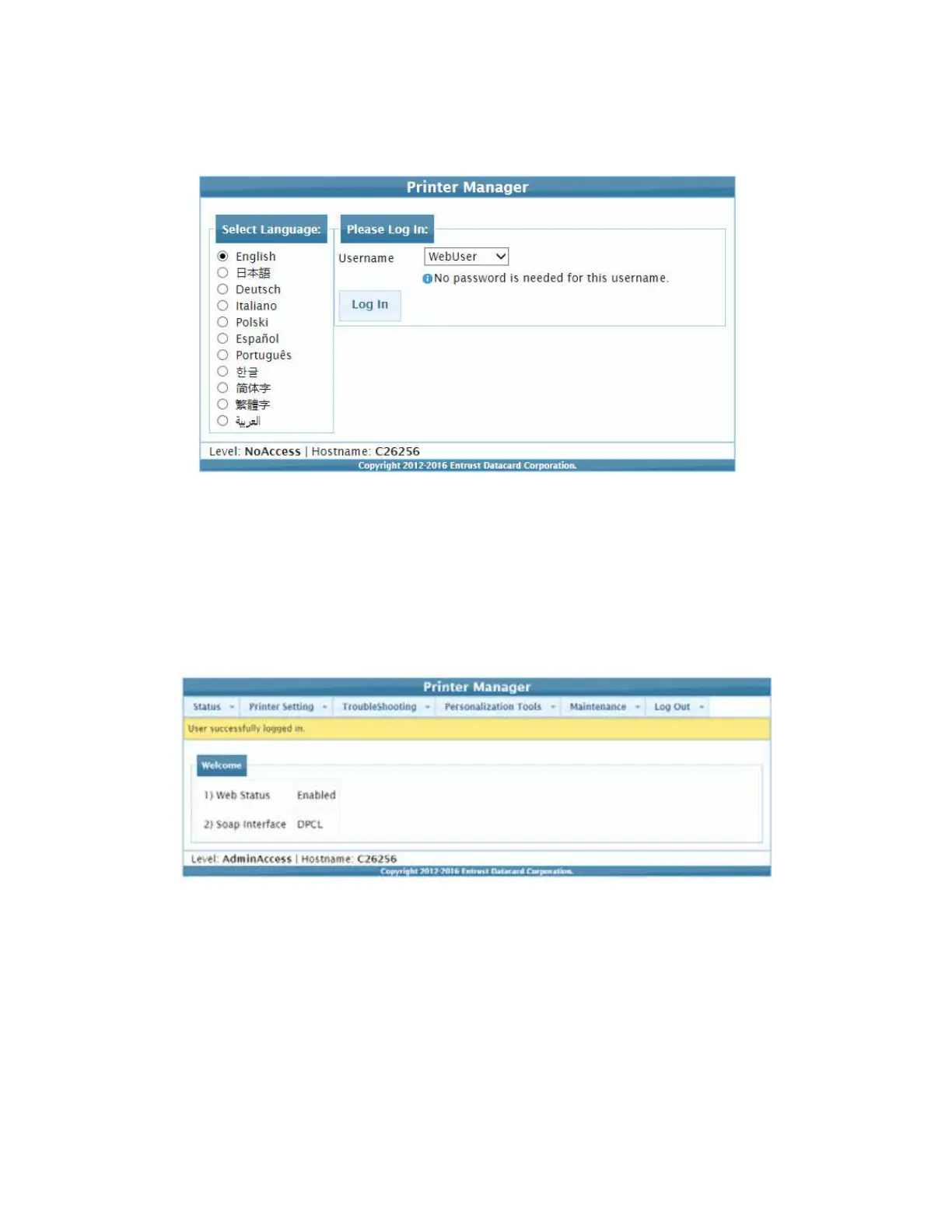

3. The Printer Manager Log In screen displays.
4. Select the language in which to display the Printer Manager session from the Select Language
column.
5. In the Please Log In section, select a Username that matches your job responsibility and enter
a password (if required). Refer to “Printer Manager User Access Levels” on page 38 for a
description of the user access levels.
6. Click Log In to display the Printer Manager Welcome page.
HINTS & TIPS
 If the browser cannot connect to the printer, make sure that Ready displays on the LCD panel
of the printer.
 Some Printer Manager pages feature hover text that displays help information when the
cursor hovers over the setting in the description column.

DataCard SD260L Specifications

General

Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC
Card feeder	Yes
Duplex printing	No
Print technology	Dye-sublimation/Resin Thermal transfer
Maximum resolution	300 x 300 DPI
Print speed (color)	830 card/h
Print speed (monochrome)	200 card/h
Display	LCD
Product color	Blue, Grey
Internal memory	128 MB
Cable lock slot type	Kensington
Total input capacity	100 sheets
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
USB version	2.0
Ethernet interface type	Fast Ethernet
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Weight and Dimensions

Depth	539 mm
Width	175 mm
Height	224 mm
Weight	5400 g
