DataCard SD460 Installation And Administration Guide

SD Series Installation and Administrator’s Guide 23
Card Layout
Thearrangementorlayoutofcomponentsdetermineshowwellyourcarddesign
worksforusers.Followtheseguidelinestopositioncarddesigncomponentsfor
bestresults.
Margins
Anyunprintedareaattheedgeofthecardoraroundtheperimeterofacard
featureiscalledthemargin.
Margins at the Edge of a Card

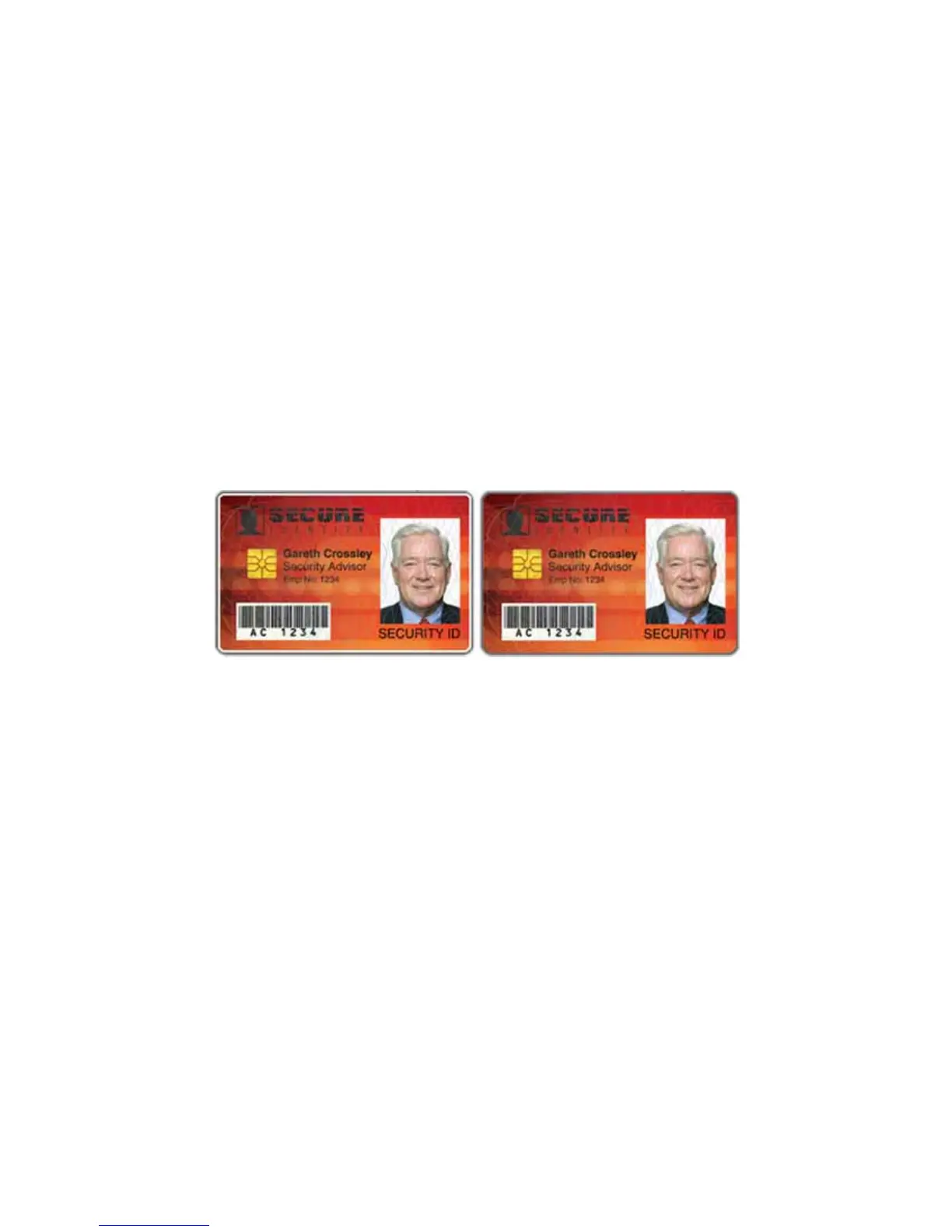

Thecardprinterscanprintedgetoedge,whichisthesameasamarginofzero (0)
ornomargin.Thecardontheleftshowsamarginofwhitespaceattheouter
edgeofthecard.Thecardontherightshowsedge‐to‐edgeprinting.

Edge‐to‐edgeprintingcanrequirefine‐tuningtheprinterandthecarddesign.
Includethistaskaspartofsetup.
Margins for Card Features
Maintainamarginbetweenprintingandcar dfeatures,suchasasignaturepanel,
magneticstripe,orsmartcardchip.Forbestresults,donotprintcloserthan
0.1inch(2.5mm)fromsuchafeature.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
