DataCard SD460 User Manual

XPS Card Printer Driver User’s Guide B-3
5. Configure security.
a. Select the Security tab on the Printer Properties window.
b. Review the Group or user names list. Do the following to add users to the list.

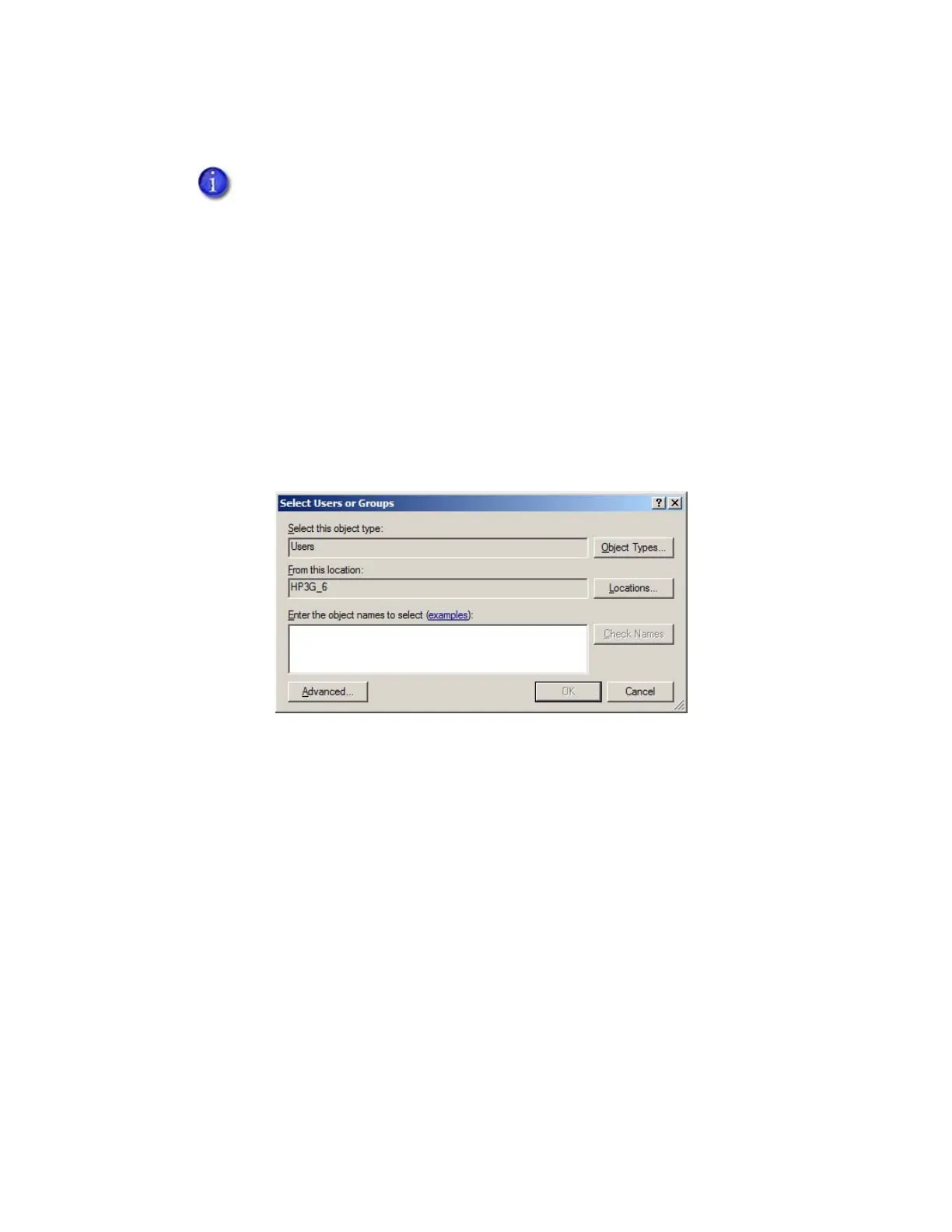

i. Click Add. The Users or Groups dialog box displays.
ii. Select the name you want to add, and click Add. Repeat for each name you want to
add.
Skip this Configure security section if you want to accept the following defaults:
 All users (the Everyone account) can print.
 Only the person who enabled sharing on the printer (the CREATOR OWNER
account) can view printer error messages at the client PC.
Users at the client PC can view printer error messages from Windows Print Manager.
These printer errors can be resolved at the printer LCD screen or host PC.
For more information, refer to “Security permissions for shared printers” on
page 29, and “View messages” on page 30.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
