D-500 User Manual Rev_06 Firmware V-5.8

K35D05-EN - 12 -

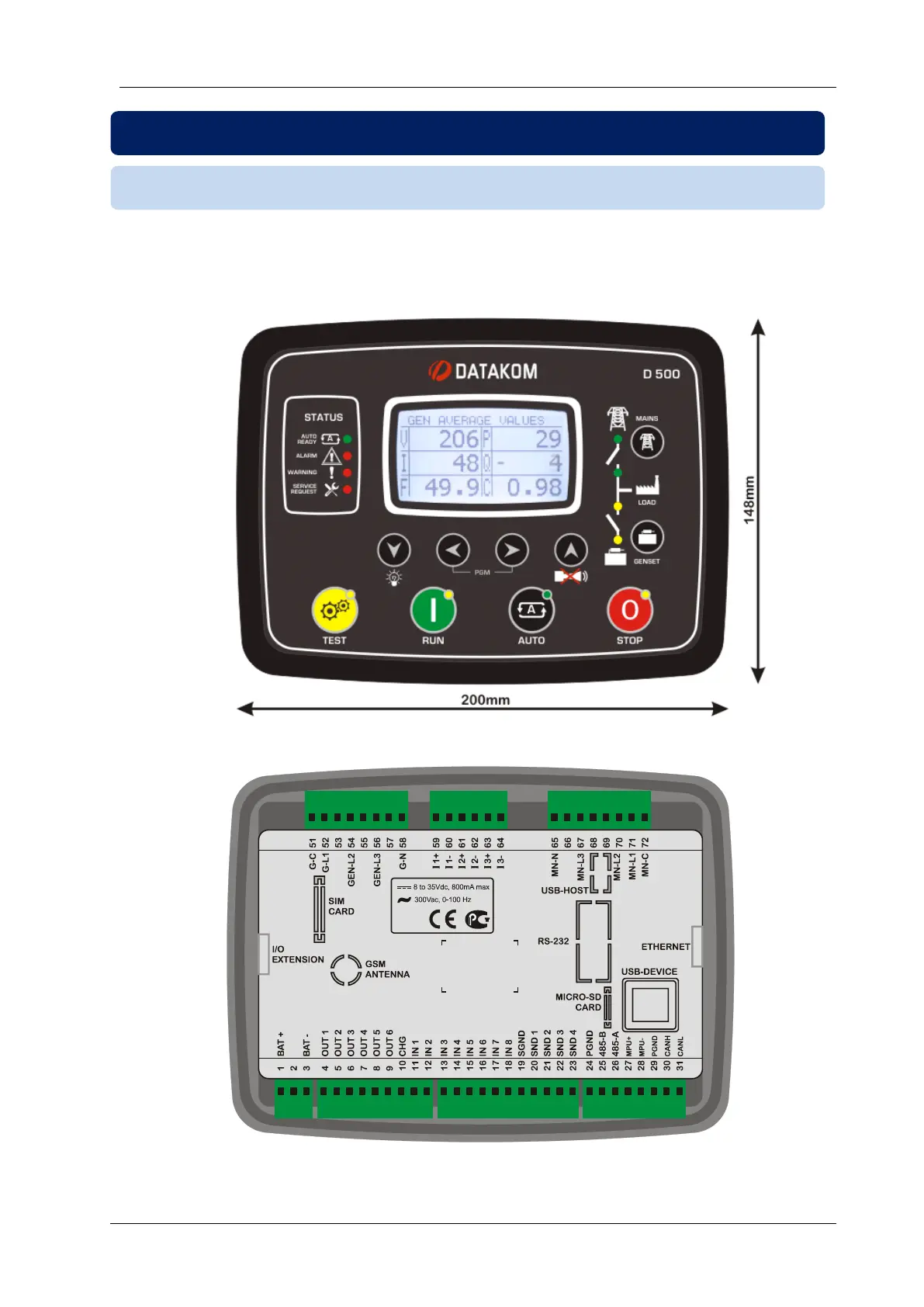

Dimensions: 200x148x47mm (7.9”x5.8”x1.9”)

Panel Cutout: 176x121mm minimum (7.0”x4.8”)

Weight: 450g (1 lb)

2.1. DIMENSIONS

2. MOUNTING

Main Page
