Datakom D-500 - Ethernet Port

D-500 User Manual Rev_06 Firmware V-5.8
K35D05-EN - 27 -
Description:
IEEE802.3 compliant, 10/100 Base-TX
RJ45 ethernet port with indicating leds
Data rate:
10/100 Mbits/s, auto detecting
Connector:
RJ45
Cable type:
CAT5 or CAT6
Isolation:
1500 VAC, 1 minute
Max distance:
100m with CAT5 or CAT6 cable
Functionality:
Embedded TCP/IP, Web Server, Web
Client, SMTP, e-mail, SNMP, Modbus
TCP_IP
STANDARD ETHERNET CABLE
LED FUNCTIONS:
GREEN: This led turns on when the ethernet link is established (connector inserted)
YELLOW: This led blinks when data transfer occurs inwards or outwards. Periodic blinking will witness
data flow.

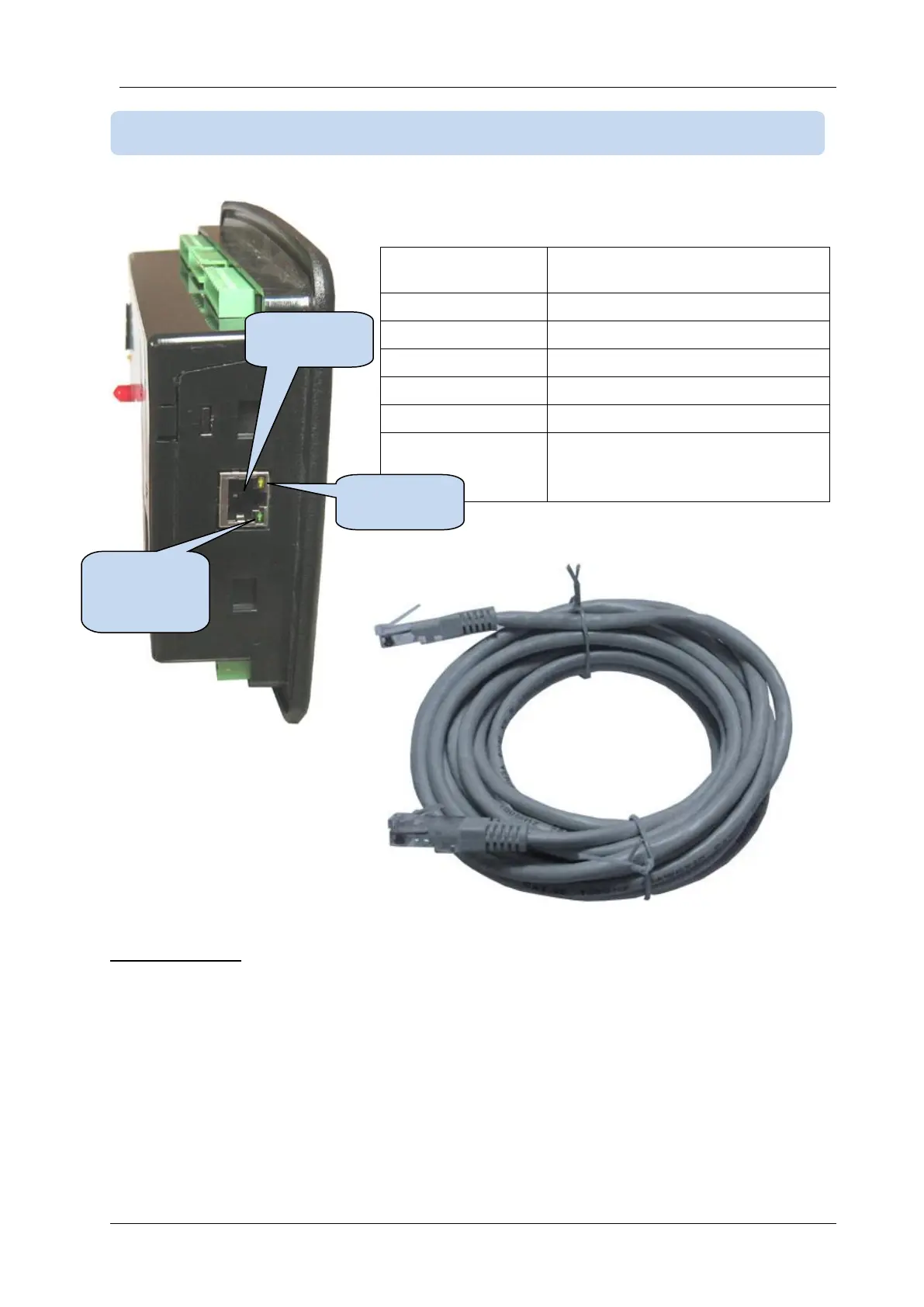

3.14. ETHERNET PORT
Ethernet
Connector
Link
Established
led
Data Flow
led
