When the engine hours OR the time limit is over, the SERVICE REQUEST led (red) will start to flash and the
service request output function will be active. The service request can also create a fault condition of any
level following parameter setting.
The service request output function may be assigned to any digital output using Relay Definition
program parameters. Also relays on an extension module may be assigned to this function.
To turn off the SERVICE REQUEST led, and reset the service
period, press together the ALARM MUTE and LAMP TEST keys
for 5 seconds.

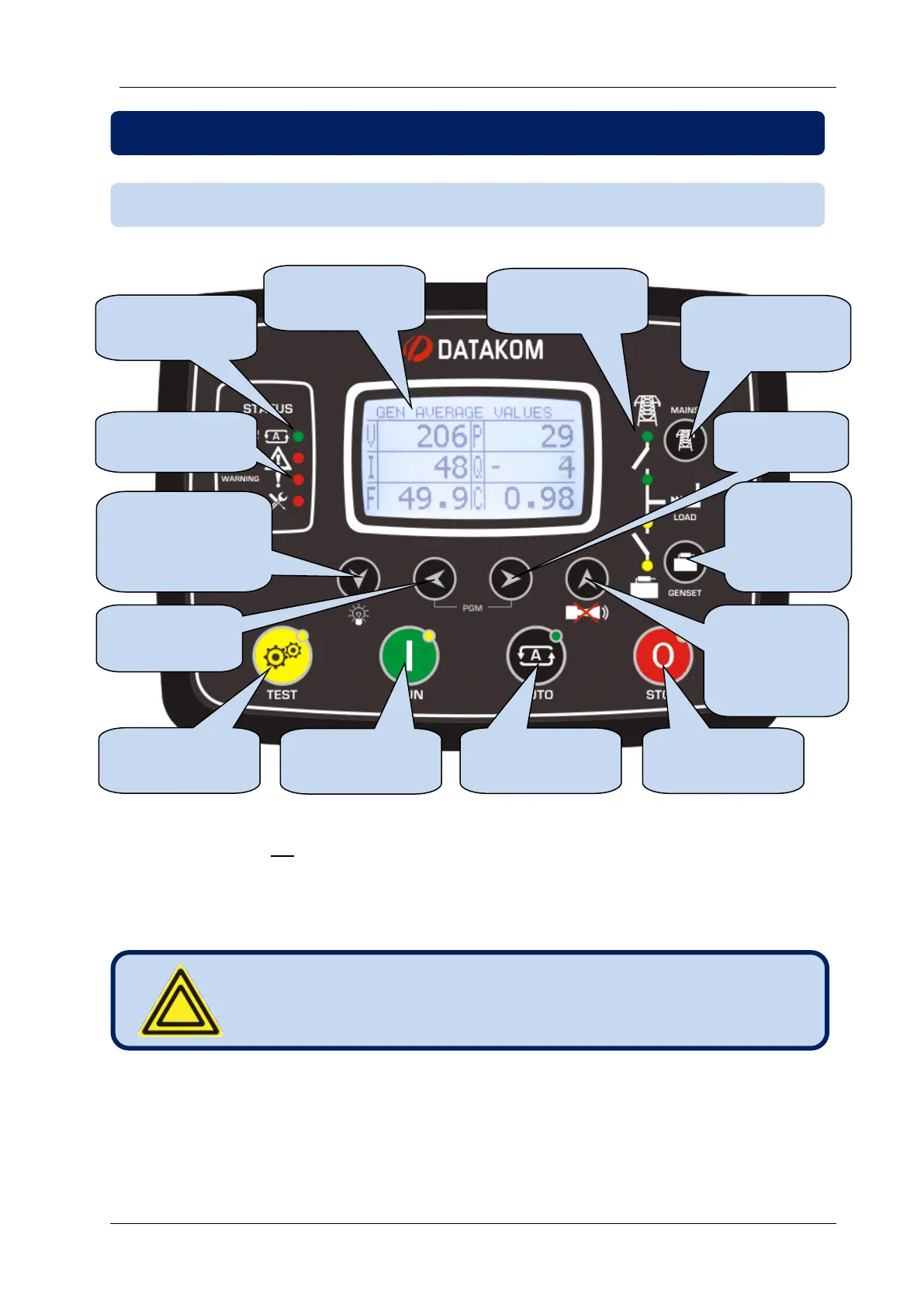

9.1. FRONT PANEL FUNCTIONALITY
9. DESCRIPTION OF CONTROLS
AUTO READY
indicator
Fault condition
indicators
TEST mode
button
RUN mode
button
AUTO mode
button
STOP mode
button
Graphic LCD
screen
Next screen in
the same group.
LAMP TEST if
held pressed
Previous
display group
Next display
group
Previous
screen in the
same group.
ALARM Mute
Mains Contactor
control in RUN
mode
Genset
Contactor
control in
RUN mode
Mimic Diagram
(sysem status)
