Datakom D-700 MK3 - Communication Module; Ethernet Port

D-700 MK3 User Manual Firmware V-16.8
- 40 -
Description:
IEEE802.3 compliant, 100 Base-TX RJ45 ethernet port with indicating
leds
Data rate:
100 Mbits/s, auto detecting
Connector:
RJ45
Cable type:
CAT5 or CAT6
Isolation:
1500 VAC, 1 minute
Max distance:
100m with CAT5 or CAT6 cable
Functionality:
Embedded TCP/IP, Web Server, Web Client, SMTP, e-mail, SNMP,
Modbus TCP_IP
STANDARD ETHERNET CABLE
LED FUNCTIONS:
GREEN: This led turns on when the ethernet link is established (connector inserted)
YELLOW: This led blinks when data transfer occurs inwards or outwards. Periodic blinking will witness
data flow.
4.5.1. ETHERNET PORT
4.5. COMMUNICATION MODULE

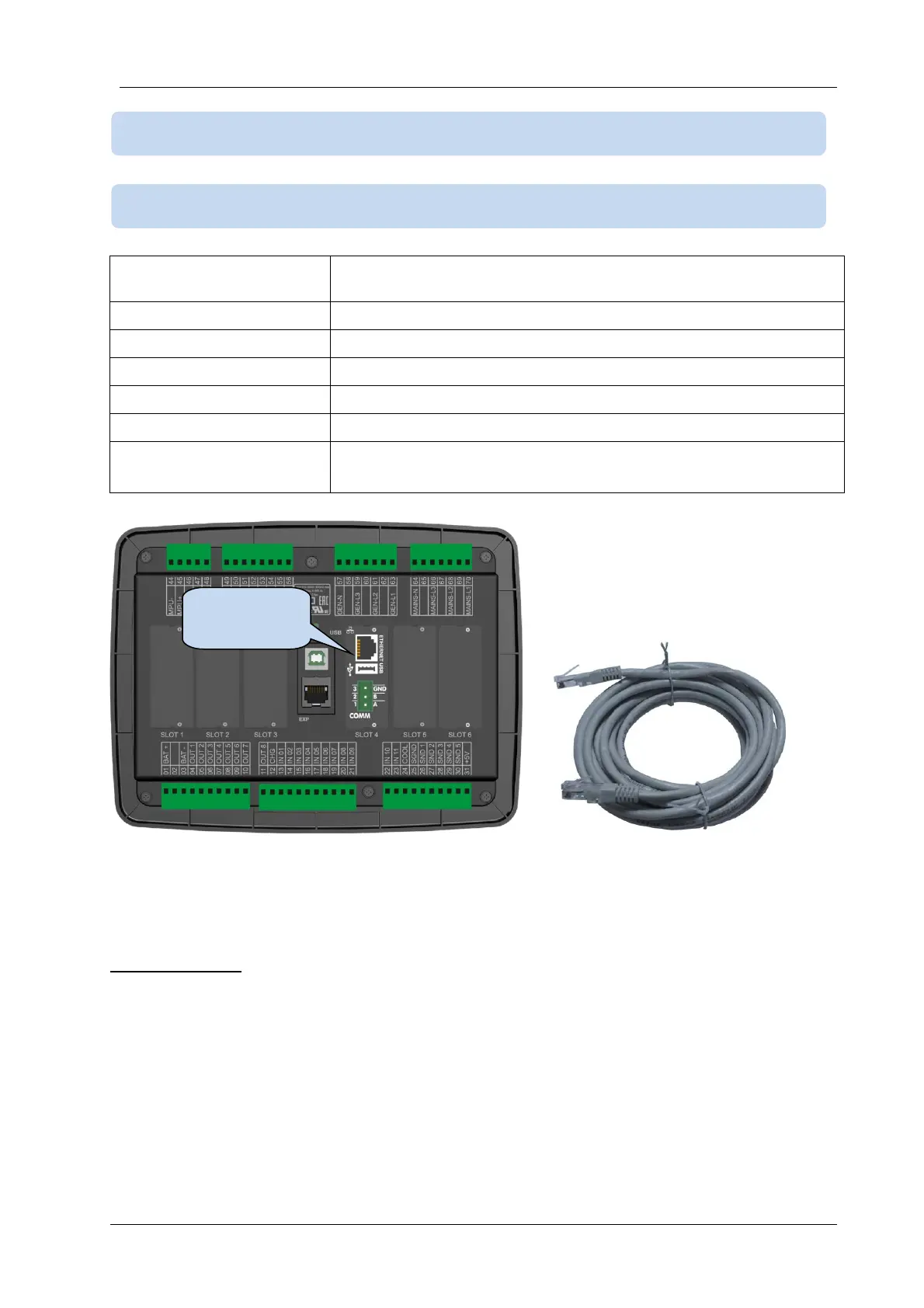

Ethernet
Connector
