D-700 MK3 User Manual Firmware V-16.8
- 43 -
Description:
RS-232
Connector:
DB-9 (9 pins male)
Connection:
5 wires (Rx-Tx-DTR-CxD-GND). Full duplex.
Baud rate:
2400-115200 bauds, selectable
Data type:
8 bit data, no parity, 1 bit stop
Max distance:
15m
Terminal description:
1: CxD input 6: NC
2: Rx input 7:NC
3: Tx output 8: NC
4: DTR output 9: NC
5: GND

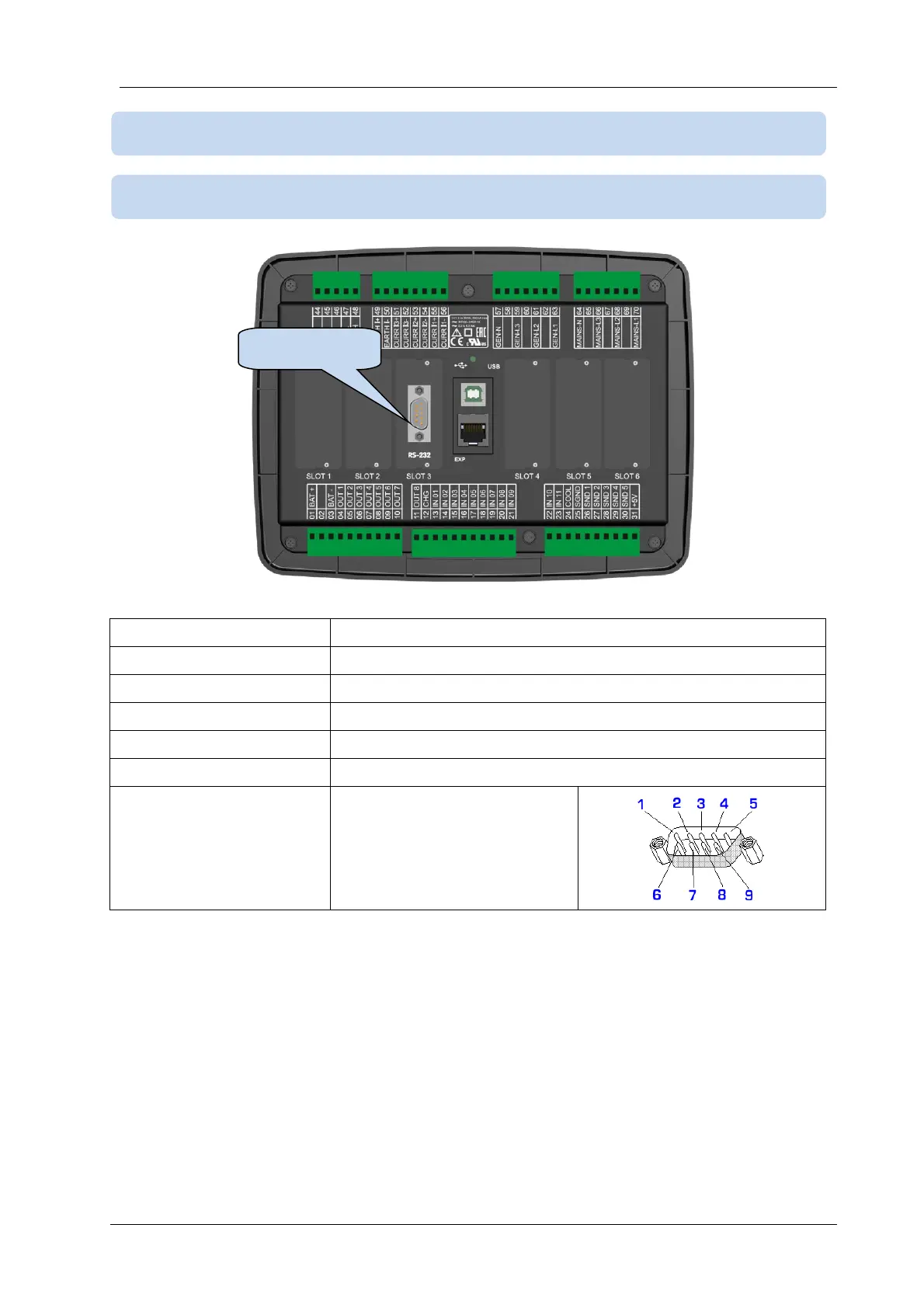

4.6.1. RS-232 MODULE
4.6. RS-232 PLUG-IN MODULE
RS-232 Port
