DPR-400 User Manual Rev_01 Firmware V-1.0
- 13 -

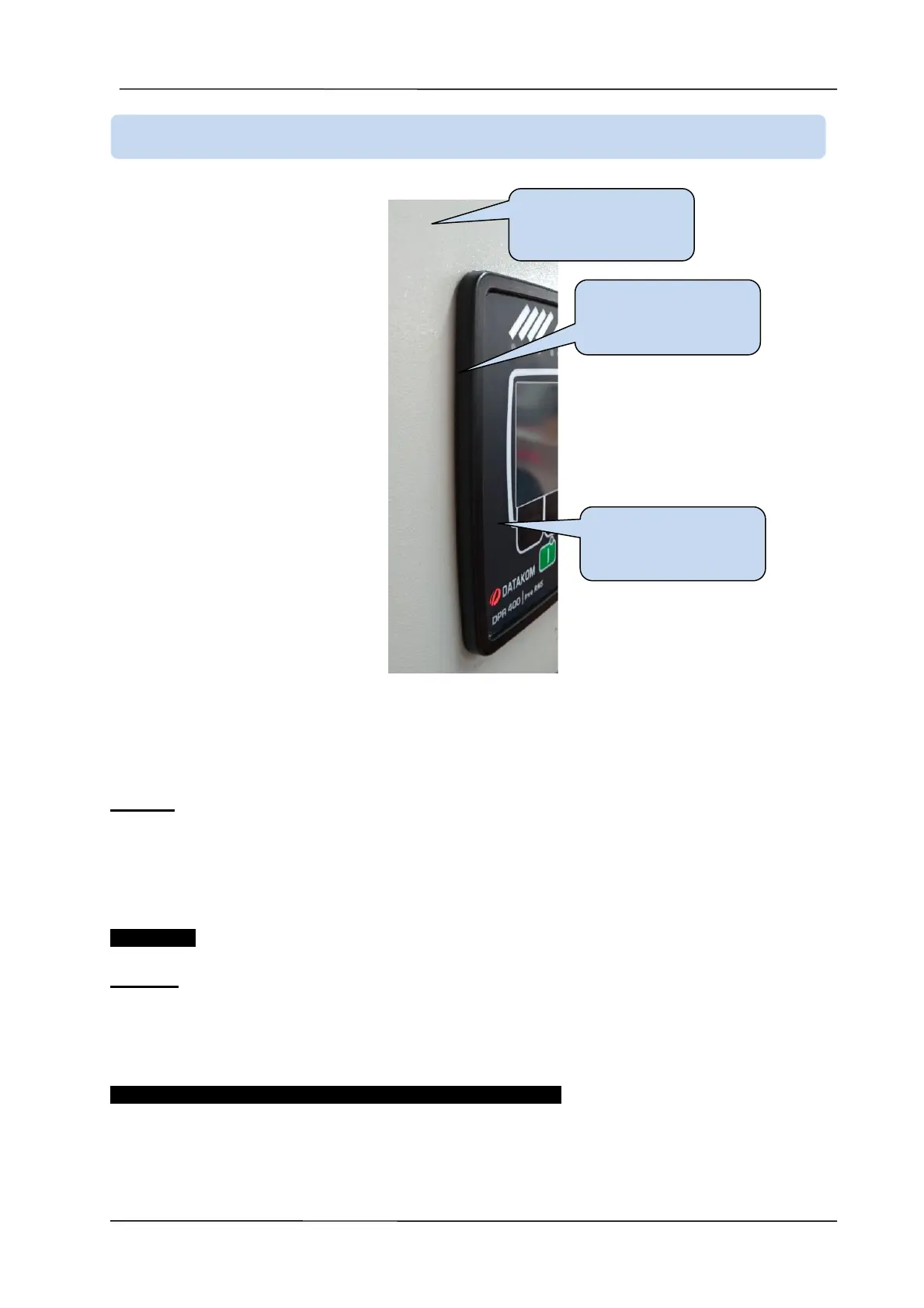

The rubber gasket (sold separately) provides a watertight means of mounting the module to the panel.
With the gasket, IEC 60529-IP65 protection is provided. A short definition of IP protection levels is given
below:
1
st
Digit
0 Not protected
1 Protected against solid foreign objects of 50 mm diameter and greater
2 Protected against solid foreign objects of 12.5 mm diameter and greater
3 Protected against solid foreign objects of 2.5 mm diameter and greater
4 Protected against solid foreign objects of 1.0 mm diameter and greater
5 Protected from the amount of dust that would interfere with normal operation
6 Dust tight
2
nd
Digit
0 Not protected
1 Protected against vertically falling water drops
2 Protected against vertically falling water drops when enclosure is tilted up to 15 °
3 Protected against water sprayed at an angle up to 60 ° on either side of the vertical
4 Protected against water splashed against the component from any direction
5 Protected against water projected in jets from any direction
6 Protected against water projected in powerful jets from any direction
7 Protected against temporary immersion in water
8 Protected against continuous immersion in water, or as specified by user
