The Tilt angle is represented by the value T in Figure 40. Matrix-2000™ can read labels with
any tilt angle.

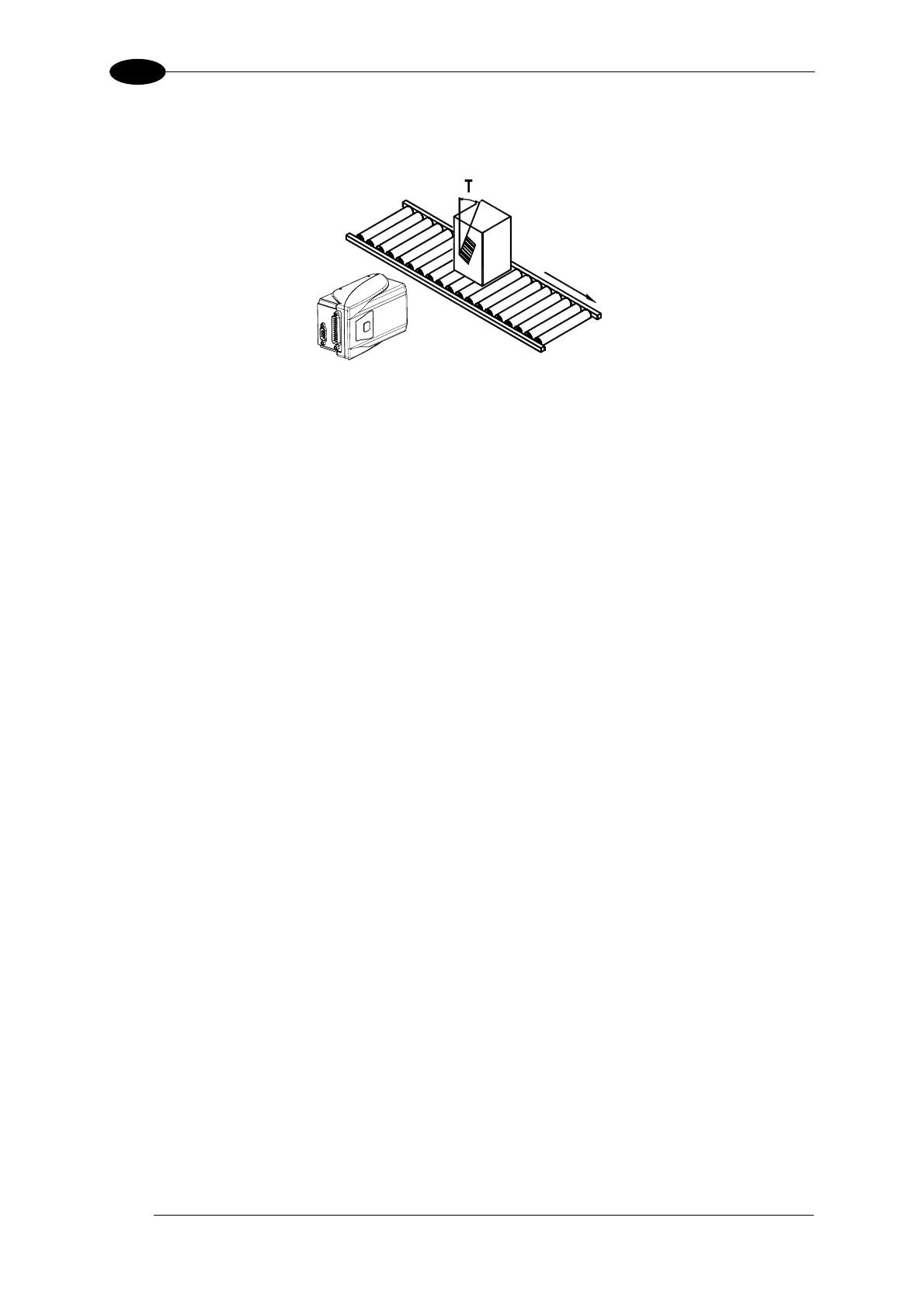

Figure 40 - Tilt angle
Position the reader so that the distance from the reading window to the code surface is that
indicated in par. 7.1 for your model.
