MATRIX-2000™ REFERENCE MANUAL
5

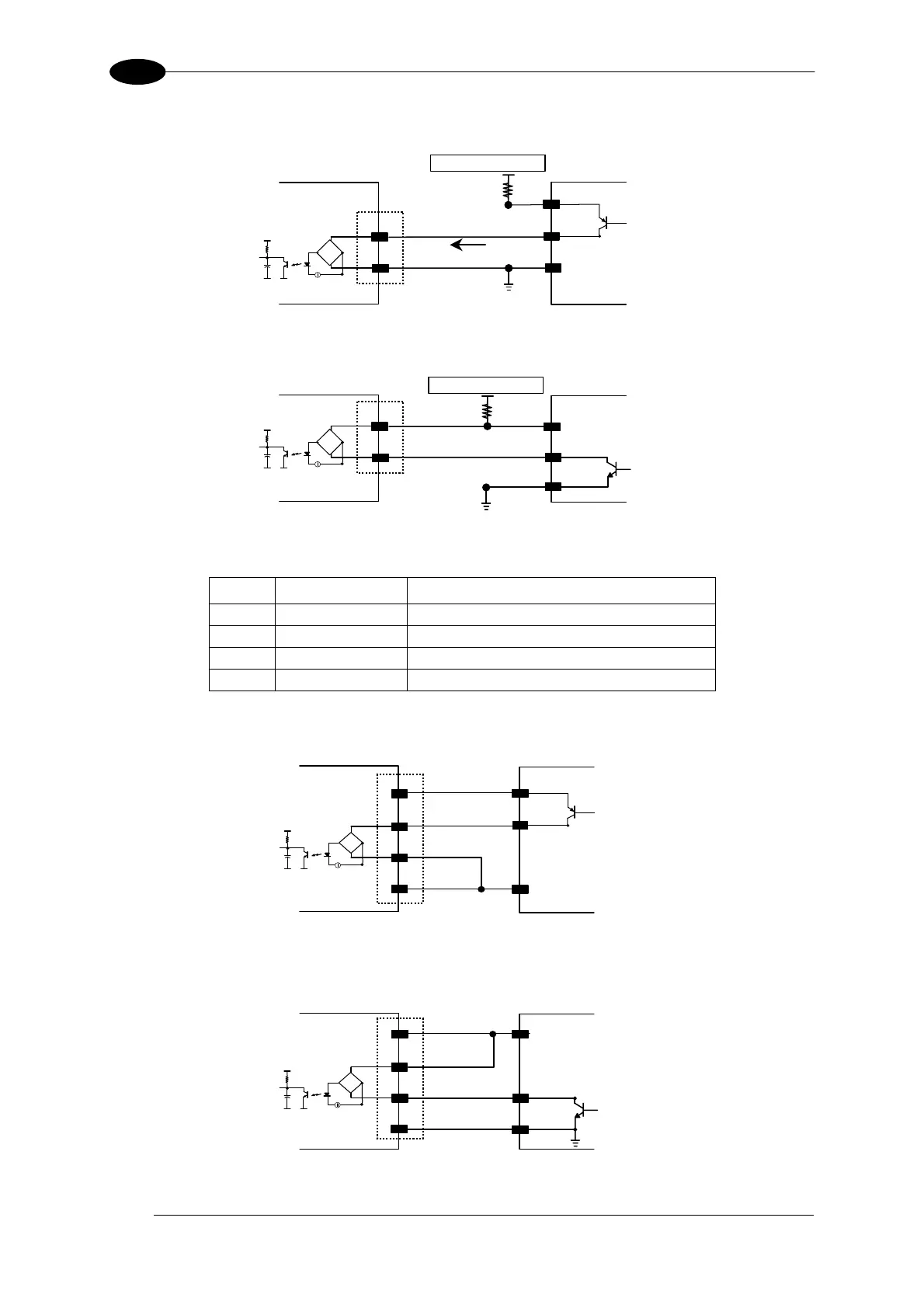

EXTERNAL TRIGGER INPUT CONNECTIONS USING EXTERNAL POWER
Matrix-2000™
EXTERNAL TRIGGER
Vext 30 Vdc max.
18
19
V
CC
~
~
+
-
V
Signal
I1A
I1B
I
in
Figure 78 - External Trigger PNP Using External Power
Matrix-2000™
EXTERNAL TRIGGER
Vext 30 Vdc max.
18
19
Signal
V
V
CC
~
~
+
-
I1A
I1B
Figure 79 - External Trigger NPN Using External Power
Pin Name Function
9 Vdc Power Supply input voltage +
6 I2A Input 2 A (polarity insensitive)
10 I2B Input 2 B (polarity insensitive)
25 GND Power Supply input voltage -
INPUT 2 CONNECTIONS USING MATRIX-2000™ POWER
INPUT DEVICE
Matrix-2000™
6
10
9
25
Ground
V
Signal
V
CC
~
~
+
-
Vdc
GND
I2A
I2B
Figure 80 - Input PNP Using Matrix-2000™ Power
INPUT DEVICE
Matrix-2000™
Signal
6
10
9
25
Ground
V
V
CC
~
~
+
-
Vdc
GND
I2A
I2B
Figure 81 - Input NPN Using Matrix-2000™ Power
54
