Auto Setup (Optional)
At the end of the Auto Learn procedure, you have the possibility to follow the Auto Setup
procedure to set up the reading parameters.
1. Enter the Auto Setup function by holding the X-PRESS™ push button pressed until the
SETUP LED is on.
2. Release the button to enter the Auto Setup function.
3. Once entered, if a barcode label is positioned in front of the scanline, the scanner
automatically performs the optimal setup of the reading parameters for that specific
barcode.
green
green
yellow
yellow
red
READY
GOOD
RIGGER
COM
STATUS
SETUP
LEARN
EST

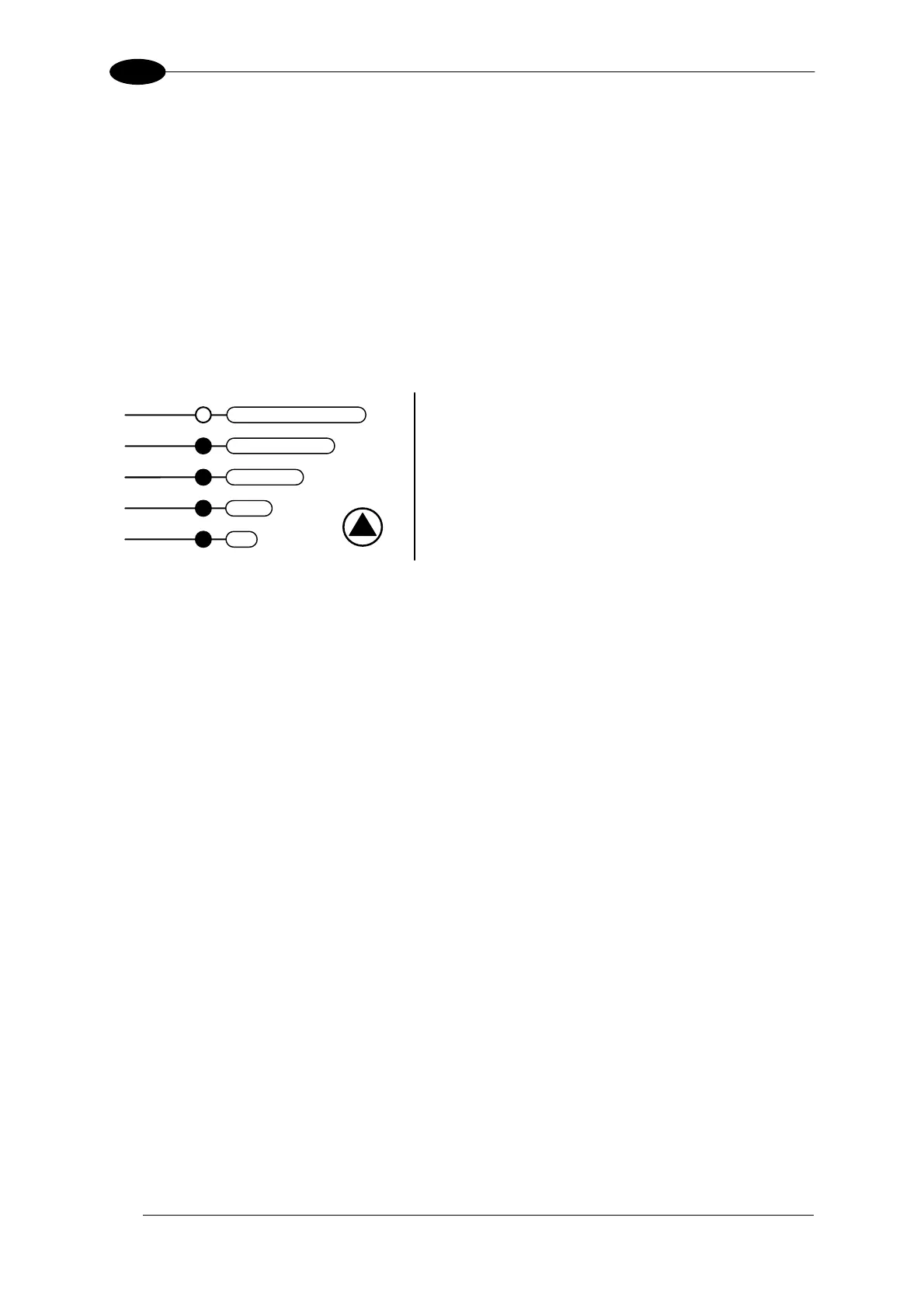

Figure 7 – X-PRESS™ Interface: Auto Setup Function
The procedure is as follows:
A) place the desired barcode on the
scanline.
B) enter the AutoSetup function (the
laser turns on and the SETUP
LED blinks to indicate the ongoing
process)
C) wait until the SETUP LED stays
steady on (indicating the reader
has detected the barcode)
This procedure ends either when the barcode is successfully decoded or after a timeout of
about 7 (seven) seconds.
The scanner will restart at the end of the process, and then the optimized reading
parameters for that barcode are automatically configured in scanner memory.
