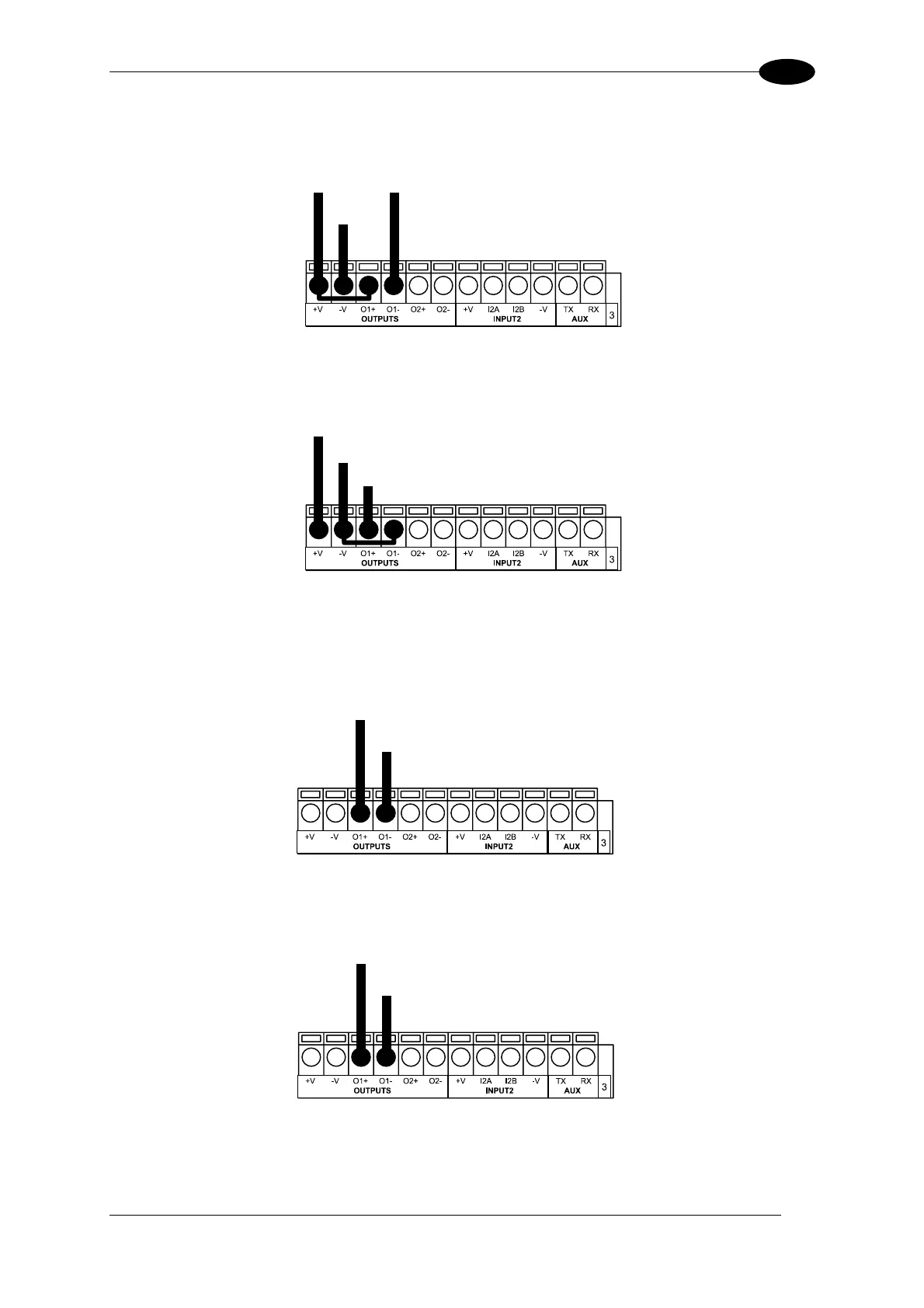

CBX ELECTRICAL CONNECTIONS

OUTPUT CONNECTIONS USING DS4800 POWER

Power to Output

Output device Signal

Output device

Reference

Output Device

Figure 40 - Open Emitter Output Using DS4800 Power

Power to

Output device

Reference

Output Device

Output

Signal

Figure 41 - Open Collector Output Using DS4800 Power

OUTPUT CONNECTIONS USING EXTERNAL POWER

Pulled up to External

Output Device Power

Output

Signal

Output Device

Figure 42 - Open Emitter Output Using External Power

Pulled down to External

Output Device Reference

Output

Signal

Output Device

Figure 43 - Open Collector Output Using External Power

max = 30 Vdc

I max = 40 mA continuous
