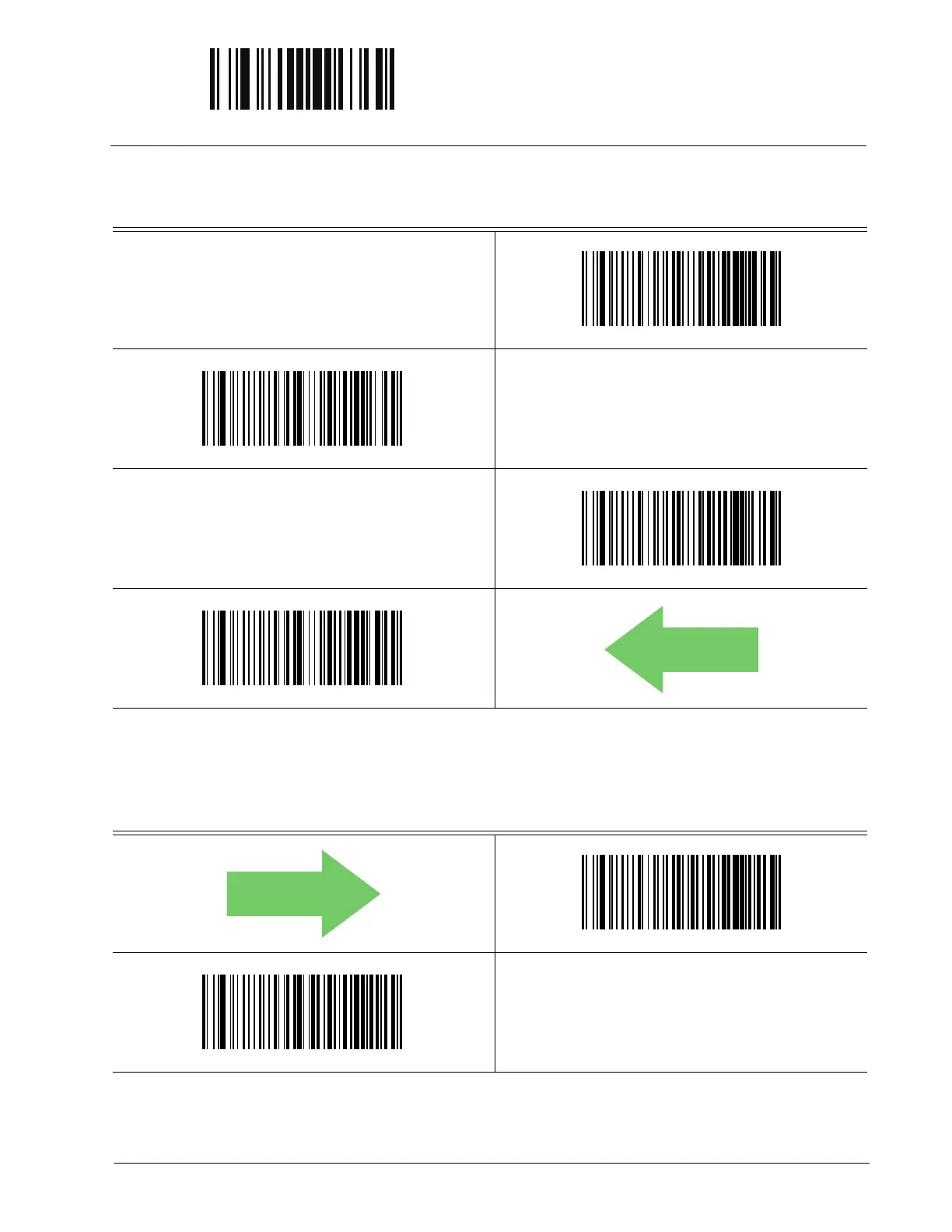

ENTER/EXIT PROGRAMMING MODE Codabar Start/Stop Character Set

Product Reference Guide 199

Codabar Start/Stop Character Set

This option specifies the format of transmitted Codabar start/stop characters

Codabar Check Character Set = ABCD/TN*E

Codabar Check Character Set = ABCD/ABCD

Codabar Check Character Set = abcd/tn*e

Codabar Check Character Set = abcd/abcd

DEFAULT

Codabar Start/Stop Character Match

When enabled, this option requires that start and stop characters match

DEFAULT

Codabar Start/Stop Character Match = Don’t Require Match

Codabar Start/Stop Character Match = Require Match
