To Next Page

To Previous Page

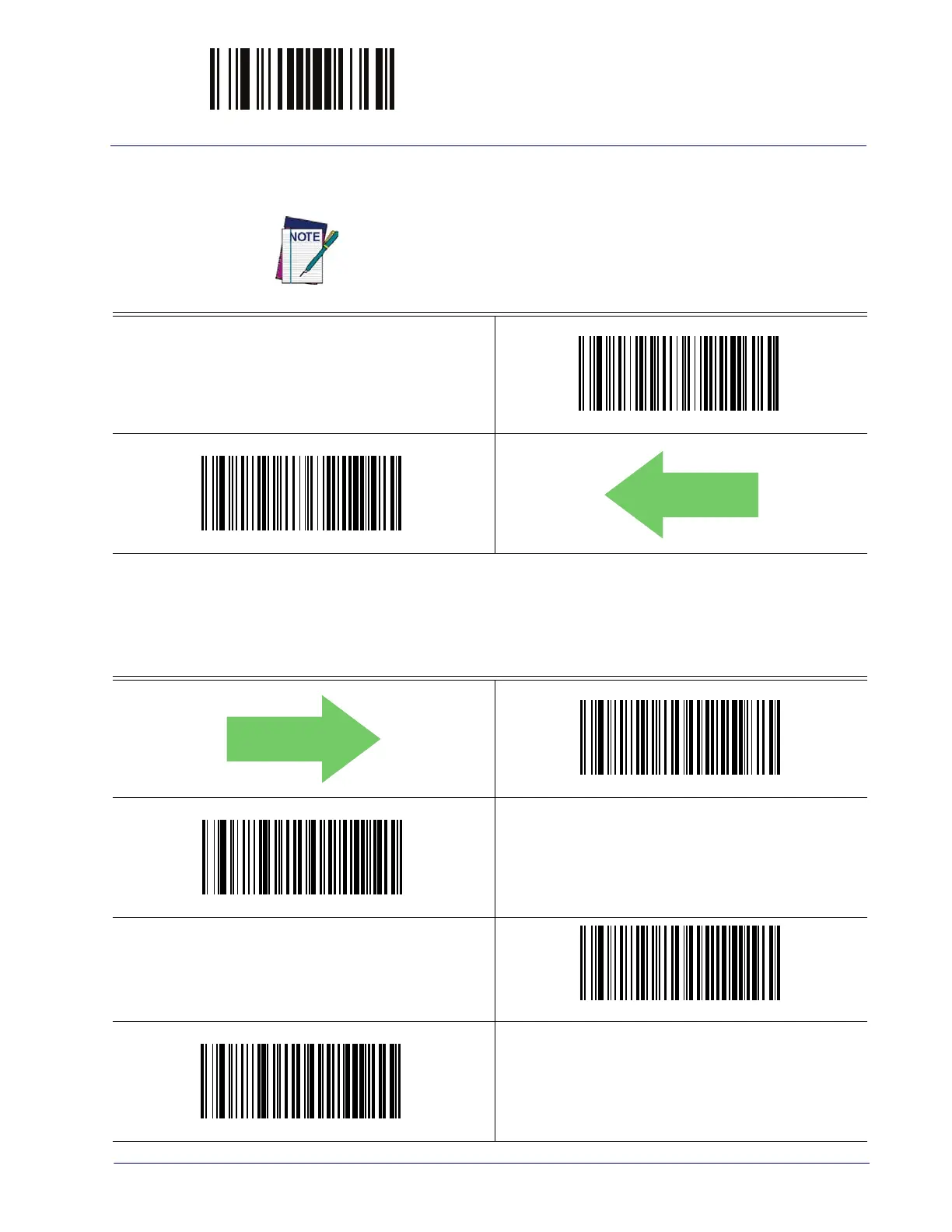

ENTER/EXIT PROGRAMMING MODE Wand Idle State

Product Reference Guide 75

Wand Idle State

This feature specifies the level of the Wand output signal when the reader is idle.

Wand Idle State = Low

Wand Idle State = High

DEFAULT

TTL logic levels:



0V <= Low <= 0.7V



2.4V <= High <= 5.25V

Transmit Noise

This option specifies the leading/trailing noise for the Wand interface.

DEFAULT

Transmit Noise = Disable

Transmit Noise = Transmit leading noise

Transmit Noise = Transmit trailing noise

Transmit Noise = Transmit leading and trailing noise
