Models
Scanner and scanner/scale models (reference Figure 2-1) are available in
different lengths, allowing them to fit with little or no modification into
openings cut for previously installed scanners such as Datalogic
®
Magel-
lan
®
scanners, or NCR
®
scanner models 7820/24 and 7870. Other mod-
els are designed for applications with smaller footprint requirements.
Figure 2-1 provides simplified illustrations of short, medium and long
models. The appearance of your unit may vary. Scanner/scale models also
offer an option for a raised Produce Rail, or a flip-up Produce Bar as
shown in Figure 2-3.

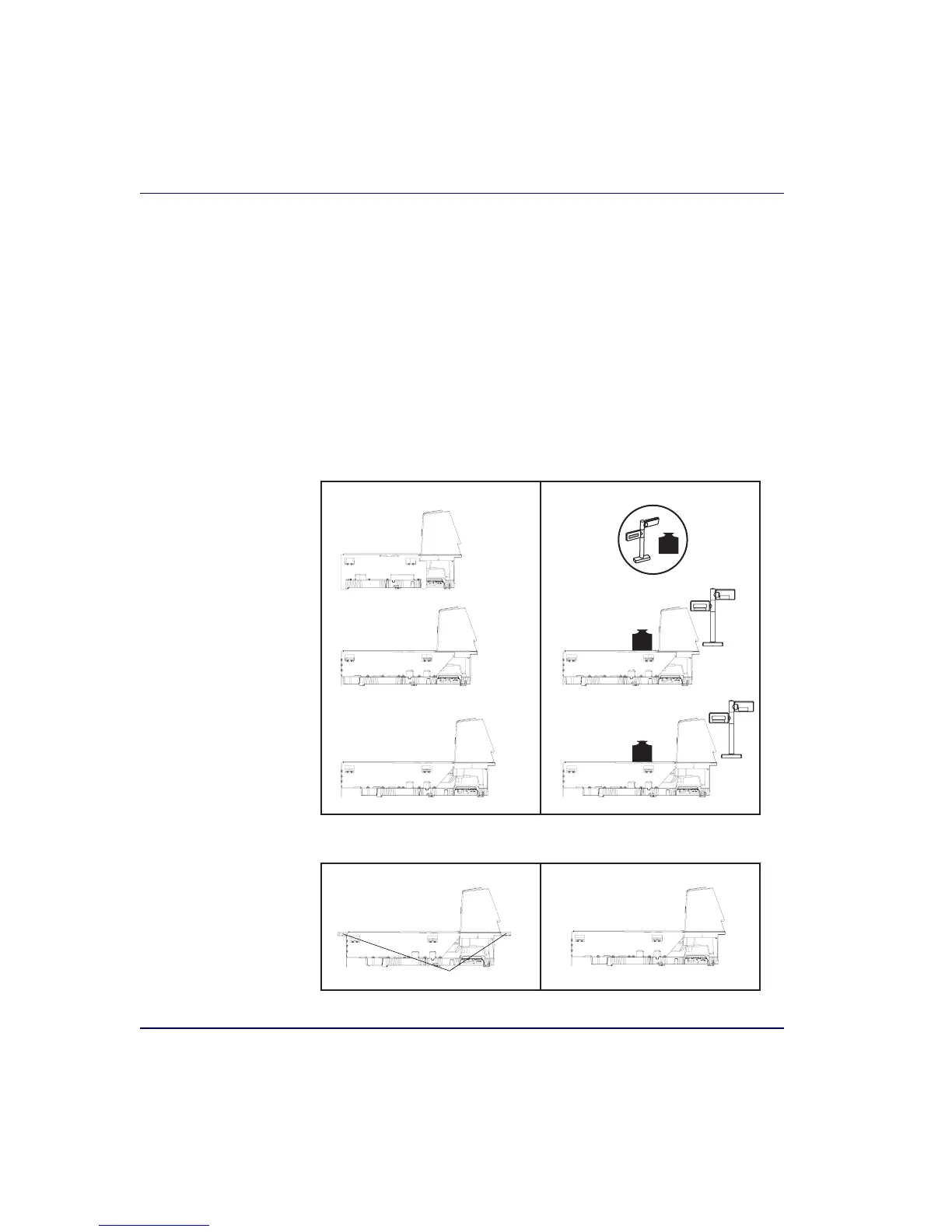

Figure 2-1. Model Examples
Figure 2-2. Flanged and Shelf Model Examples
Short
Medium
Long
Model 8301/8401
Model 8302/8402
Model 8303/8403
Scanner ONLY models Scanner/Scale models
Medium
Long
Model 8304/8404
Model 8305/8405
Flange Model Shelf Model
Flanges
