Datalogic Memor 10 User Manual

Datalogic Applications
User’s Manual 111
Data Logging
The data logging feature allows to collect, store, display and analyze
minute-by-minute battery data.

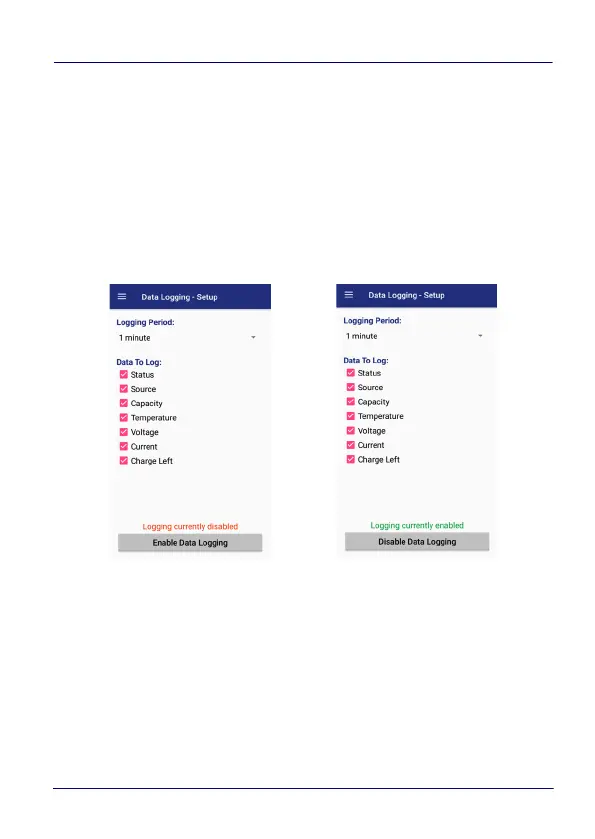

Setup
Use the Setup window to select the data you want to log.
The data logging is disabled by default. To enable it, tap Enable Data
Logging. When enabled, the log is always running, even when the
device is in suspend mode.

Datalogic Memor 10 Specifications

General

Display diagonal	5 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	720 x 1280 pixels
RFID reader	-
Certification	EU RoHS
Product color	Black
International Protection (IP) code	IP65
2D (matrix & stacked) barcodes supported	Intelligent Mail, Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Data network	LTE
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Operating frequency	2400 / 5000 MHz
Operating system version	8.1
Operating system installed	Android
Internal memory	0.032 GB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Number of cores	8
Processor frequency	2 GHz
Second camera	No
Rear camera resolution (numeric)	13 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Battery voltage	3.8 V
Battery capacity	4100 mAh
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	18.7 mm
Width	78 mm
Height	155 mm
Weight	285 g
