Datalogic Memor 10 User Manual

Settings
User’s Manual 73

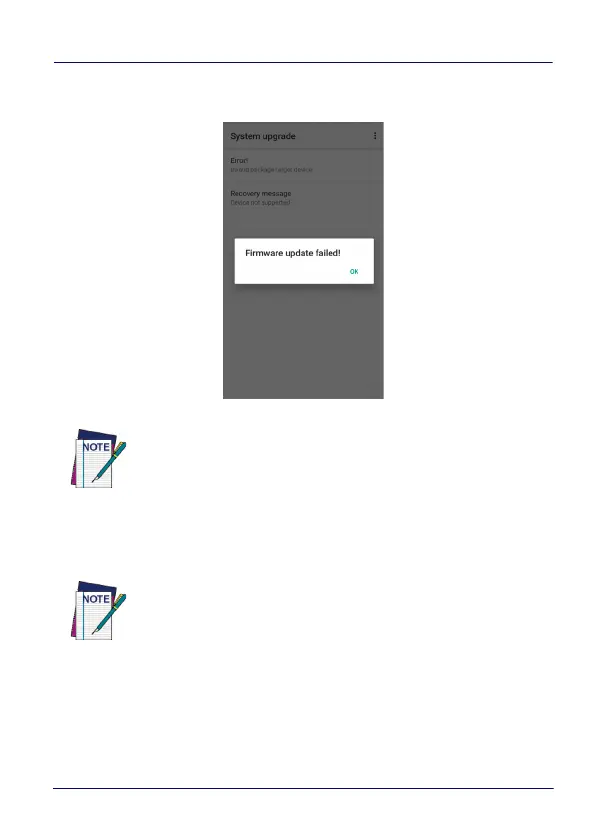

If the update fails, the screen will display a failure message and a
report showing the reasons for failure:
NOTE
During the update, ensure that:
• battery level is more than 20% if the Memor 10 is not
connected to a power source;
or
• battery level is more than 15% if the Memor 10 is
connected to a power source (USB or dock).
NOTE
Update is always done in recovery mode (see Recovery
Mode on page 74
).

Datalogic Memor 10 Specifications

General

Display diagonal	5 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	720 x 1280 pixels
RFID reader	-
Certification	EU RoHS
Product color	Black
International Protection (IP) code	IP65
2D (matrix & stacked) barcodes supported	Intelligent Mail, Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Data network	LTE
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Operating frequency	2400 / 5000 MHz
Operating system version	8.1
Operating system installed	Android
Internal memory	0.032 GB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Number of cores	8
Processor frequency	2 GHz
Second camera	No
Rear camera resolution (numeric)	13 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Battery voltage	3.8 V
Battery capacity	4100 mAh
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	18.7 mm
Width	78 mm
Height	155 mm
Weight	285 g
