Datalogic Memor 10 User Manual

Settings
User’s Manual 81

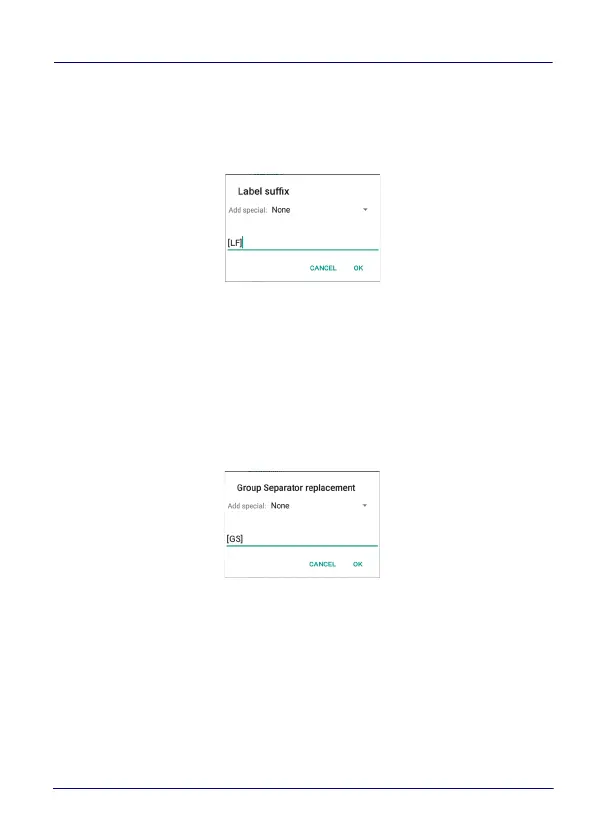

Label Suffix
Tap Label suffix to enter the characters you will be using as suffix.
Tap Add special to select a special character to be added in the
current cursor position:
Group Separator Replacement
The Group Separator replacement is a non printable data separator
character (ASCII code 1D hex). Tap Group Separator replacement to
enter a string that will be used as GS data separator substituting
the standard GS character.
Tap Add special to select a special character to be added in the
current cursor position:
Remove Non-Printable Characters
Select it to remove non-printable characters from a unicode string.

Datalogic Memor 10 Specifications

General

Display diagonal	5 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display resolution	720 x 1280 pixels
RFID reader	-
Certification	EU RoHS
Product color	Black
International Protection (IP) code	IP65
2D (matrix & stacked) barcodes supported	Intelligent Mail, Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Data network	LTE
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Operating frequency	2400 / 5000 MHz
Operating system version	8.1
Operating system installed	Android
Internal memory	0.032 GB
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Number of cores	8
Processor frequency	2 GHz
Second camera	No
Rear camera resolution (numeric)	13 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Battery voltage	3.8 V
Battery capacity	4100 mAh
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	18.7 mm
Width	78 mm
Height	155 mm
Weight	285 g
