Datalogic Memor X3 - Replacing the Battery Pack

1 MEMOR™ X3
12
2

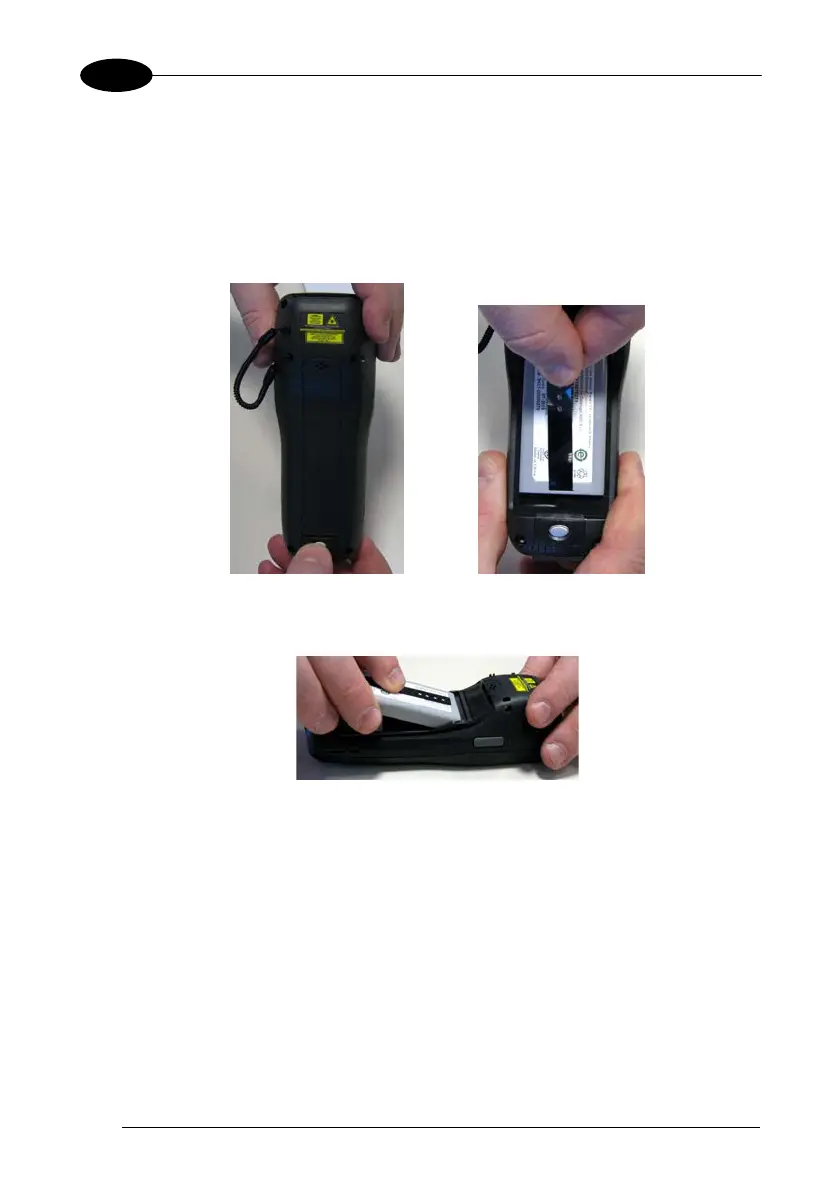

2.2 REPLACING THE BATTERY PACK
To correctly replace the battery pack, proceed as follows.
1. Turn off the Memor X3 .
2. Press the latch release button and pull the latch down; then remove the battery
cover:
3. Install the new battery pack, first insert the upper side (contacts), then the
bottom side of the battery pack into the slot:
