Datalogic Memor X3 User Manual

USE AND FUNCTIONING
33
4
4.2.2 Imager Data Capture
The Memor X3 Imager captures a picture of the entire bar code. The omni-directional
scanning does not require that the operator orient the bar code to align with the scan
pattern.
To read a 1D or 2D code, simply point the Memor X3 Imager model onto the code
and press the SCAN Key or the pistol trigger.

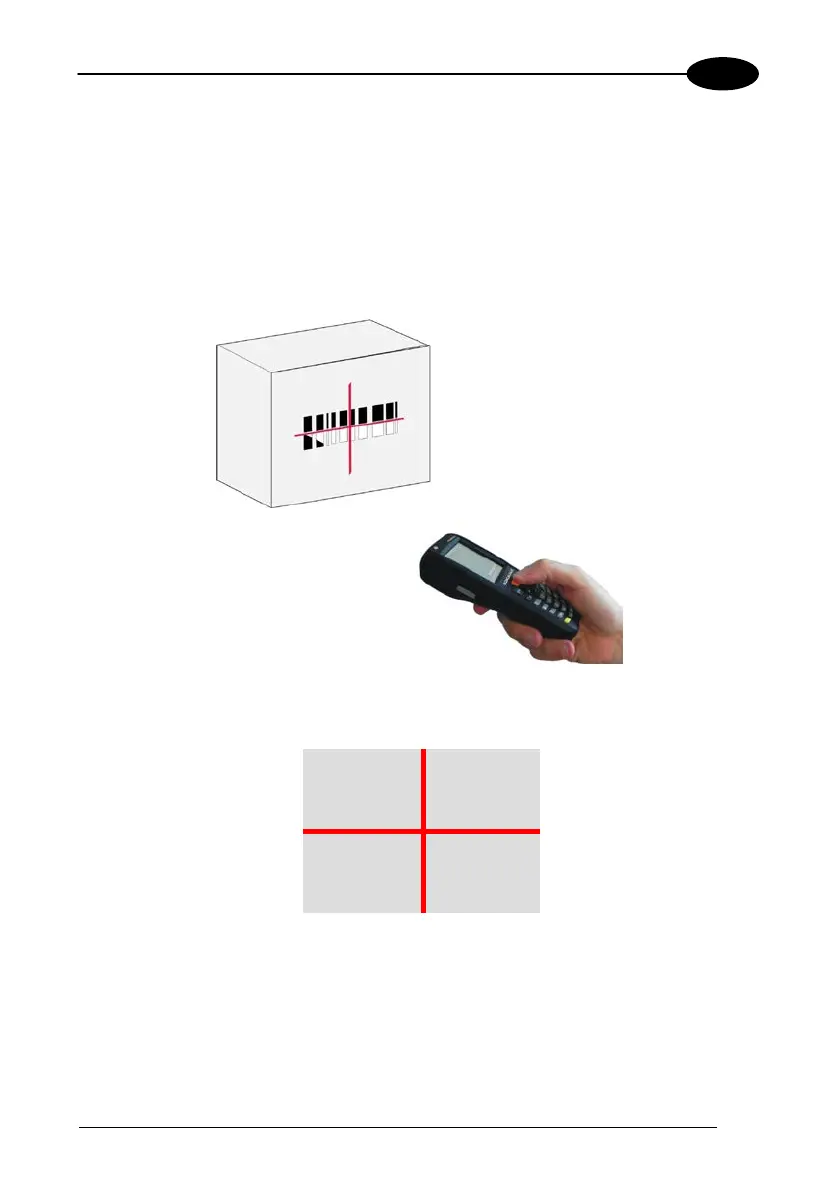

The Memor X3 Imager uses an intelligent aiming system pattern, indicating the field
of view, which should be positioned over the code:
Aiming System

Datalogic Memor X3 Specifications

General

Display Size	2.4 inches
RAM	256 MB
Processor	XScale PXA310 @ 806 MHz
Storage	512 MB
Operating System	Windows CE 6.0
Battery Capacity	1430 mAh
Connectivity	Wi-Fi, Bluetooth v2.1
Scanner	2D Imager
Battery Options	Standard and High Capacity
Protection	IP54
Drop Specification	Withstands drops from 1.2 meters
Operating Temperature	-10 to 50 °C
Storage Temperature	-20 to 70 °C
