1 MEMOR™ X3
34
4

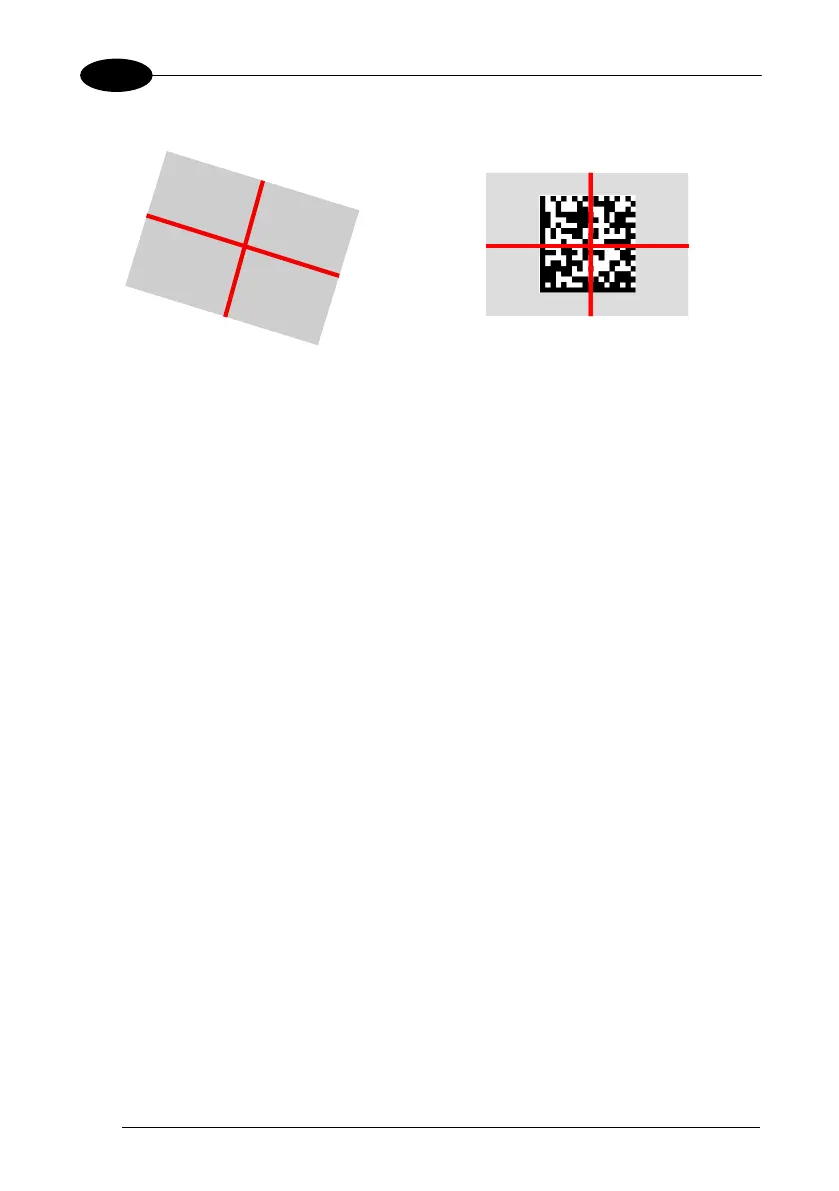

Linear barcode
2D Matrix symbol
ÌBX3ÉÎ
Relative Size and Location of Aiming System Pattern
The field of view changes its size as you move the reader closer or farther away from
the code. The field of view indicated by the aiming system pattern will be smaller
when the Memor X3 Imager is closer to the code and larger when it is farther from
the code.
Symbologies with smaller bars or elements (mil size) should be read closer to the
unit. Symbologies with larger bars or elements (mil size) should be read farther from
the unit. (See par. 5.1 for further details).
If the scan has taken place correctly:
− the Good Read LED glows steadily Green for a configurable time;
− if enabled, the Good Read Beep plays;
− if enabled, the GreenSpot projects a green spot onto the bar code image.

Datalogic Memor X3 Specifications

General

Display Size	2.4 inches
RAM	256 MB
Processor	XScale PXA310 @ 806 MHz
Storage	512 MB
Operating System	Windows CE 6.0
Battery Capacity	1430 mAh
Connectivity	Wi-Fi, Bluetooth v2.1
Scanner	2D Imager
Battery Options	Standard and High Capacity
Protection	IP54
Drop Specification	Withstands drops from 1.2 meters
Operating Temperature	-10 to 50 °C
Storage Temperature	-20 to 70 °C
