Symbologies

134 PowerScan

PD7100 Corded

EAN 13

The following options apply to the EAN 13 (Jan 13) symbology.

EAN 13 Enable/Disable

When disabled, the reader will not read EAN 13/JAN 13 barcodes.

EAN 13 Check Character Transmission

Enable this option to transmit the check character along with EAN 13 barcode data.

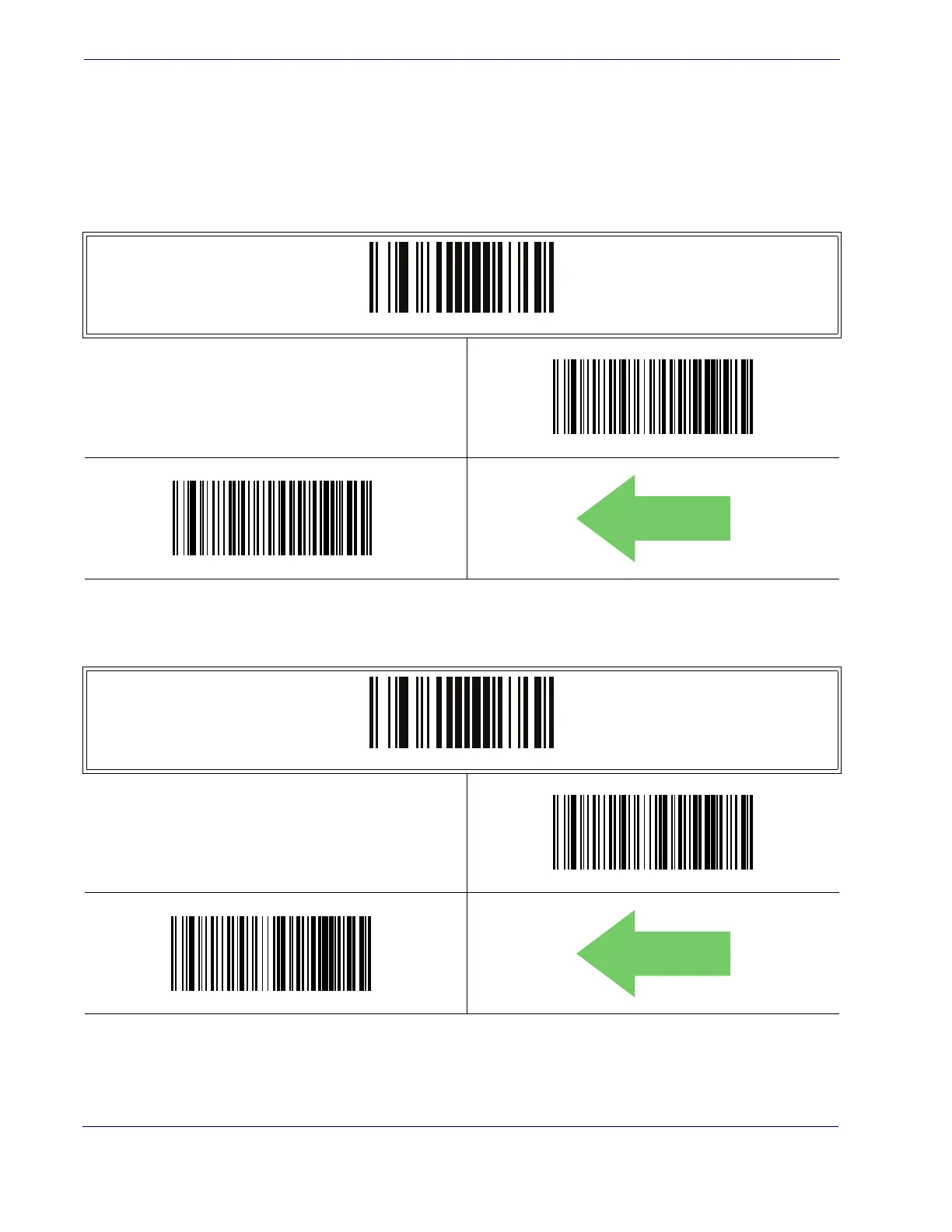

ENTER/EXIT PROGRAMMING MODE

EAN 13 = Disable

EAN 13 = Enable

DEFAULT

ENTER/EXIT PROGRAMMING MODE

EAN 13 Check Character Transmission = Don’t Send

EAN 13 Check Character Transmission = Send

DEFAULT
