Symbologies

188 PowerScan

PD7100 Corded

Code 128 — cont.

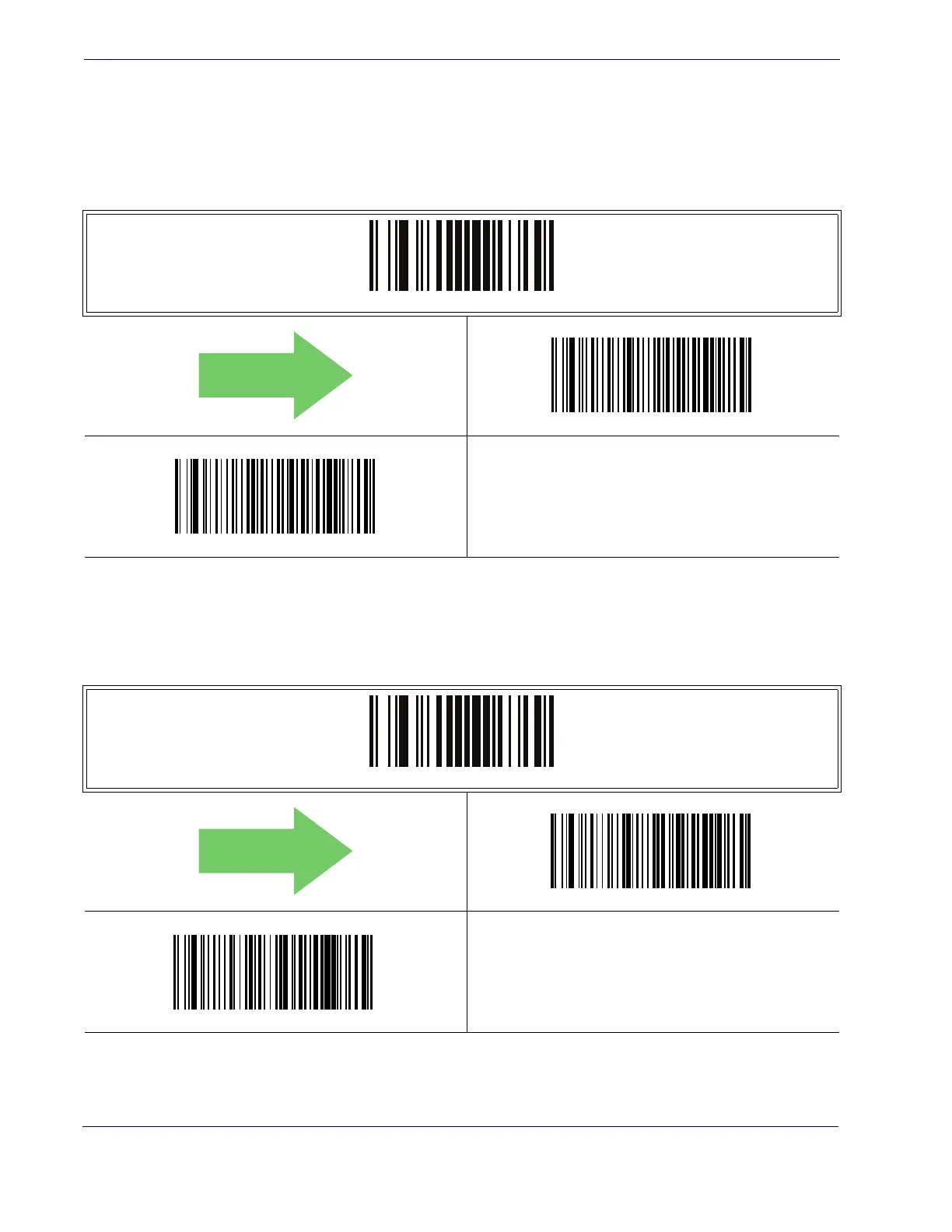

Expand Code 128 to Code 39

This feature enables/disables expansion of Code 128 labels to Code 39 labels.

Code 128 Check Character Transmission

Enable this option to transmit the check character along with Code 128 barcode data.

ENTER/EXIT PROGRAMMING MODE

Code 128 to Code 39 = Don’t Expand

Code 128 to Code 39 = Expand

DEFAULT

ENTER/EXIT PROGRAMMING MODE

Code 128 Check Character Transmission = Don’t Send

Code 128 Check Character Transmission = Send

DEFAULT
